Chapter 12 Description of Parameter Settings
ME300
12.1-02-4
Example:
If Pr.02-00 = 1: multi-function input terminal MI1 = FWD / STOP,
multi-function input terminal MI2 = REV / STOP.
If Pr.02-00 = 2: multi-function input terminal MI1 = RUN / STOP,
multi-function input terminal MI2 = FWD / REV.
 If Pr.02-00 is set to three-wire operation control, terminal MI3 is for the STOP contact. The
function set previously for this terminal is automatically invalid.
Summary of function settings
Take the normally opened contact (N.O.) for example, ON: contact is closed, OFF: contact is open.

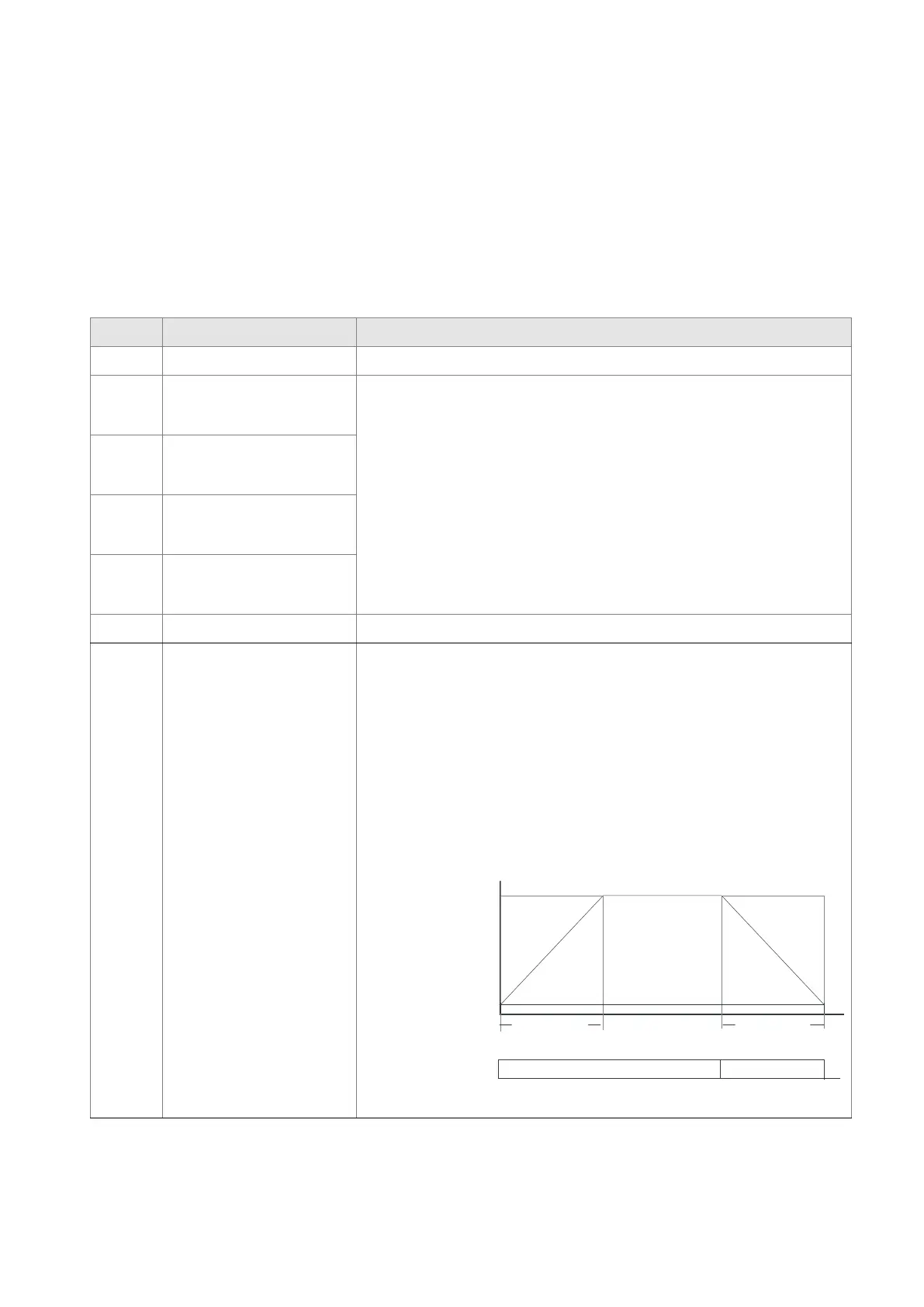

Settings Functions Descriptions
0 No function
1
Multi-step speed
command 1
You can set 15 steps of speed or 15 positions with the digital
status of these 4 terminals. You can use 16-steps of speed if
you include the master speed when setting as 15 steps of
speed (refer to Parameter Group 04
Multi-step Speed
Parameters).
2
Multi-step speed
command 2
3
Multi-step speed
command 3
4
Multi-step speed
command 4
5 Reset Use this terminal to reset the drive after clearing a drive fault.
6 JOG operation
This function is valid when the source of the operation command
is the external terminals.
The JOG operation executes when the drive stops completely.
While running, you can still change
the operation direction, and
the STOP key on the keypad is valid.
Once the external terminal receives the
OFF command, the
motor stops in the JOG deceleration time. Refer to Pr.01-20–01-
22 for details.
Pr.01-20
Pr.01
-21
ON
OFF
MIx
-
GND
Pr.01
-
22
JOG
Pr.01
-
07
Min. output frequency
JOG accel. time
JOG decel. time
Mix: external terminal
