Chapter 12 Description of Parameter Settings
ME300
Settings Functions Descriptions
34
Zero speed includes
stop (output frequency)
Active when the output frequency is 0 or stopped.
35
Error output selection 1
(Pr.06-23)
Active when Pr.06-23 is ON.
36
Error output selection 2
(Pr.06-24)
Active when Pr.06-24 is ON.
37
Error output Selection 3
(Pr.06-25)
Active when Pr.06-25 is ON.
38
Error output Selection 4
(Pr.06-26)
Active when Pr.06-26 is ON.
40
Speed reached
(including Stop)
Active when the output frequency reaches the setting frequency
or stopped.
42 Crane function
Use this function with Pr.02-34 and Pr.02-58.
Refer to Pr.02-34 and Pr.02-58 for details.
43 Motor speed detection Active when motor speed is less than Pr.02-47.
44 Low current output Use this function with Pr.06-71–Pr.06-73.

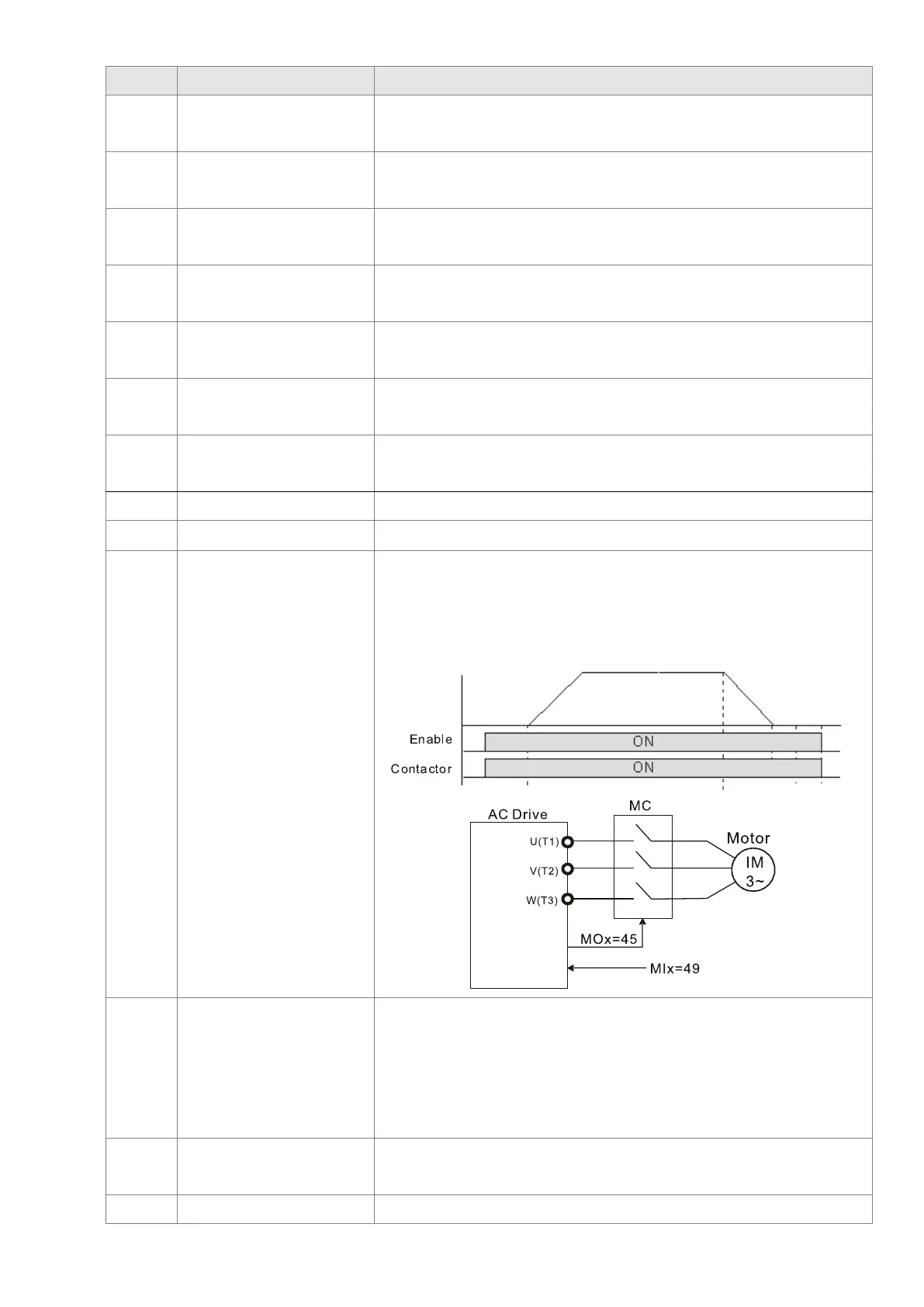

45
UVW output
electromagnetic valve
ON / OFF switch
Use this function with external terminal input = 49 (drive
enabled) and external terminal output = 45 (electromagnetic
valve enabled), and then the electromagnetic valve is ON or
OFF according to the status of the drive.
46 Master dEb output
When dEb rises at the master, MO sends a dEb signal to the
slave. Output the message when the master triggers dEb. This
ensures that the slave also triggers dEb. Then slave follows the
deceleration time of the master to stop simultaneously with the
master.
51
Analog output control
for RS-485 interface
For RS-485 communication control output.
53 Fire mode indication Activates when MI setting 58 or 59 is enabled.
