Chapter 12 Description of Parameter Settings
ME300
12.1-02-18

02-24
Desired Frequency Reached 2
Default: 60.00 / 50.00
Settings 0.00–599.00 Hz

02-25
The width of the desired frequency reached 2
Default: 2.00
Settings 0.00–599.00 Hz

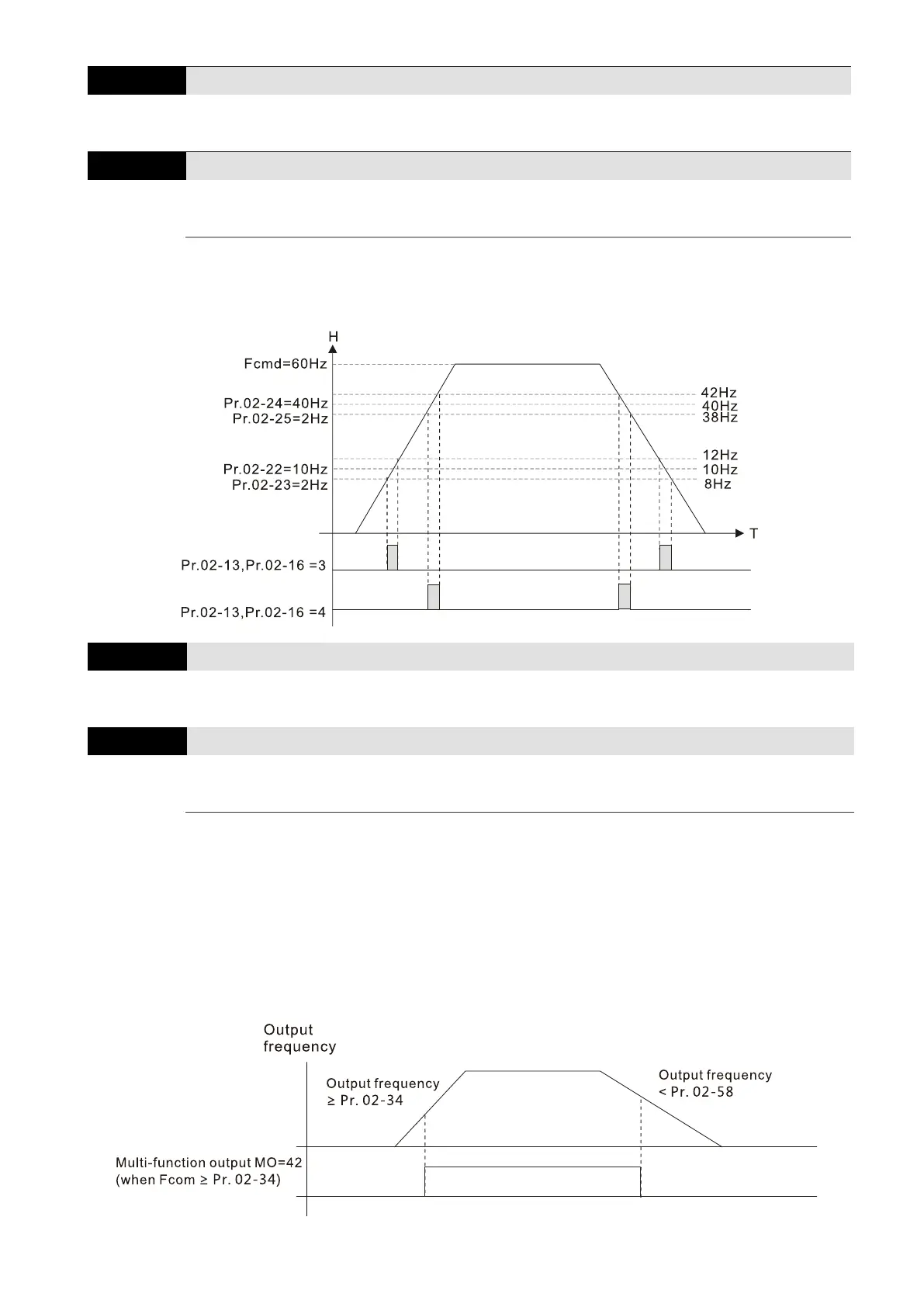

 Once the output speed (frequency) reaches the desired speed (frequency), if the corresponding
multi-function output terminal is set to 3 or 4 (Pr.02-13 and Pr.02-16), this multi-function output
terminal is “closed”.

02-34
Output Frequency Setting for Multi-function Output Terminal
Default: 0.00
Settings 0.00–599.00 Hz

02-58
Multi-function Output Terminal: Function 42: Brake Frequency Check Point
Default: 0.00
Settings 0.00–599.00 Hz
 You can use Pr.02-34 with Pr.02-58 for the crane function. You can choose the crane action # 42
to set the multi-function outputs Pr.02-13 and Pr.02-16.
 When the output frequency of the drive is higher than the setting for Pr.02-34 frequency level
(≥ Pr.02-34), choose # 42 to set the multi-function output terminal.
 When the output frequency is lower than the setting for Pr.02-58 (< Pr.02-58), choose # 42 to
disable the multi-function output terminal.
 Crane application example:
