Delta ME300 Series - Page 249

Chapter 12 Description of Parameter Settings
ME300
12.1-02-22

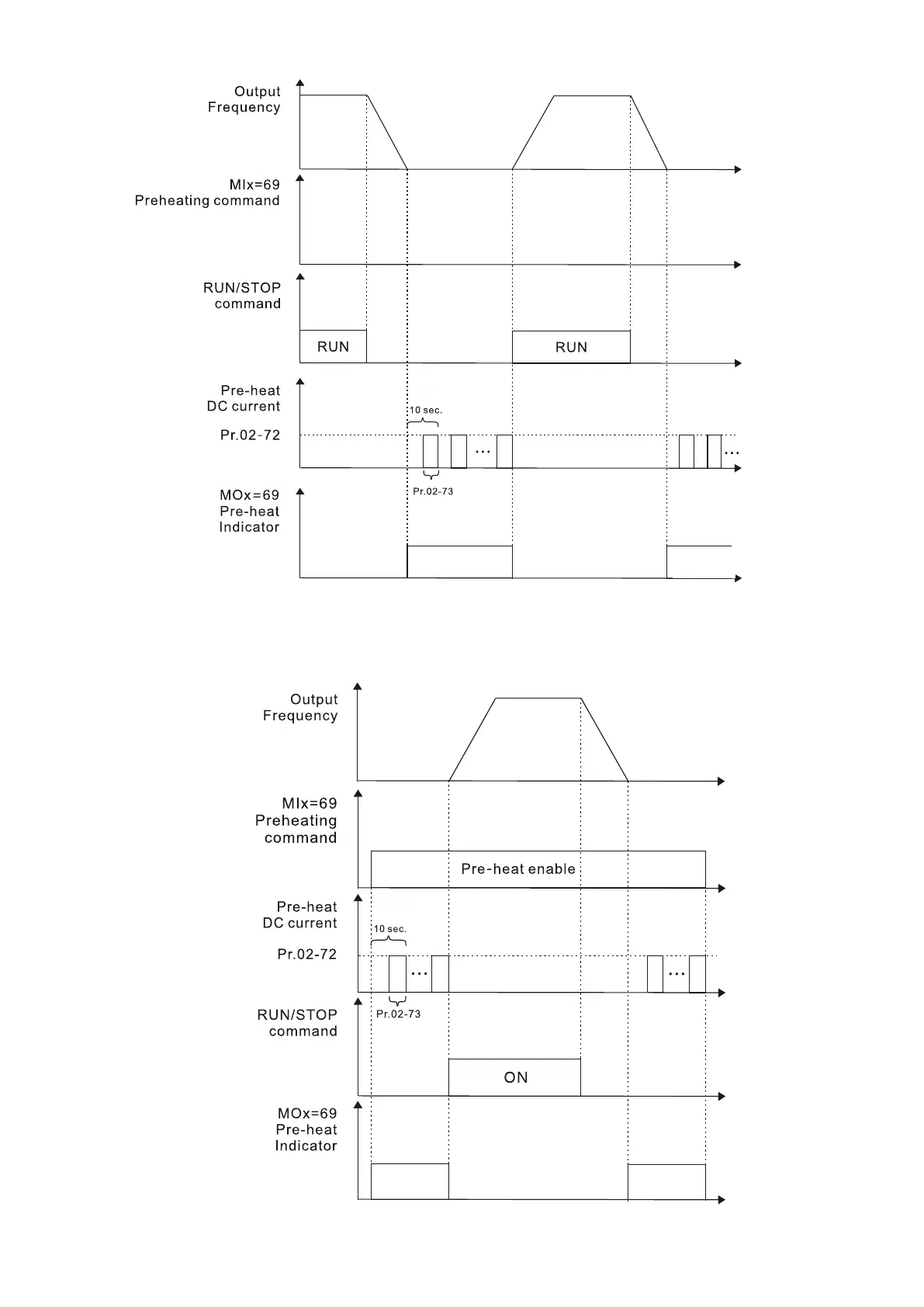

 The figure below shows the timing relationship when MI = 69 auto-activate preheating function is
disabled and when preheating DC current is enabled and cycle time is 50%. When the motor drive
is stopped, the preheating function starts to output DC current continuously.
