Chapter 12 Description of Parameter Settings
ME300
Example 2 (Pr.12-40 = 2)
Continuously executes program cycles

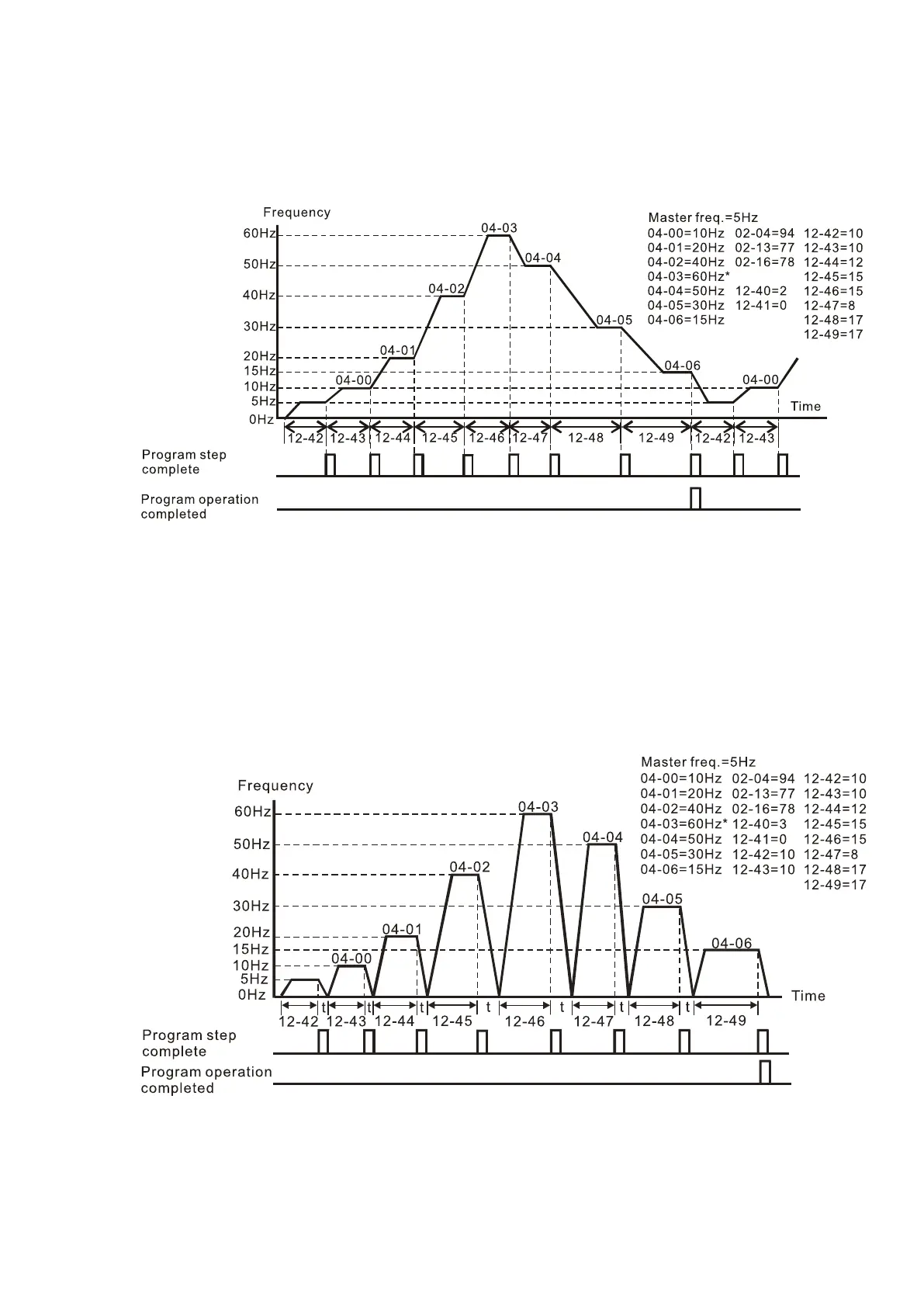

The diagram below shows the PLC program stepping through each speed and then automatically
starting again. To stop the PLC program, you must either pause the program or turn it off.
Example 3 (Pr.12-40 = 3)
Execute one program cycle step by step
The example shows how the PLC executes one program cycle at a time within a complete cycle.
Each step uses the acceleration/deceleration time.
Noted that the time each step spends at its desired frequency reduces due to the time spent
during acceleration/deceleration.
