Chapter 12 Description of Parameter Settings
ME300

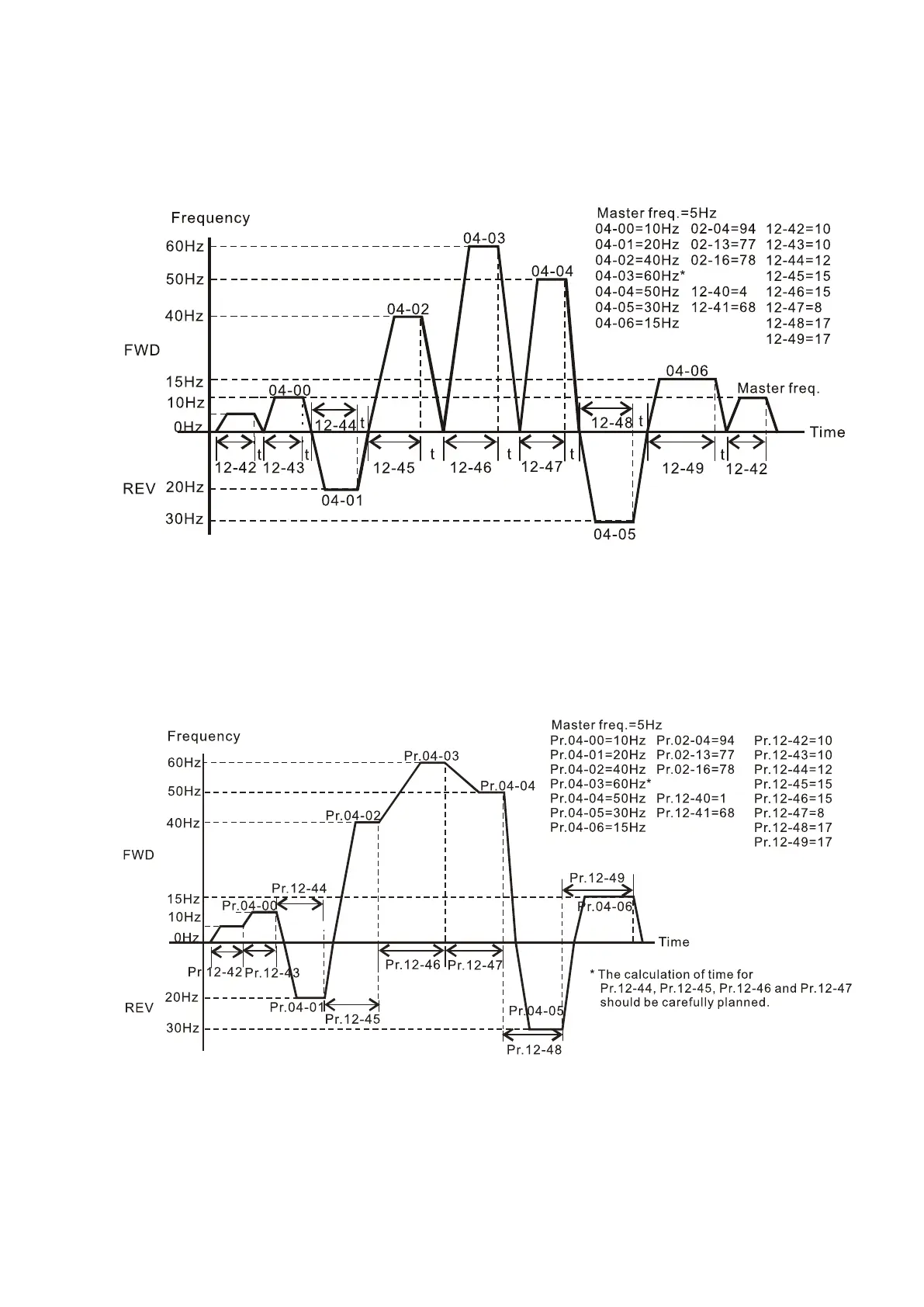

Example 4 (Pr.12-40 = 4)
Continuously execute PLC cycles step by step
In this example, PLC program runs continuously step by step. The diagram shown below is the
example of steps in reverse direction.
Example 5 (Pr.12-40=1)
Execute one cycle of the PLC program
In this example, the PLC program runs continuously. Noted that the times of reserve motion may
be shorter than expected due to the acceleration/deceleration time.
