PLC Program Running Direction Mode
Default: 0
Settings bit 0–bit 7 (0: FWD RUN, 1: REV RUN)
bit 0: Direction of auto-operation’s main speed
bit 1: Direction of the first
speed for Pr.04-00
bit 2: Direction of the second speed for Pr.04-01
bit 3: Direction of the second speed for Pr.04-02
bit 4: Direction of the second speed for Pr.04-03
bit 5: Direction of the second speed for Pr.04-04
bit 6: Direction of the second speed for Pr.04-05
bit 7: Direction of the second speed for Pr.04-06
This parameter controls the direction of motion for the Multi-Step Speed Pr.04-00 to Pr.04-06 and
the Master Frequency. The original direction of Master Frequency will become invalid.

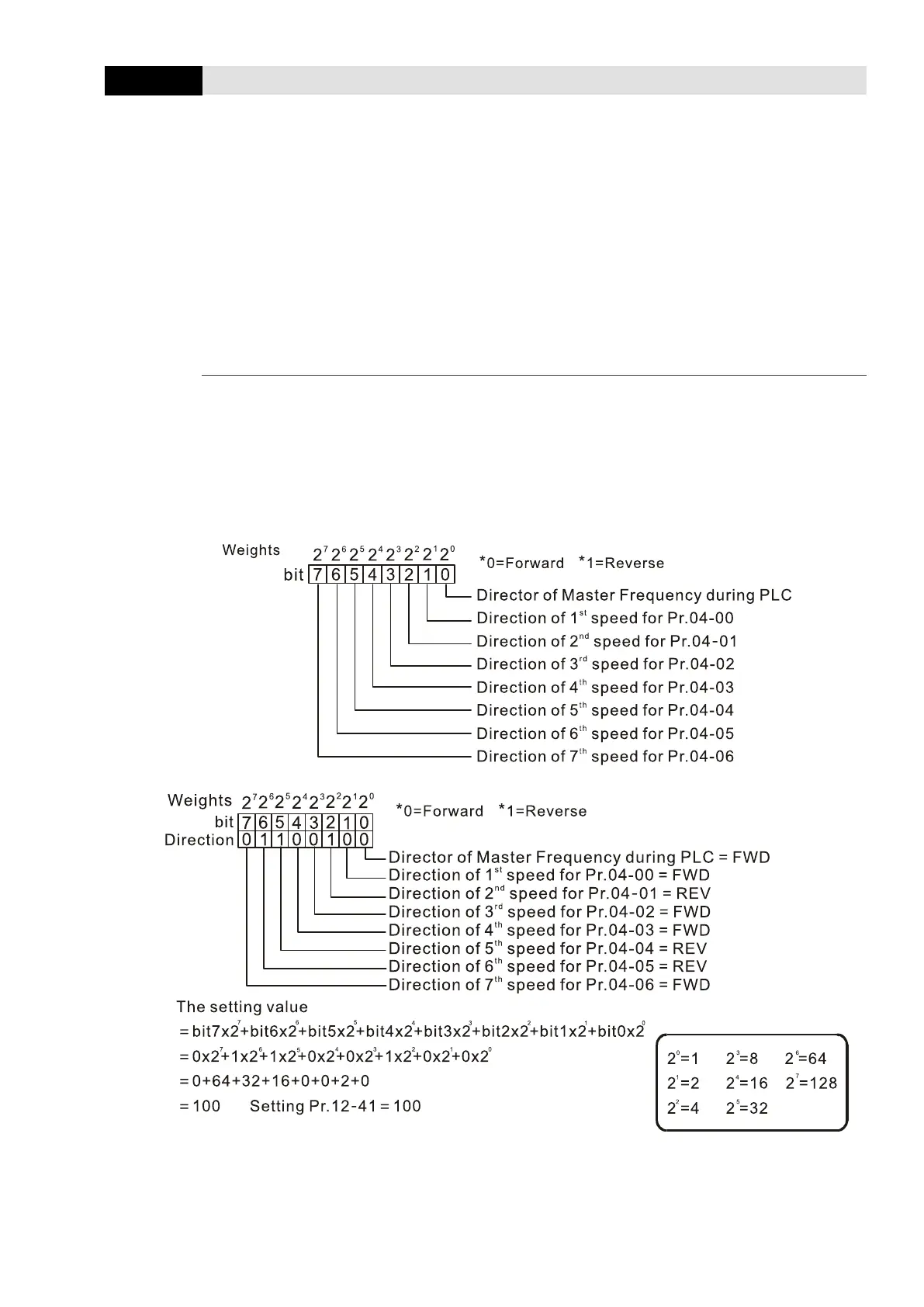

The equivalent 8-bit number is used to program the forward/reverse motion for each of the 8
speed steps (including Master Frequency). The binary 8-bit number must convert to decimal, and
then you can enter this parameter.
