Chapter 7 Optional AccessoriesME300
7-13
DC reactor
DC reactor can also improve the power factor, reduce input current, and reduce interference
generated from the motor drive. A DC reactor stabilizes the DC BUS voltage. Compared to an AC input
reactor, the advantages are smaller size, lower price, and lower voltage drop (lower power dissipation).

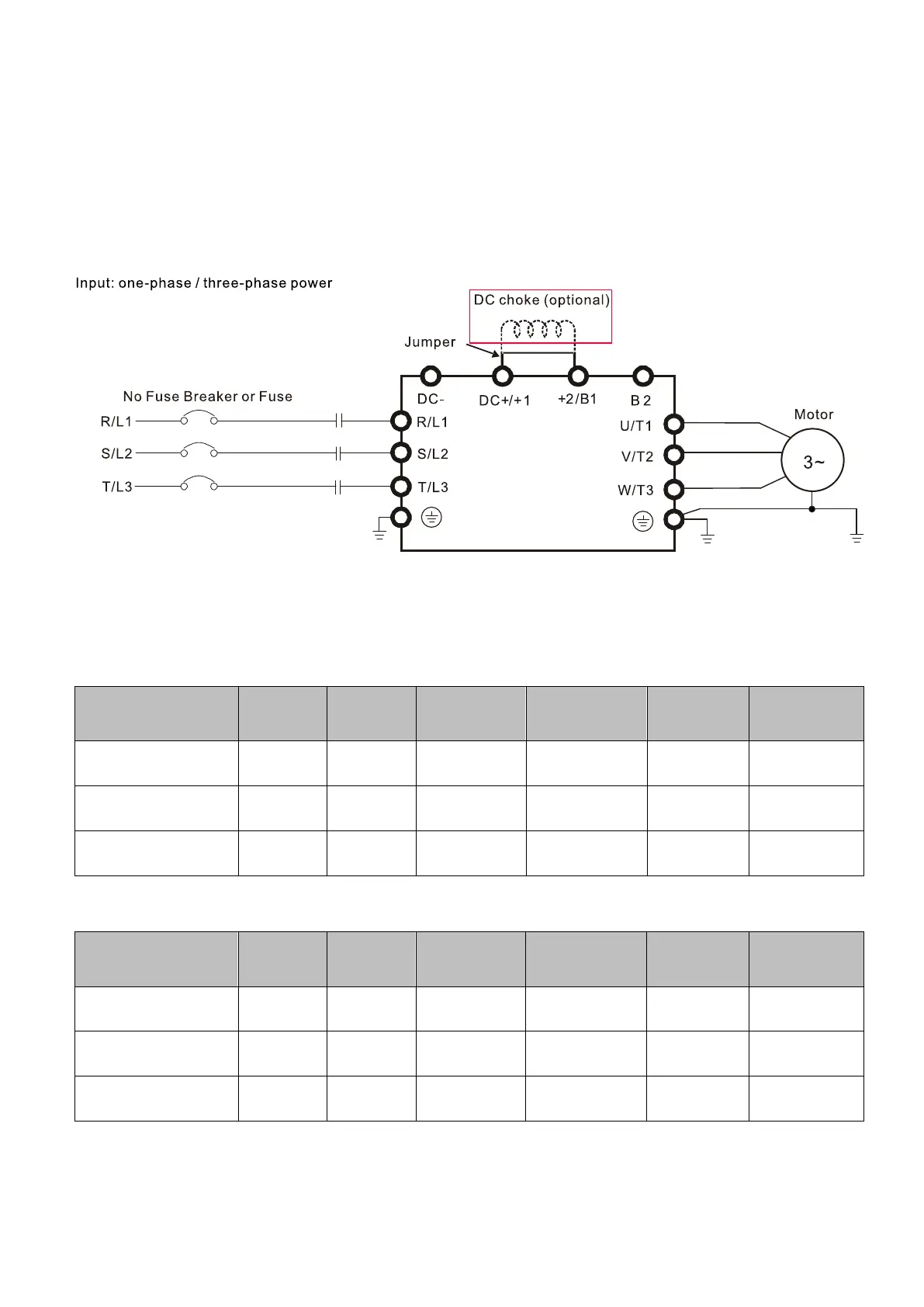

Installation: Install the DC reactor between terminals +1 and +2. Remove the jumper, before installing the
DC reactor.
Note: 115V models have no DC choke.
Figure 7-6
Reactor specification
115V, 50–60 Hz / One-Phase - Normal Duty
Model
Rated
Current
(Arms)
Saturation
Current
(Arms)
Intput AC / DC
Reactor
(mH)
Intput AC / DC
reactor
Delta part #
Output AC
reactor
(mH)
Output AC
reactor
Delta part #
VFD1A6ME11ANNAA
VFD1A6ME11ANSAA
1.8 2.7 3.66 DR008D0366 2.54 DR005L0254
VFD2A5ME11ANNAA
VFD2A5ME11ANSAA
2.7 4.05 2.66 DR011D0266 2.54 DR005L0254
VFD4A8ME11ANNAA
VFD4A8ME11ANSAA
5.5 8.25 1.17 DR025D0117 1.59 DR008L0159
Table 7-10
115V, 50–60 Hz / One-Phase - Heavy Duty
Model
Rated
Current
(Arms)
Saturation
Current
(Arms)
Intput AC / DC
Reactor
(mH)
Intput AC / DC
reactor
Delta part #
Output AC
reactor
(mH)
Output AC
reactor
Delta part #
VFD1A6ME11ANSAA
VFD1A6ME11ENSAA
1.6 3.2 3.66 DR008D0366 2.54 DR005L0254
VFD2A5ME11ANSAA
VFD2A5ME11ENSAA
2.5 5 2.66 DR011D0266 2.54 DR005L0254
VFD4A8ME11ANSAA
VFD4A8ME11ENSAA
5 9.6 1.17 DR025D0117 2.54 DR005L0254
Table 7-11
