Chapter 7 Optional AccessoriesME300
7-23

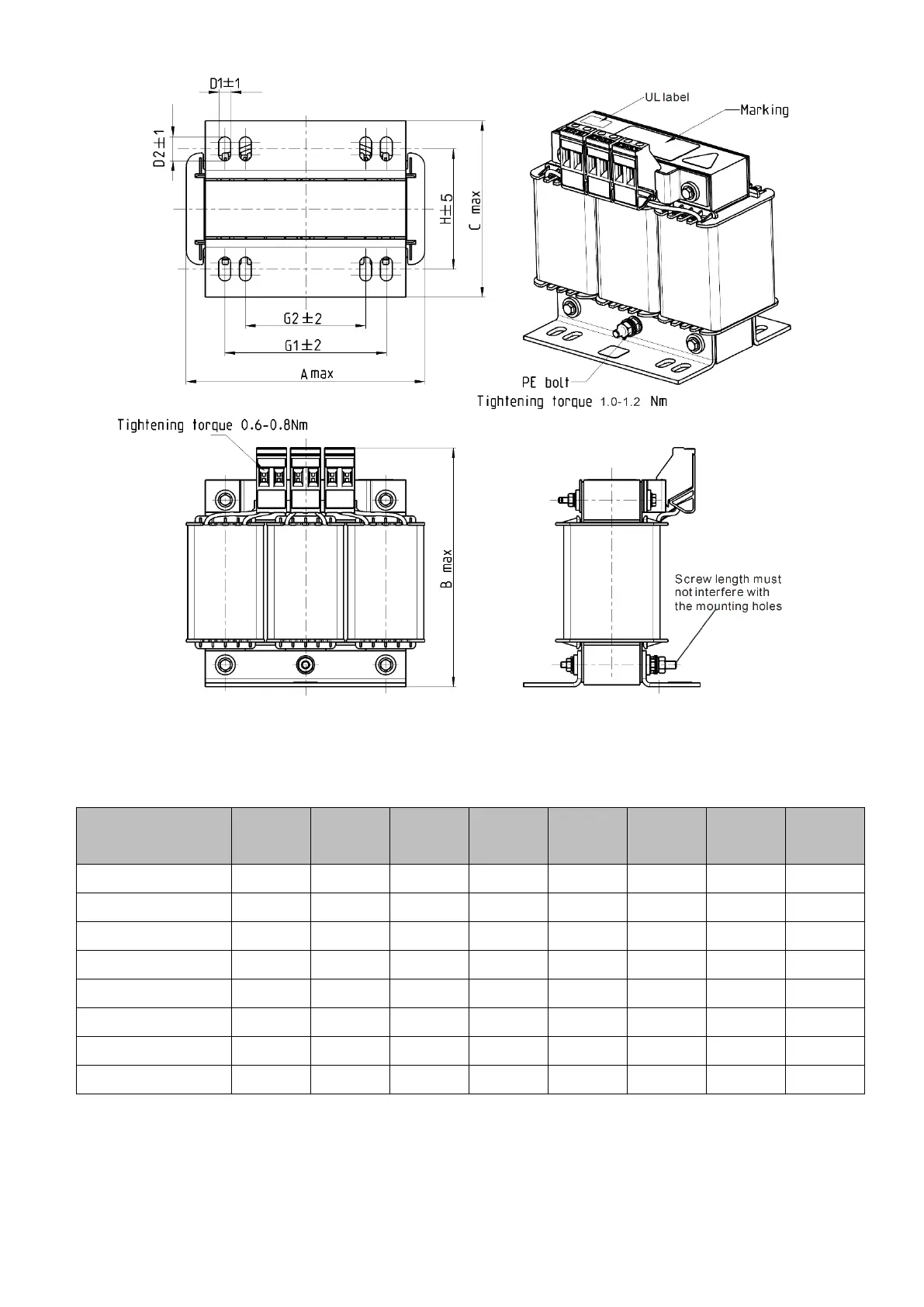

Figure 7-12
Unit: mm
Output AC reactor
Delta part #
A B C D1*D2 H G1 G2 PE D
DR003L0810 96 115 65 6*9 42 60 40 M4
DR004L0607 120 135 95 6*12 60 80.5 60 M4
DR006L0405 120 135 95 6*12 60 80.5 60 M4
DR009L0270 150 160 100 6*12 74 107 75 M4
DR010L0231 150 160 115 6*12 88 107 75 M4
DR012L0202 150 160 115 6*12 88 107 75 M4
DR018L0117 150 160 115 6*12 88 107 75 M4
DR024LP881 150 160 115 6*12 88 107 75 M4
Table 7-24
