Delta ME300 Series

Chapter 7 Optional AccessoriesME300
7-24

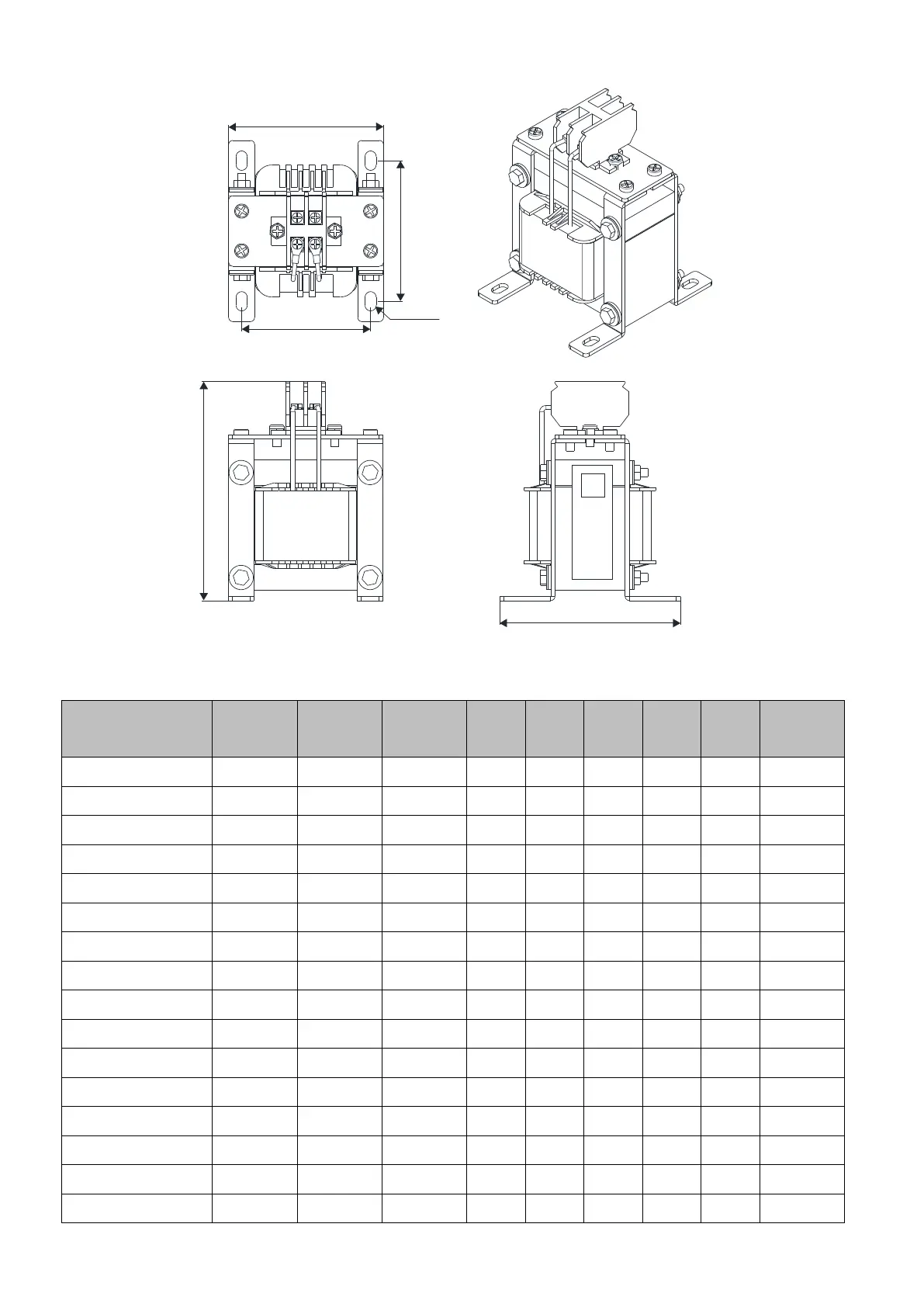

DC reactor dimension and specification:
Figure 7-13
DC reactor
Delta Part #
Rated
Current
(Arms)
Saturation
current
(Arms)
DC
reactor
(mH)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
R
(mm)
DR005D0585 5 8.64 5.857 79 78 112
64±2 56±2
9.5*5.5
DR008D0366 8 12.78 3.660 79 78 112
64±2 56±2
9.5*5.5
DR011D0266 11 18 2.662 79 92 112
64±2 69.5±2
9.5*5.5
DR017D0172 17 28.8 1.722 79 112 112
64±2 89.5±2
9.5*5.5
DR025D0117 25 43.2 1.172 99 105 128
79±2 82.5±2
9.5*5.5
DR033DP851 33 55.8 0.851 117 110 156
95±2 87±2
10*6.5
DR049DP574 49 84.6 0.574 117 120 157
95±2 97±2
10*6.5
DR065DP432 65 111.6 0.432 117 140 157
95±2 116.5±
2
10*6.5
DR003D1870 3 5.22 18.709 79 78 112
64±2 56±2
9.5*5.5
DR004D1403 4 6.84 14.031 79 92 112
64±2 69.5±2
9.5*5.5
DR006D0935 6 10.26 9.355 79 92 112
64±2 69.5±2
9.5*5.5
DR009D0623 9 14.58 6.236 79 112 112
64±2 89.5±2
9.5*5.5
DR010D0534 10.5 17.1 5.345 99 93 128
79±2 70±2
9.5*5.5
DR012D0467 12 19.8 4.677 99 105 128
79±2 82.5±2
9.5*5.5
DR018D0311 18 30.6 3.119 117 110 144
95±2 87±2
10*6.5
DR024D0233 24 41.4 2.338 117 120 144
95±2 97±2
10*6.5
C
A
D
E
B
R
