MS300/MH300 PROFINET Communication Card CMM-PN02
CMM-PN02 Operation Manual
44

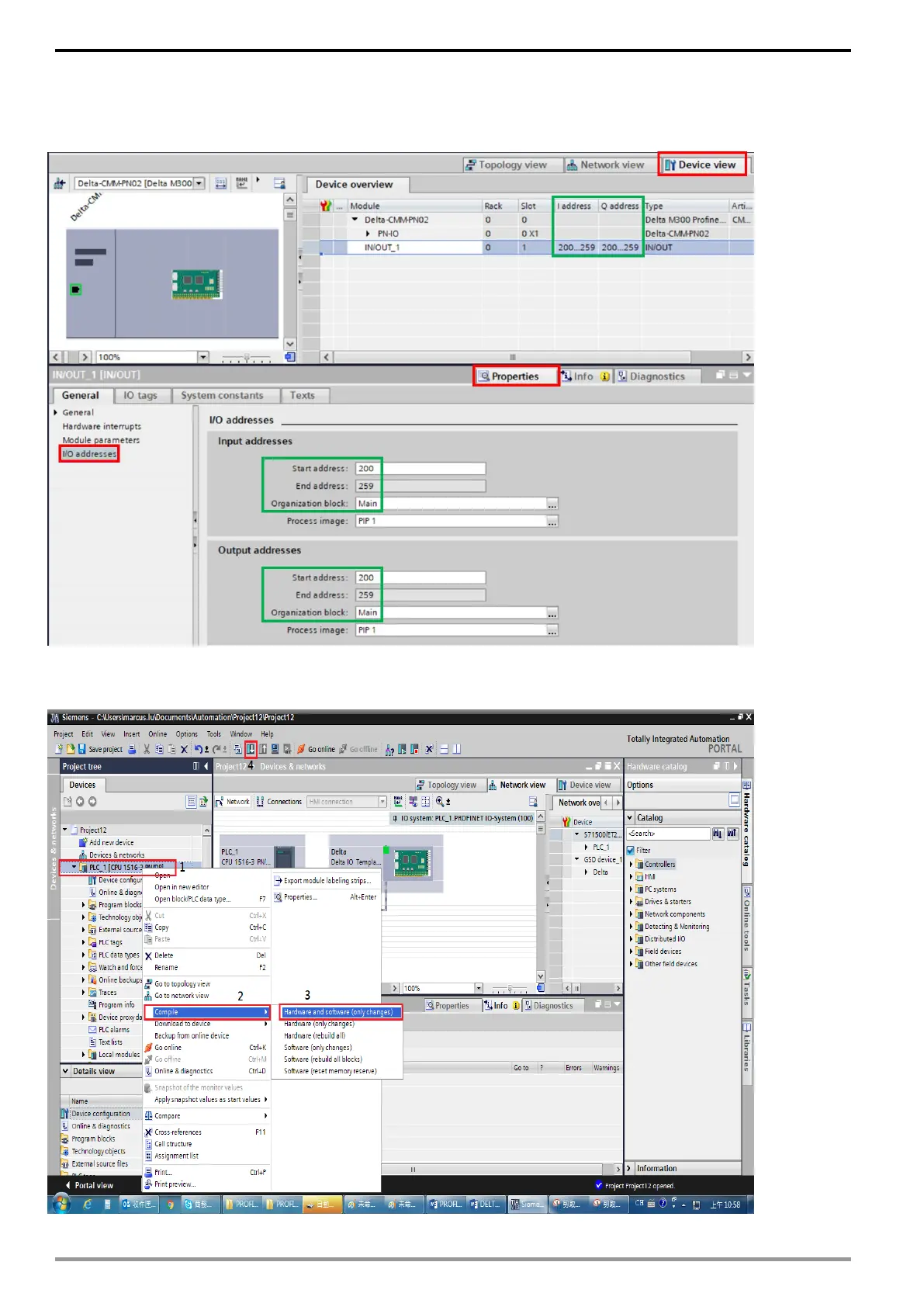

Double-click on the icon of CMM-PN02 card and enter the Device view, you can set the address
x,y of the motor drive as described in Chapter 5 in the green box below. Besides, if your PLC has
more than one POU, you can select the POU that the IO read/write corresponds to in the green
box below.
Now you can start to test the connection. Follow the steps as shown in the figure below
to compile
and download.
