MS300/MH300 PROFINET Communication Card CMM-PN02
CMM-PN02 Operation Manual
6.4 Demonstration of Reading/Writing Synchronous and Asynchronous
Parameters (S7-300 + TIA PORTAL)
Settings for Reading and Writing Synchronous Parameters of the Drive
The following example is demonstrated by using Siemens CPU315-2 PN/DP and TIA Portal V13
SP1. Refer to examples from previous chapter for the periodic programming implementation.

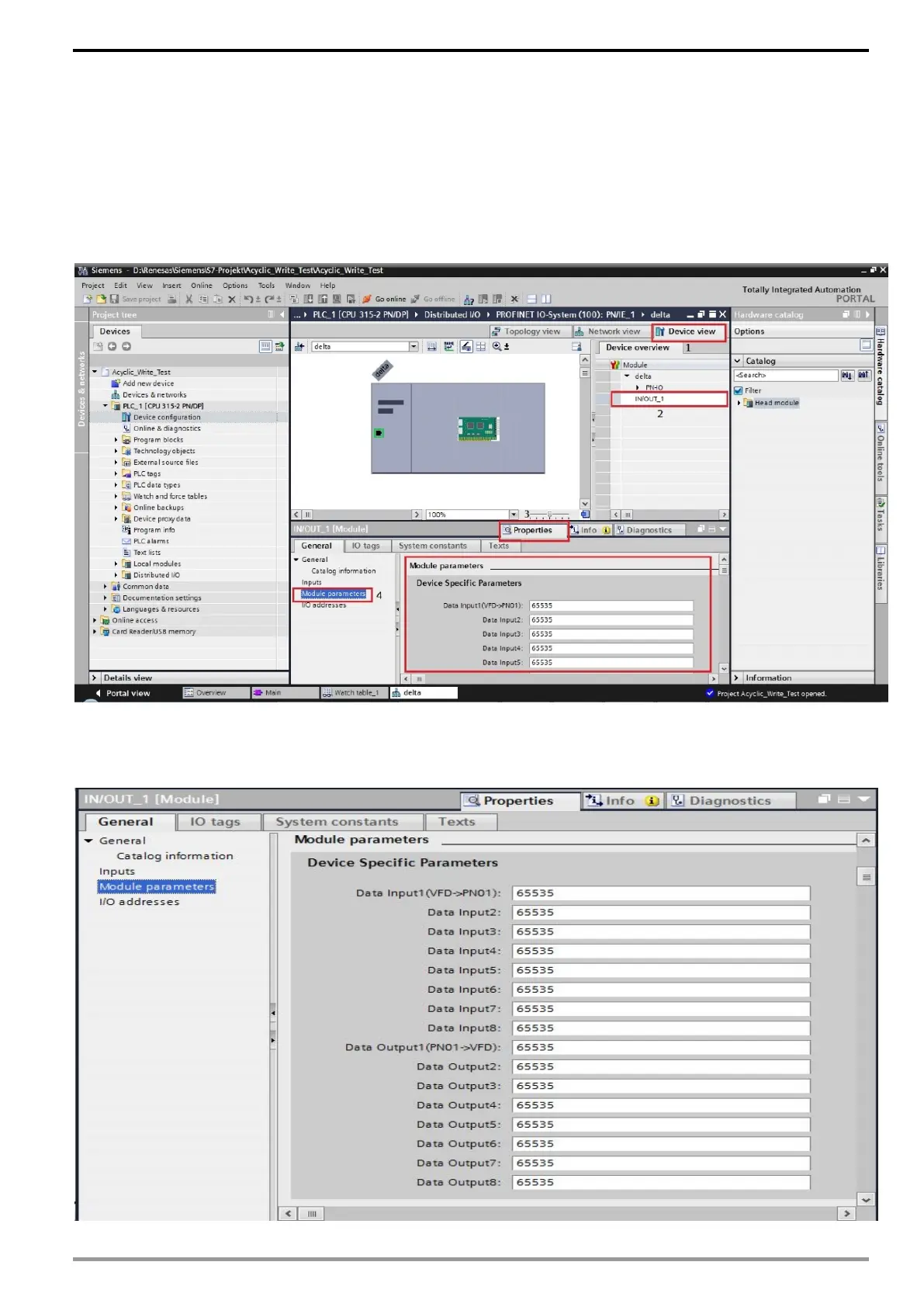

1. Follow the four steps as shown in the figure below to open Module Parameters.
2. The figure below shows a complete parameter table. You can synchronously read or write the
parameters of the drive by setting up this table. If the value of the parameters is
65535(0xFFFF), there is no parameter reading or writing.
