Delta RTU-ECAT

RTU-ECAT Operation Manual
4-4
_4

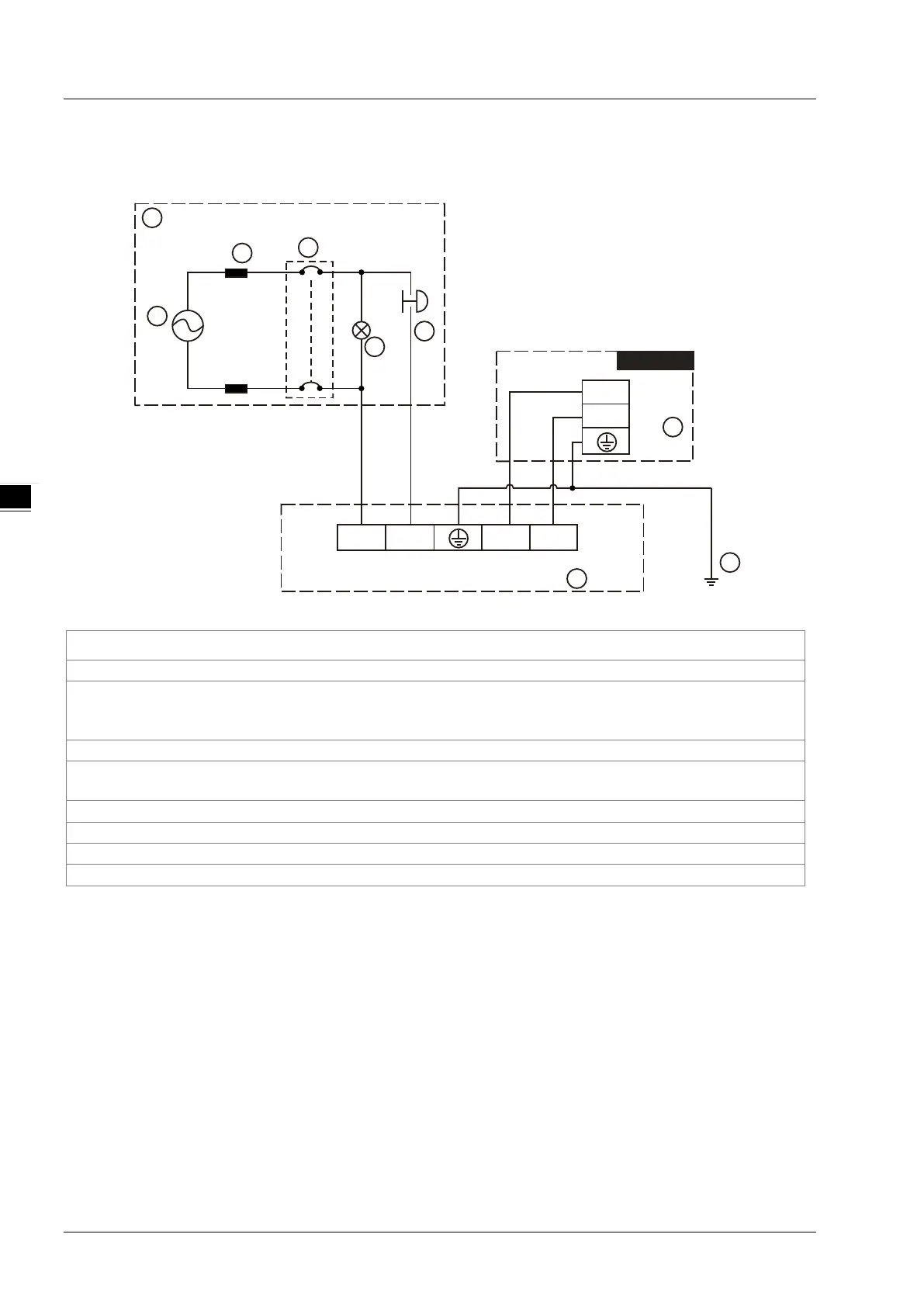

RTU-E CAT Safety Circuit Wiring
9
1
2
3
4
5
6
7
8
DVP-PS02
24V
0V
0V24VLN
RT U EC AT-
L
N
 AC power supply: 100～240VAC; 50/60Hz.

Power supply circuit protection fuse

System circuit isolation device: The electromagnetic contactor, relay and other switch can be used as
the isolation device to prevent the system from becoming unstable when the power supply is
discontinuous.

Power indicator

Emergency stop button: The button cuts off the system power supply when an accidental situation
takes place.

Delta power module DVP-PS02/24VDC

RTU-ECAT device

Ground

Safety circuit
