Delta RTU-ECAT User Manual

Chapter 2 Overview
2-3
2_
 Environment
Item Specification
Noise Immunity
ESD（IEC 61131-2, IEC 61000-4-2）: 8KV Air Discharge, 6KV Contact
Discharge
EFT（IEC 61131-2, IEC 61000-4-4）: Power Line: 2KV, Digital I/O: 1KV
Communication I/O: 2KV
Damped-Oscillatory Wave: Power Line: 1KV, Digital I/O: 1KV
RS（IEC 61131-2, IEC 61000-4-3）
: 80MHz ~ 1000MHz, 10V/m; 1400MHz
~ 6000MHz, 3V/m
Operation 0ºC ~ 55ºC (temperature), 50 ~ 95% (humidity), pollution degree 2
Storage -25ºC ~ 70ºC (temperature), 5 ~ 95% (humidity)
Vibration/shock
resistance
Standard: IEC 61131-2, IEC 68-2-6 (TEST Fc)/IEC 61131-2 & IEC
68-2-27 (TEST Ea)
Safety Conforms to IEC 61131-2, UL 61010-1, UL 61010-2-201
Barometric
pressure-altitude
Operating: 1080~795hPa (-1000~2000m)
Storage: 1080~660hPa (-1000~3500m)
Weight 84g

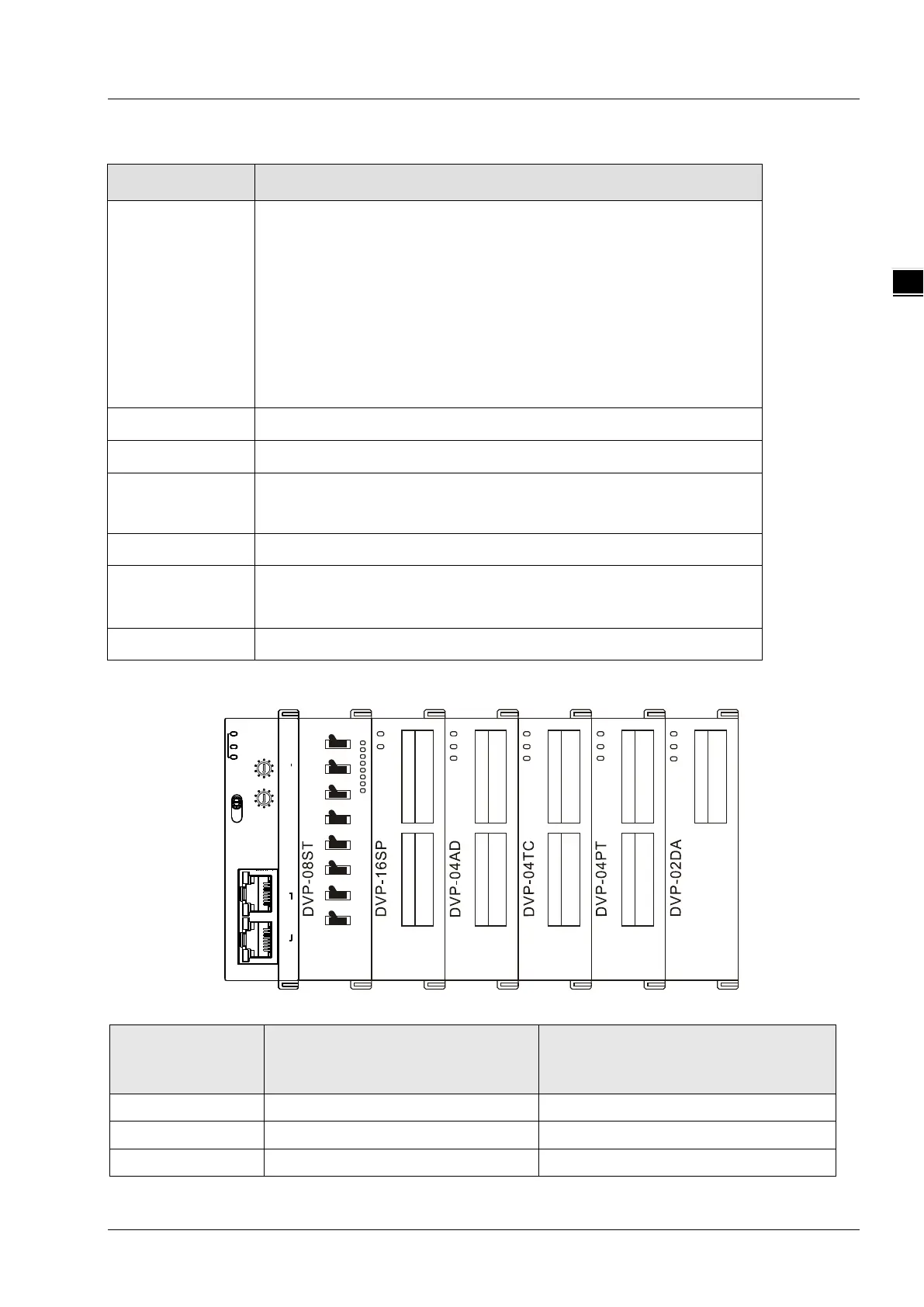

2.3 Extension Modules Connectable to RTU-ECAT
R T U-EC AT
PO WE R
RU N
AL AR M
R UN
ST O P
NO DE ADDR ESS
x 10
x 10
1
0
5
4
3
2
1
0
9
8
7
6
5
4
3
2
1
0
9
8
7
6
Et herCA T
I NOUT
 Digital modules connectable to RTU-ECAT
DI/DO module
(Model name)
Default I/O mapping data
(EtherCAT master → RTU-ECAT)
Default I/O mapping data
(RTU-ECAT → EtherCAT master)
DVP08SM11N
N/A
8 bits
DVP08SM10N
N/A
8 bits
DVP16SM11N
N/A
16 bits
