Delta RTU-ECAT User Manual

Chapter 5 Configuring RTU-ECAT
5-3
5
No. Name Unit Explanation
8 IO mapping N/A
The IO mapping between RTU-ECAT and the
special modules
connected to it.
5.2 Introduction to the Software Interfaces
This section introduces the configuration of RTU-ECAT by taking the TwinCAT3 software as an example.
5.2.1 Main Interface for RTU Configuration

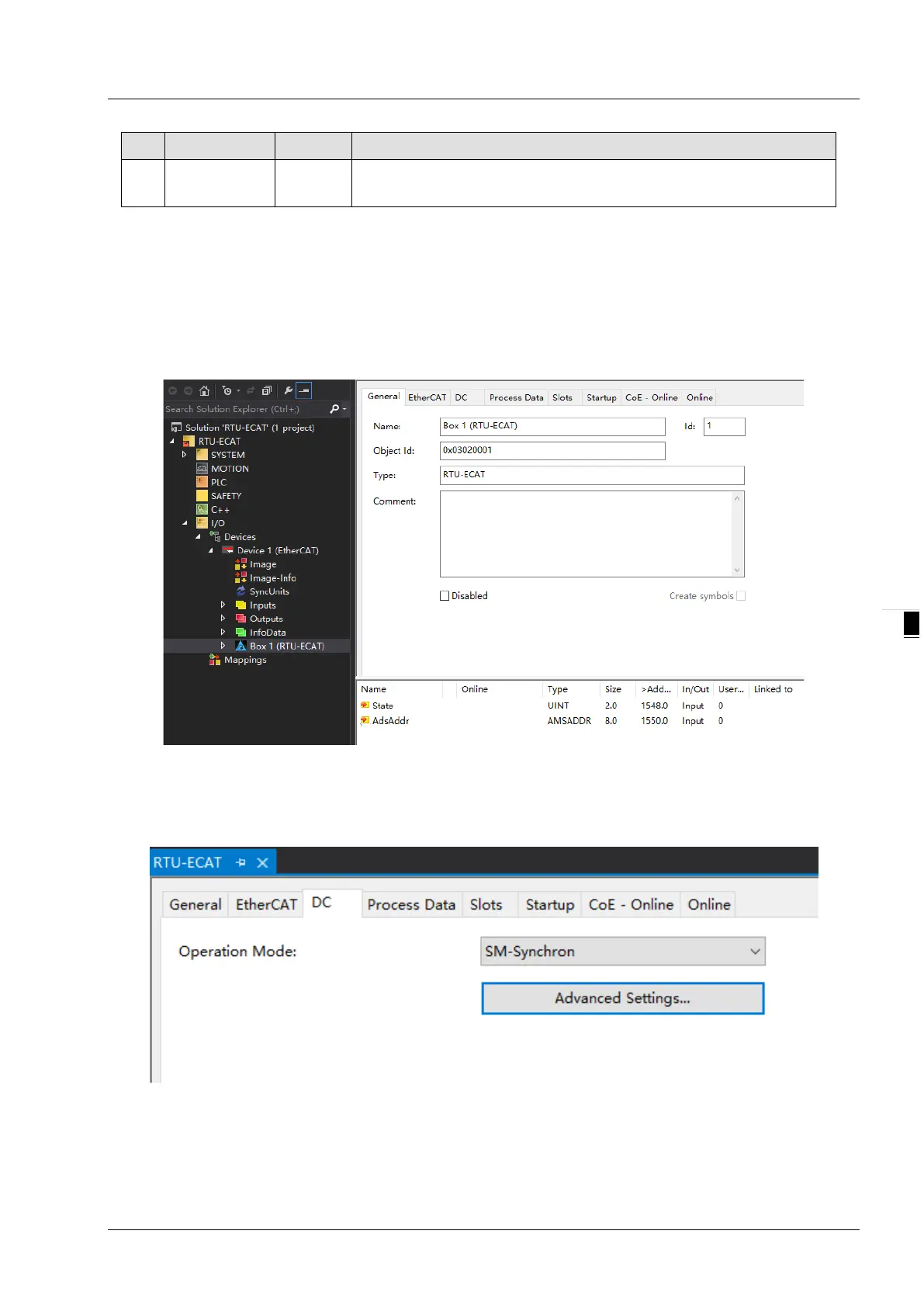

Click on the RTU-ECAT symbol on the left list of the TwinCAT3 window as below. The main RTU configuration
interface appears then.
5.2.2 DC Interface
On the RTU configuration interface, open the DC interface with a click on DC tab.
Operation Mode:
RTU-ECAT supports two operation modes, SM (Synchro Manager) and DC (Distributed Clock). Either of the
two operation modes can be chosen from the pull-down box.
