Delta RTU-ECAT User Manual
5
of 1
of 1 rating
79 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

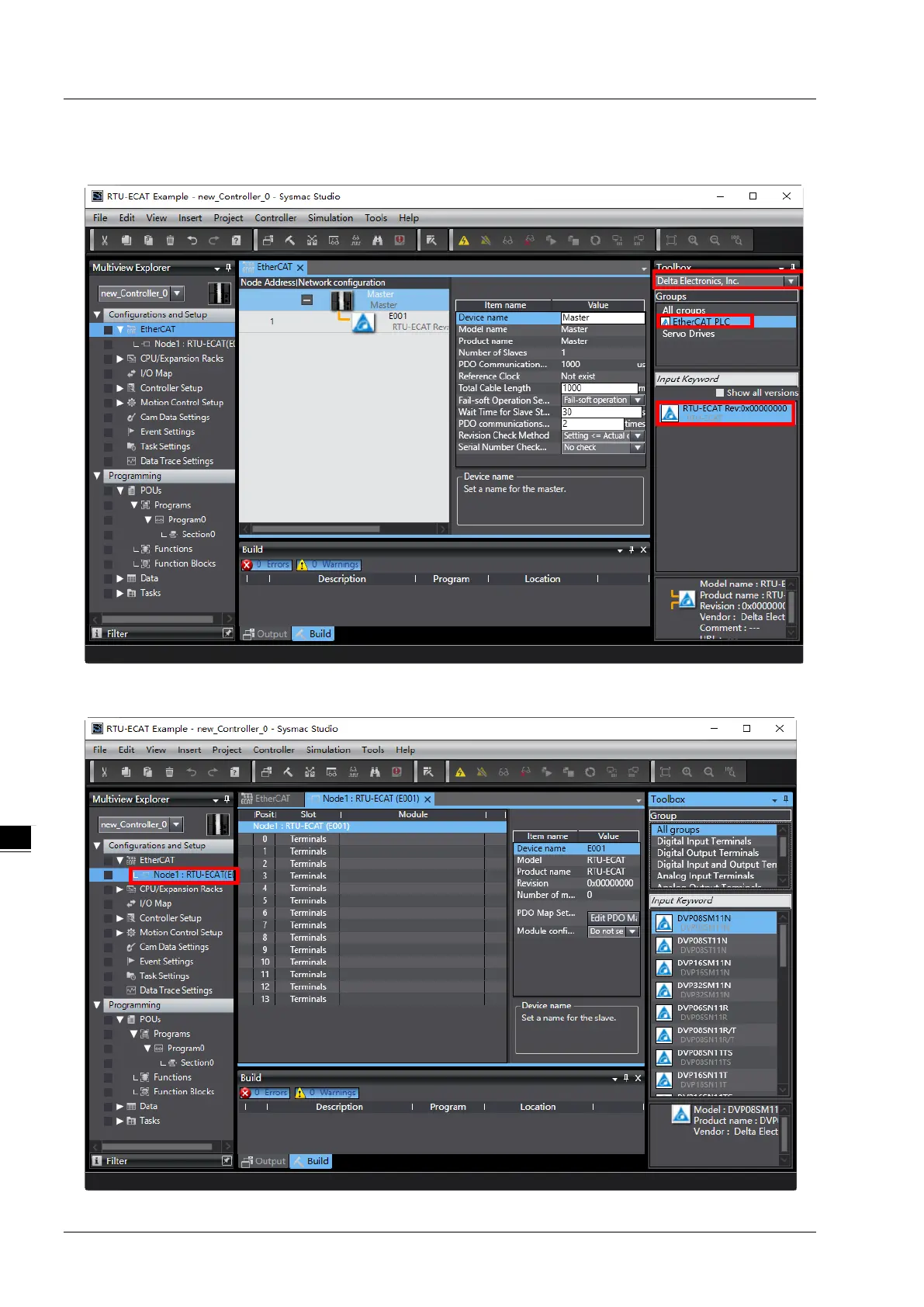

RT
U
-
E
C
AT
O
pera
tion Manual
7-
30
_7
4.
S
elect “
De
l
ta
E
l
ectronics
,
Inc.”
f
rom
the
T
oolbox pu
lldo
wn list an
d then c
hoose “
Et
herCA
T
PLC”
as
we
ll
as double
-
c
lick
on
R
TU
-
ECA
T to add
R
TU
-
ECA
T to th
e Eth
erCA
T network
.
5.
D
ouble
-
click on
“Node1:
R
TU
-
ECA
T
(E001)”
to ope
n the
configur
ation
interf
ace after
RTU
-
ECA
T is added
to the
Et
herCA
T
network
.
68
70
Table of Contents
Default Chapter
2
Table of Contents
2
Chapter 1 Preface
4
Explanation of Symbols in this Manual
5
Revision History
5
Chapter 2 Overview
6
Characteristics
7
Specifications
7
Extension Modules Connectable to RTU-ECAT
8
Chapter 3 Profile and Parts
12
Profile and Dimension
13
Parts
13
Ethercat Port
14
RUN/STOP Switch
14
Address Switches
14
Extended IO Interface
15
Chapter 4 Installing and Wiring
16
Installing RTU-ECAT and DVP-S Extension Modules
17
Installing RTU-ECAT and DVP-S Modules on DIN Rail
17
Connecting to Ethercat Port
18
Wiring
18
Power Input
18
Ground
20
Chapter 5 Configuring RTU-ECAT
22
Terms
23
Introduction to the Software Interfaces
24
Main Interface for RTU Configuration
24
DC Interface
24
Right-Side Configuration of RTU-ECAT
25
Data Exchange Configuration Interface of Special Modules
26
Chapter 6 Introduction of Parameters
30
Parameters for Right-Side Special Modules
31
Parameters for Connection Status of Right-Side Modules
34
Control Word and Status Indication Parameters
35
Control Word Parameter
35
Status Indication
36
Chapter 7 Application Examples
40
Using Delta AX8 Series CPU with RTU-ECAT
42
Using Twincat3 with RTU-ECAT
52
Configuring the Network Via Twincat3
52
Controlling RTU-Ecat's Right-Side Modules Via PLC
63
Using OMRON NJ301 with RTU-ECAT
66
Chapter 8 Error Diagnosis and Trouble-Shooting
74
LED Indicator Diagnosis
75
Status Indication Diagnosis
76
Appendix A List of Accessories
78
Accessories for Ethercat Communication
79
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Delta RTU-ECAT and is the answer not in the manual?
Ask a question
Delta RTU-ECAT Specifications
General
Brand
Delta
Model
RTU-ECAT
Category
Controller
Language
English
Related product manuals
Delta DCS
67 pages
Delta VFD-E
395 pages
Delta ASDA-A2
721 pages
Delta DVP-PLC
586 pages
Delta DVP-SS2
1006 pages
Delta DVP08SN11T
15 pages
Delta DVP08SP11R
15 pages
Delta DVP16SP11T
15 pages
Delta DT3 Series
21 pages
Delta VFD-L Series
88 pages
Delta VFD-V Series
185 pages
Delta ASD-B2-0121-B
345 pages
