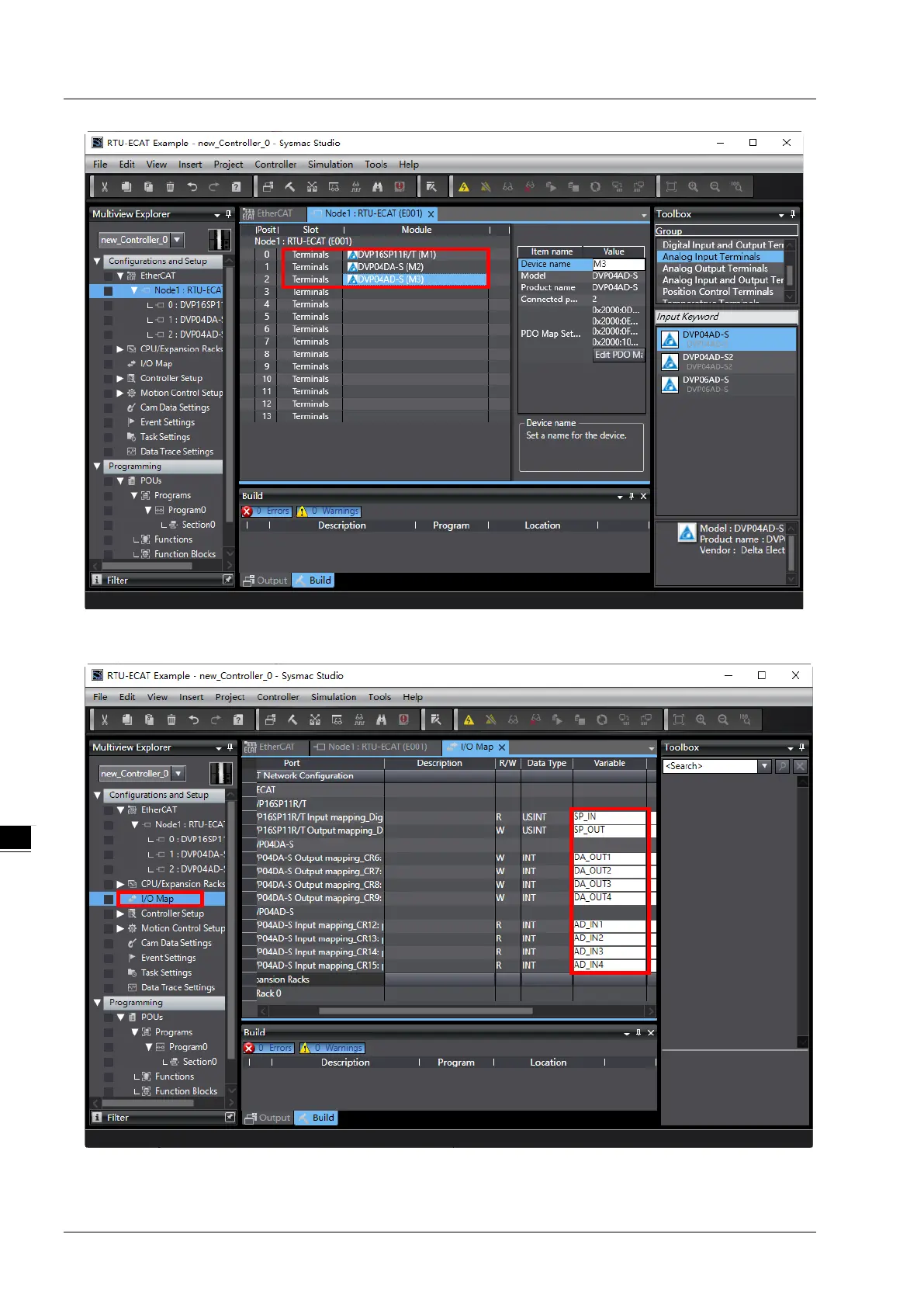

8. Double-click on “I/O Map” in the red box below and then type variables for mapping of module channels
in the “Variable” column of the “IO Map” interface.
9. Click menu “Controller” > “Communications Setup…” to set up the connection type between the NJ CPU
and computer as follows.
