Delta UNISAW User Manual

IMPORTANT: THE BLADE GUARD AND SPLITTER ASSEMBLY CANNOT BE USED
WHEN MOULDING AND MUST BE REMOVED OR SWUNG TO THE REAR OF THE
SAW AS DESCRIBED ON PAGE 12 OF THIS MANUAL.

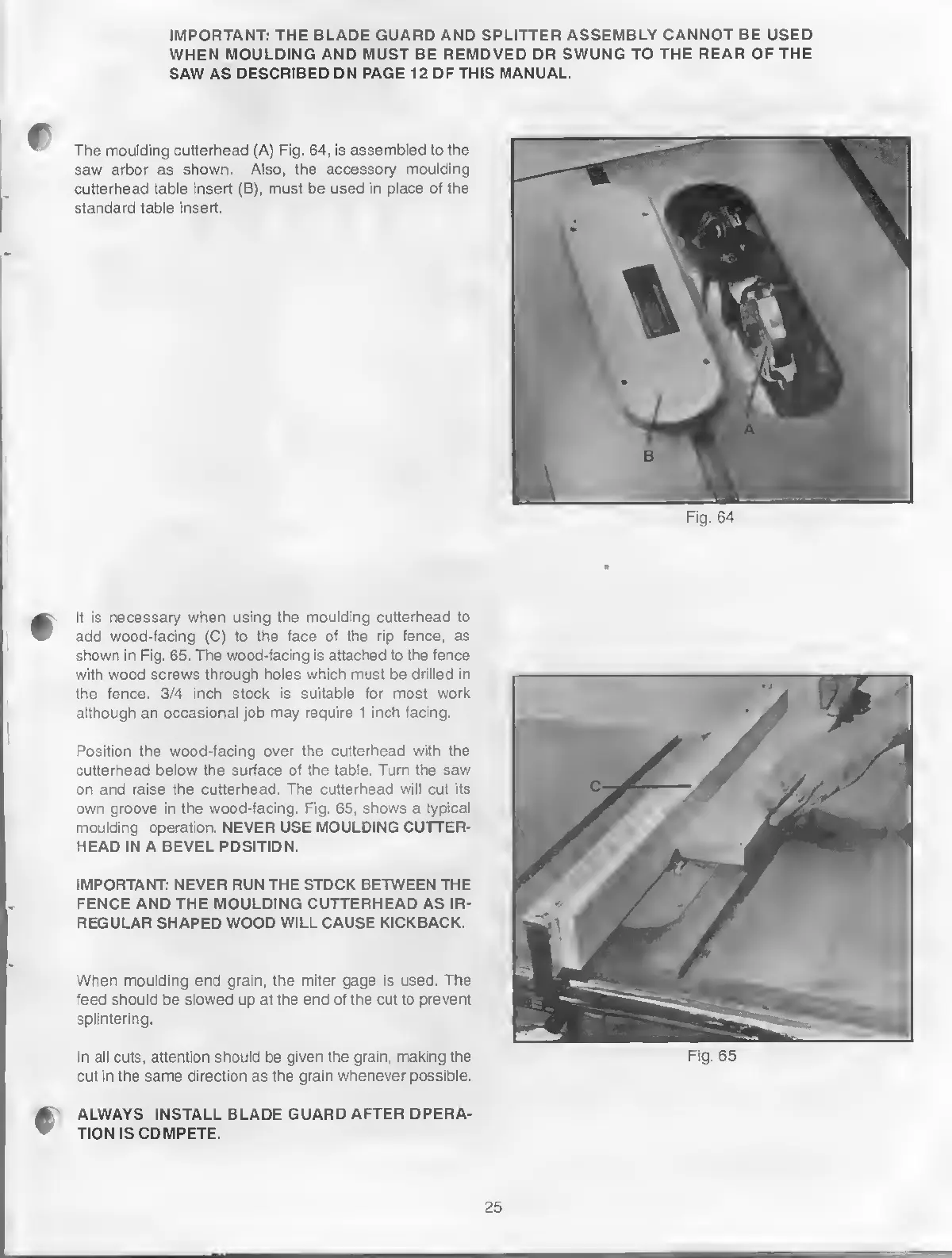

The moulding cutterhead (A) Fig. 64, is assembled to the
saw arbor as shown. Also, the accessory moulding
cutterhead table insert (B), must be used in place of the
standard table insert.
It is necessary when using the moulding cutterhead to
add wood-facing (C) to the face of the rip fence, as
shown in Fig. 65. The wood-facing is attached to the fence
with wood screws through holes which must be drilled in
the fence. 3/4 inch stock is suitable for most work
although an occasional job may require 1 inch facing.
Position the wood-facing over the cutterhead with the
cutterhead below the surface of the table. Turn the saw
on and raise the cutterhead. The cutterhead will cut its
own groove in the wood-facing. Fig. 65, shows a typical
moulding operation. NEVER USE MOULDING CUTTER¬
HEAD IN A BEVEL POSITION.
IMPORTANT: NEVER RUN THE STOCK BETWEEN THE
FENCE AND THE MOULDING CUTTERHEAD AS IR¬
REGULAR SHAPED WOOD WILL CAUSE KICKBACK.
When moulding end grain, the miter gage is used. The
feed should be slowed up at the end of the cut to prevent
splintering.
In all cuts, attention should be given the grain, making the
cut in the same direction as the grain whenever possible.
ALWAYS INSTALL BLADE GUARD AFTER OPERA¬
TION IS COMPETE.
