Denon AVR-1311 User Manual

27
ENGLISH
Basic versionSimple version InformationAdvanced version
When 2.1ch installed
FL FR
SW
Listening position
FL Front speaker (L) SL Surround speaker (L)
FR Front speaker (R) SR Surround speaker (R)
C Center speaker SBL Surround back speaker (L)
SW Subwoofer SBR Surround back speaker (R)
Procedure for speaker settings
Install
Connect (vpage28)
Set up speakers (vpage6)
Install
Install the surround back speakers in a position 60 to 90 cm higher
than ear level.
Surround
speaker
60 – 90 cm
GViewed from the sideH
Surround back
speaker
• Point slightly
downwards
Front
speaker
When 7.1ch (Surround back speaker) installed
SBL SBR
C
SL
SR
FL FR
SW
z1
z2
z3
Listening
position
z1 22˚ – 30˚ z2 90˚ – 110˚ z3 135˚ – 150˚

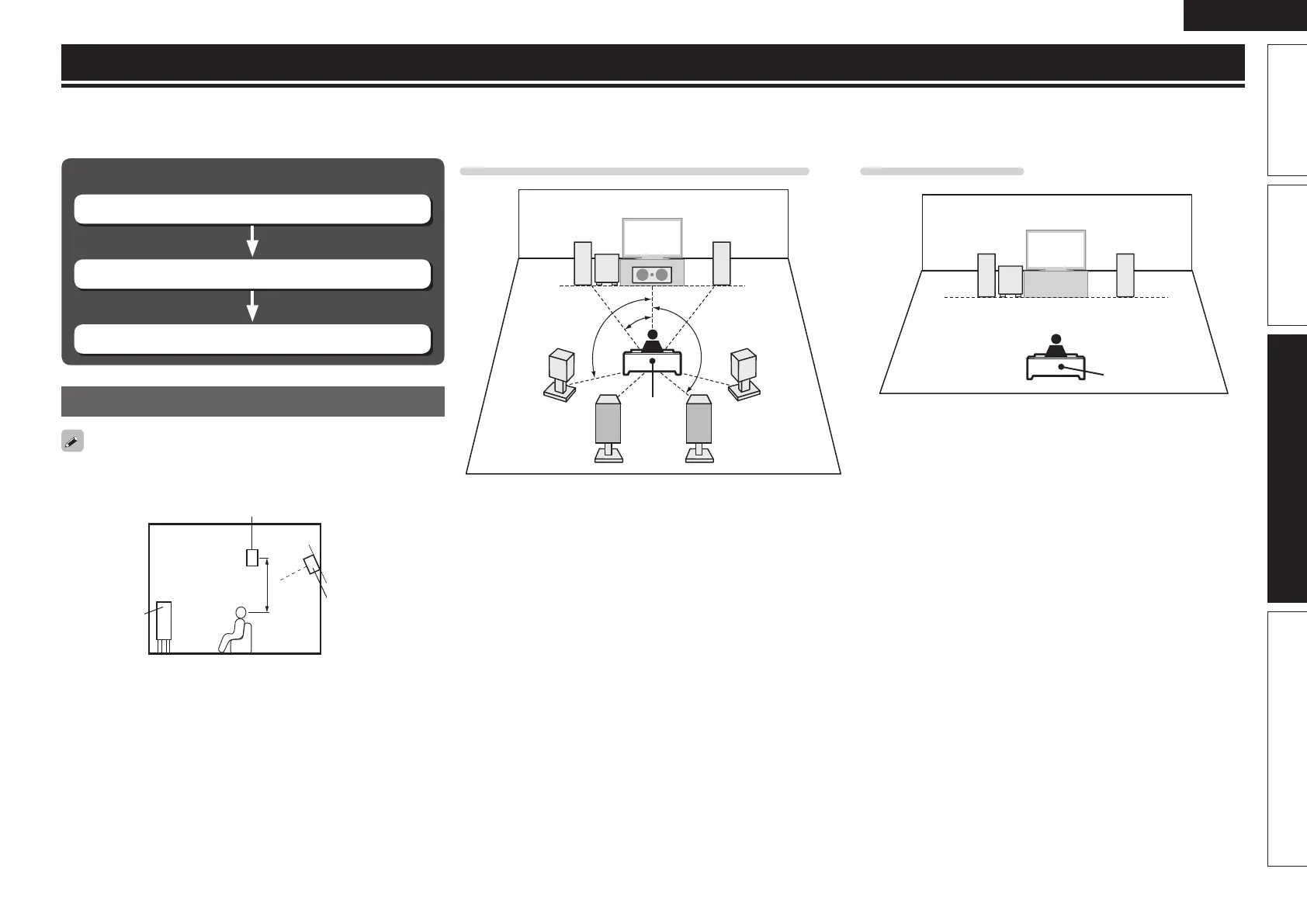

Speaker installation/connection (Other than 5.1-channel)
Here we describe the installation and connection methods for speakers other than 5.1-channel speakers. The speaker setting method is the same as “Simple
version (Simple setup guide)” (vpage3).
For the installation, connection and setup methods for 5.1-channel speakers, see “Simple version (Simple setup guide)” (vpage3).
1.AVR1311E2ENG3rd100617.inddSec:271.AVR1311E2ENG3rd100617.inddSec:27 2010/06/1718:24:182010/06/1718:24:18

Denon AVR-1311 Specifications

General

Number of Channels	5.1
HDMI Inputs	4
HDMI Outputs	1
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	98 dB
Total Harmonic Distortion	0.08%
Input Impedance	47 kOhms
Input Sensitivity	200 mV
Tuner Bands	AM/FM
Preset Station Qty	56
HDMI Switching	Yes
3D Technology	Yes
HDMI Pass-Through	Yes
Frequency Response	10 Hz - 100 kHz
Power Output	75 W per channel (8 ohms, 20 Hz - 20 kHz, THD 0.08%)
Dolby Formats	Dolby Digital, Dolby Pro Logic II
DTS Formats	DTS-HD Master Audio
Tuner Type	FM/AM
Speaker Impedance	6 - 16 ohms
Weight	8.3 kg
