Connect
• For the method of connecting 5.1-channel speakers, see page 4.
• For the method of connecting the TV, see page 5.

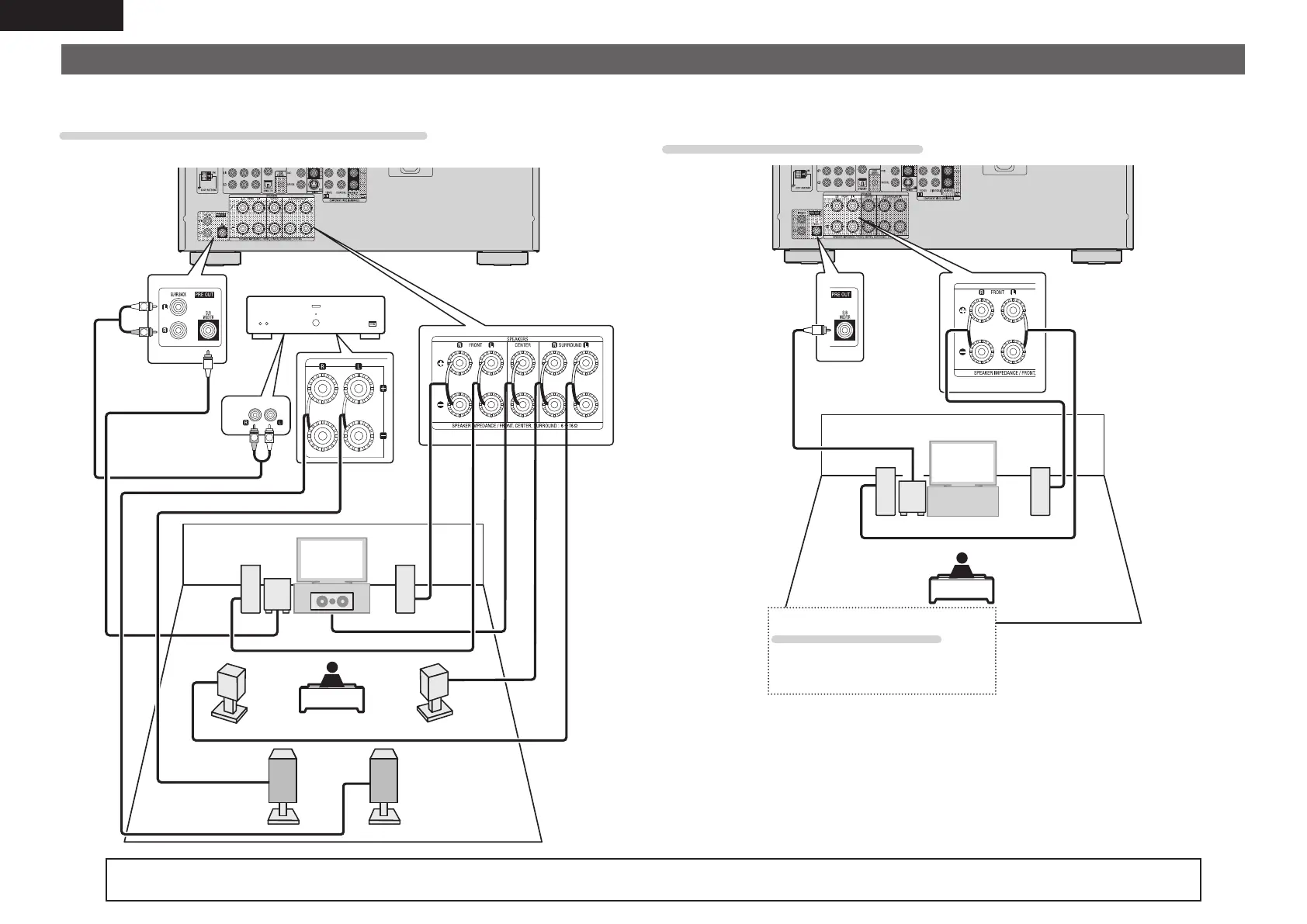

7.1-channel (Surround back speaker) connection
• A power amplifi er (sold separately) is required for this connection.
C
SBL SBR
SL
SR
IN
R
L
R
L
FL FR
SW
Power amplifi er
2.1-channel/2-channel connection
SW
FL FR
2-channel connection
For 2-channel playback, disconnect the
subwoofers.
For speaker impedance and speaker cable connections, see page 4.
