Denon AVR-1312 Service Manual

106

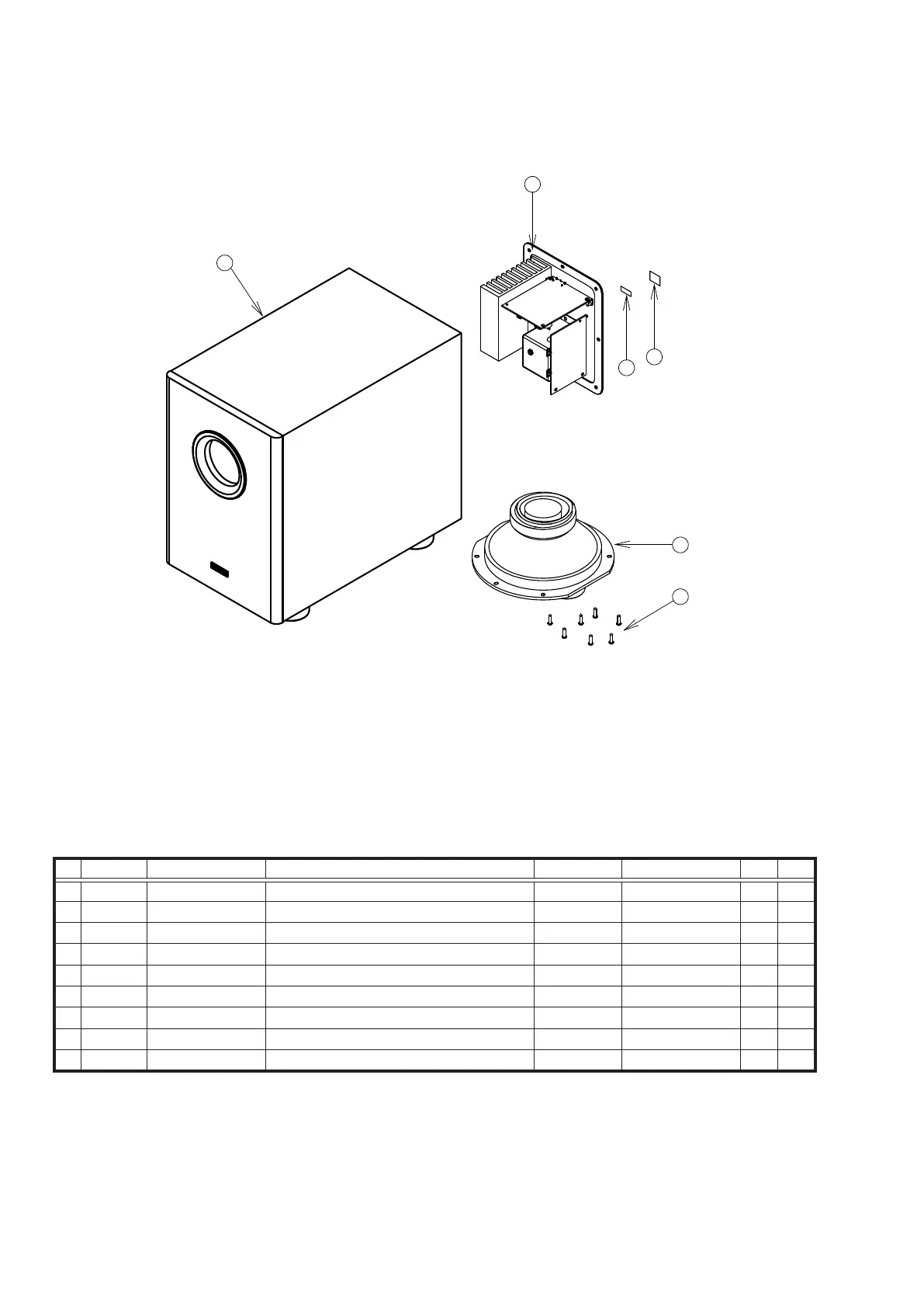

DSW-1312 EXPLODED VIEW
DSW-1312 PARTS LIST OF EXPLODED VIEW
＊ Parts for which "nsp" is indicated on this table cannot be supplied.
＊ The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
Note: The symbols in the column "Remarks" indicate the following destinations.
E3 : U.S.A. and Canada model E2 : Europe model
Ref. No. Part No. Part Name Remarks Q'ty New
1 nsp CABINET ASSY
-
1 *
2 984323100060D DRIVER 304-00050-00 1 *
3 nsp SCREW S411-A4020E1J 16 *
4 984189000150D AMPLIFIER E2 326-W391CE-K0 1 *
4 984189000160D AMPLIFIER E3 326-W391UL-K0 1 *
5 nsp SAFETY LABEL E2 660-0W1312-00 1 *
5 nsp SAFETY LABEL E3 660-00W391-00 1 *
6 nsp SPEC LABEL E2 600-0W1312-00 1 *
6 nsp SPEC LABEL E3 600-1W1312-00 1 *
1
4
5
6
2
3

Denon AVR-1312 Specifications

General

Number of Channels	5.1
HDMI Inputs	4
HDMI Outputs	1
Amplification Type	Discrete
Input Sensitivity	200 mV
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Signal-To-Noise Ratio	98 dB
Digital Optical Inputs	2
Coaxial Digital Input	1
Analog Audio Inputs	4
Headphone Jack	Yes
Tuner Presets	56
Dimensions (W x H x D)	434 x 151 x 319 mm
Amplifier Type	Discrete
Tuner Type	AM/FM
Preset Stations	56
Remote Control	Yes
Dolby Technologies	Dolby Digital Plus, Dolby Pro Logic II, Dolby TrueHD
DTS Technologies	DTS-HD Master Audio
Output Power / Channel	75 W (8 Ohms, 20 Hz - 20 kHz, 2 channels driven, THD 0.08%)
Input Impedance	47 kOhms
Audio Inputs	2 Optical, 1 Coaxial, 4 Analog
Power Output	75W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
