Denon AVR-1312 Service Manual

11

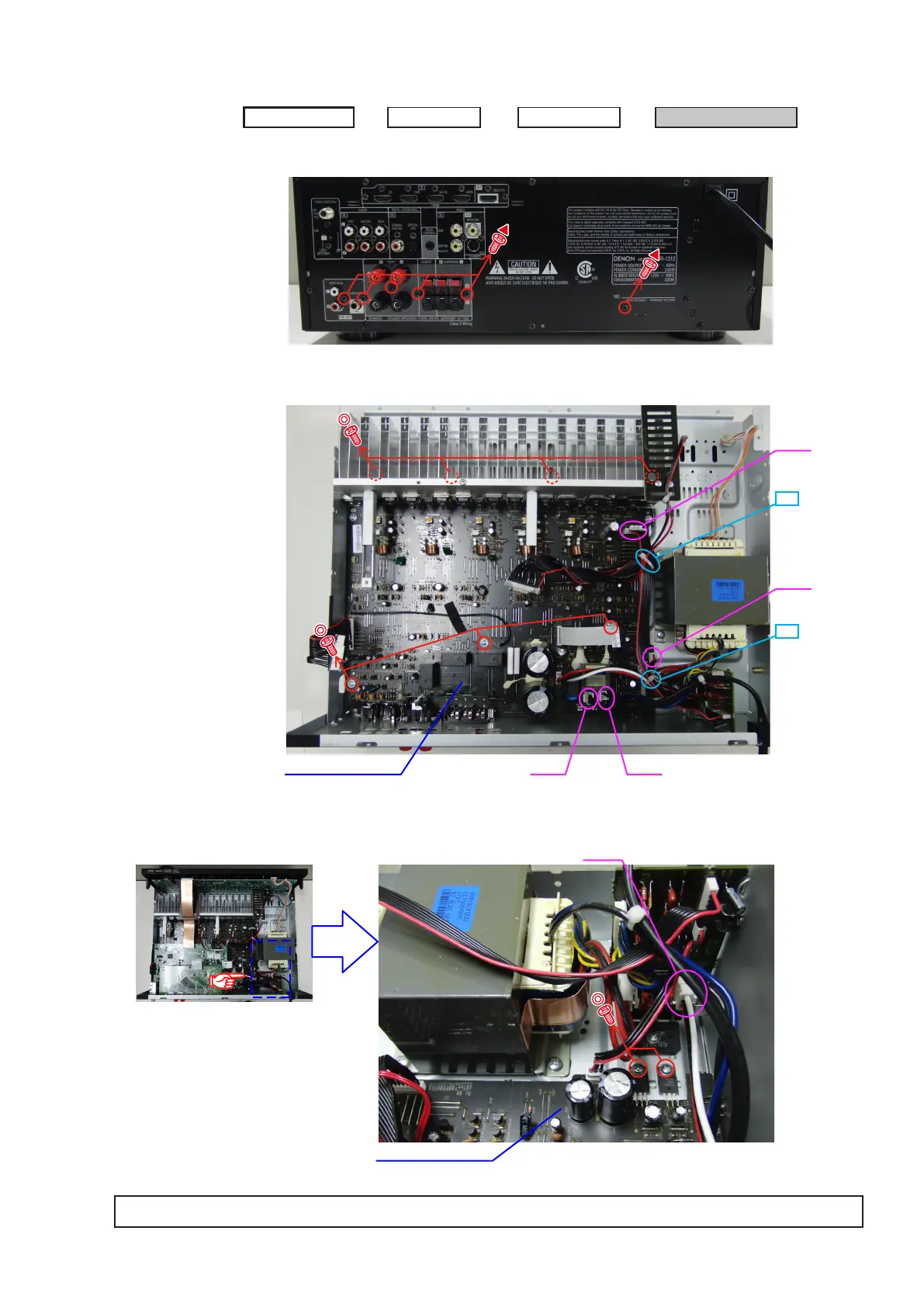

4. RADIATOR ASSY
(1) Remove the screws.
(2) Disconnect the connector wires, then remove the screws.
(3) Disconnect the connector wire, then remove the screws. Remove the RADIATOR ASSY from the main unit.
TOP COVER
HDMI UNIT
→
INPUT UNIT
→
RADIATOR ASSY
→
Proceeding :
Shooting direction: A
RADIATOR ASSY
CN45
CN47 CN48
CN46
cut
cut
Shooting direction: C
CN41
RADIATOR ASSY
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in RADIATOR ASSY.

Denon AVR-1312 Specifications

General

Number of Channels	5.1
HDMI Inputs	4
HDMI Outputs	1
Amplification Type	Discrete
Input Sensitivity	200 mV
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Signal-To-Noise Ratio	98 dB
Digital Optical Inputs	2
Coaxial Digital Input	1
Analog Audio Inputs	4
Headphone Jack	Yes
Tuner Presets	56
Dimensions (W x H x D)	434 x 151 x 319 mm
Amplifier Type	Discrete
Tuner Type	AM/FM
Preset Stations	56
Remote Control	Yes
Dolby Technologies	Dolby Digital Plus, Dolby Pro Logic II, Dolby TrueHD
DTS Technologies	DTS-HD Master Audio
Output Power / Channel	75 W (8 Ohms, 20 Hz - 20 kHz, 2 channels driven, THD 0.08%)
Input Impedance	47 kOhms
Audio Inputs	2 Optical, 1 Coaxial, 4 Analog
Power Output	75W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
