Denon AVR-1312 Service Manual

40
4. AUDIO

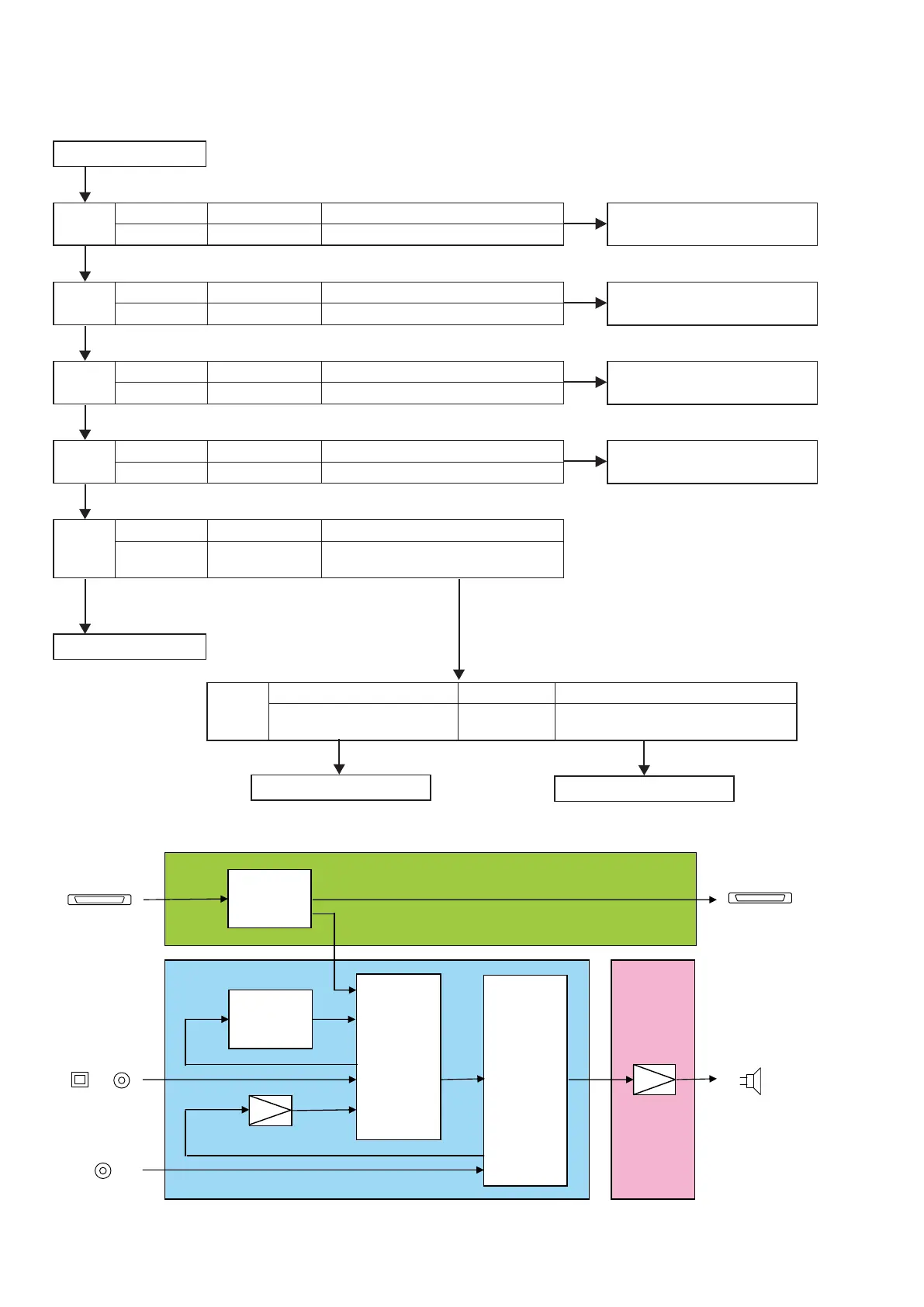

4.1. AUDIO CHECK
AUDIO OUTPUT : NG
Check ANALOG AUDIO BLOCK.
Check Digital AUDIO BLOCK.
Check via AD.
Check HDMI BLOCK.
Check other factors.
Check HDMI BLOCK.
Check Digital AUDIO BLOCK.
CHECK1
INPUT SURROND MODE SOURCE
ANALOG 2CH DIRECT ANALOG
CHECK2
INPUT SURROND MODE SOURCE
COAX or OPT --- Legacy(PCM or DolbyDigital or dts…)
CHECK4
INPUT SURROND MODE SOURCE
HDMI --- Legacy(PCM2ch or DolbyDigital or dts…)
CHECK6
Connect Setting SOURCE
HDMI OUT→other AVR HDMI IN TV MODE
HD AUDIO
(PCM MULTI or DolbyTrueHD or dtsHD MA)
CHECK5
INPUT SURROND MODE SOURCE
HDMI ---
HD AUDIO
(PCM MULTI or DolbyTrueHD or dtsHD MA)
CHECK3
INPUT SURROND MODE SOURCE
ANALOG 2CH 7ch STEREO ANALOG
OK
OK
OK
OK
OK
NG
NG
OK (Digital Audio BOLCK is OK)
NG
NG
NG
NG
HDMI
TRANSCEIVER
DIR + CODEC
FUNCTION
SELECTOR
+
VOLUME
①
②
③
④
⑤
HDMI UNIT
MAIN UNIT
INPUT UNIT
HDMI IN
HDMI OUT
OPT
IN
COAX
IN
DSP
Analog IN

Denon AVR-1312 Specifications

General

Number of Channels	5.1
HDMI Inputs	4
HDMI Outputs	1
Amplification Type	Discrete
Input Sensitivity	200 mV
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Signal-To-Noise Ratio	98 dB
Digital Optical Inputs	2
Coaxial Digital Input	1
Analog Audio Inputs	4
Headphone Jack	Yes
Tuner Presets	56
Dimensions (W x H x D)	434 x 151 x 319 mm
Amplifier Type	Discrete
Tuner Type	AM/FM
Preset Stations	56
Remote Control	Yes
Dolby Technologies	Dolby Digital Plus, Dolby Pro Logic II, Dolby TrueHD
DTS Technologies	DTS-HD Master Audio
Output Power / Channel	75 W (8 Ohms, 20 Hz - 20 kHz, 2 channels driven, THD 0.08%)
Input Impedance	47 kOhms
Audio Inputs	2 Optical, 1 Coaxial, 4 Analog
Power Output	75W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
