Denon AVR-1312 Service Manual

8

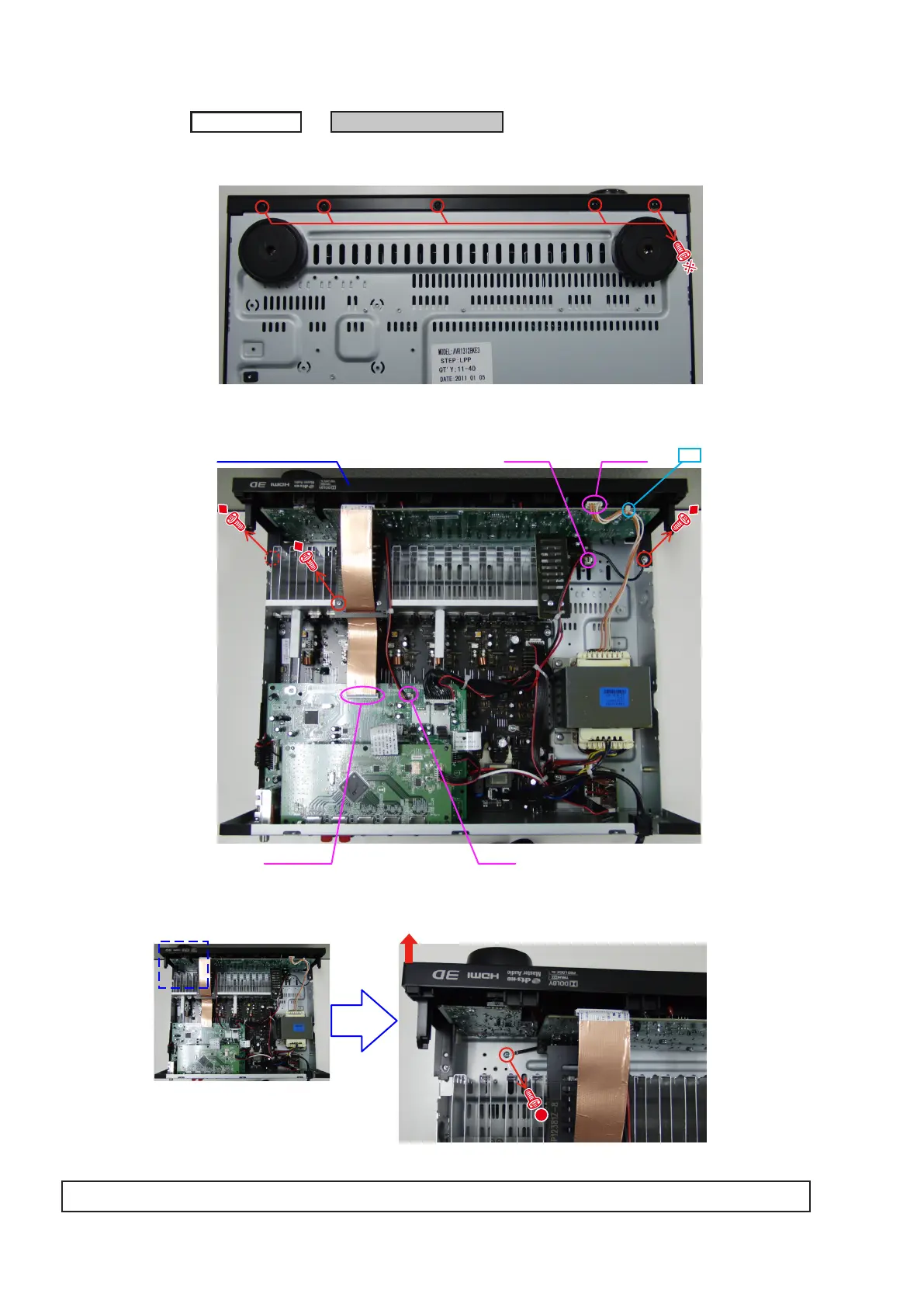

1. FRONT PANEL ASSY
(1) Remove the screws.
(2) Cut the wire clamp band, then disconnect the connector wires and FFC cable. Remove the screws.
(3) Remove the screws.
TOP COVER
FRONT PANEL ASSY
→
Proceeding :
View from the bottom
CN610
CN71FFC cable
CN603
cut
FRONT PANEL ASSY
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in FRONT PANEL ASSY.

Denon AVR-1312 Specifications

General

Number of Channels	5.1
HDMI Inputs	4
HDMI Outputs	1
Amplification Type	Discrete
Input Sensitivity	200 mV
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Signal-To-Noise Ratio	98 dB
Digital Optical Inputs	2
Coaxial Digital Input	1
Analog Audio Inputs	4
Headphone Jack	Yes
Tuner Presets	56
Dimensions (W x H x D)	434 x 151 x 319 mm
Amplifier Type	Discrete
Tuner Type	AM/FM
Preset Stations	56
Remote Control	Yes
Dolby Technologies	Dolby Digital Plus, Dolby Pro Logic II, Dolby TrueHD
DTS Technologies	DTS-HD Master Audio
Output Power / Channel	75 W (8 Ohms, 20 Hz - 20 kHz, 2 channels driven, THD 0.08%)
Input Impedance	47 kOhms
Audio Inputs	2 Optical, 1 Coaxial, 4 Analog
Power Output	75W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
