Denon AVR-1312 Service Manual

13

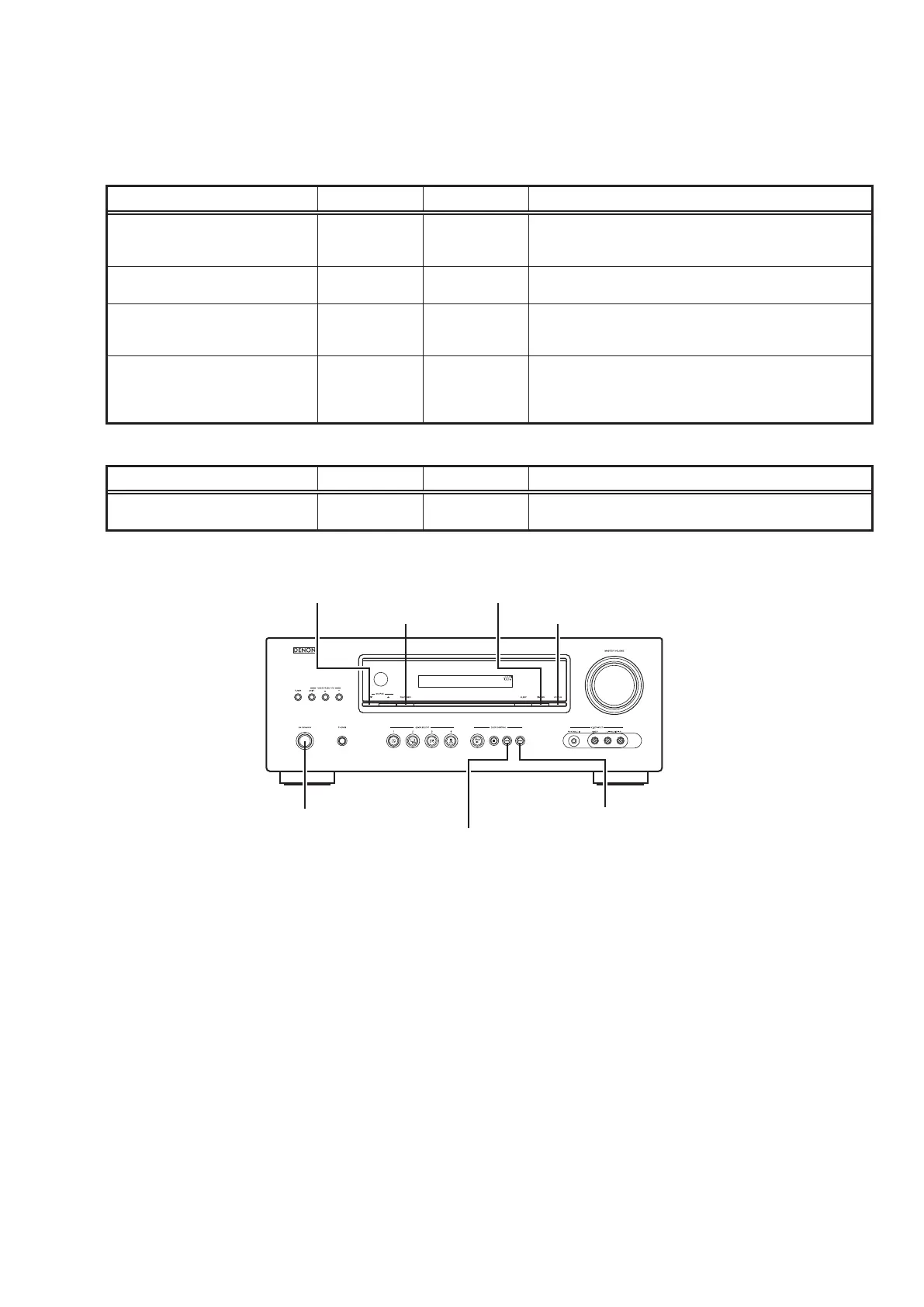

SPECIAL MODE
Special mode setting button
b
Press the ON/STANDBY button to turn on the power while pressing both the button A and the button B at the same
time.
Mode Button A Button B Contents
µcom/DSP Version display mode STATUS DIMMER
Firmware versions such as Main or DSP are displayed in the
FL display. Errors are displayed or when they occur.
(Refer to page 14 .)
Initialization mode
DOCK
CONTROL
8
DOCK
CONTROL
9
Backup data initialization is carried out. (Refer to page 6 .)
Mode for switching tuner frequency
step
DIMMER PRESET CH +
---E2 model only---
Change tuner frequency step to AM9k/FM50kHz STEP or
AM:10k/FM:200kHz.
Mode for preventing remote control
acceptance
RESTORER SOURCE
f
Operations using the remote control are rejected.
"REMOTE LOCK:ON" is displayed in FL display.
(Mode the cancellation: Turn off the power and execute the
same button operations as when performing setup.)
b
When power is turned on, pressing both buttons A and B at the same time for 3 seconds or more.
Mode Button A Button B Contents
Select the video signal format STATUS DIMMER
Select with the "+", "-" and iPod play button change video
format NTSC or PAL
ON/STANDBY
RESTORER
DIMMERSOURCE f
STATUS
DOCK CONTROL 8
DOCK CONTROL 9

Denon AVR-1312 Specifications

General

Number of Channels	5.1
HDMI Inputs	4
HDMI Outputs	1
Amplification Type	Discrete
Input Sensitivity	200 mV
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Signal-To-Noise Ratio	98 dB
Digital Optical Inputs	2
Coaxial Digital Input	1
Analog Audio Inputs	4
Headphone Jack	Yes
Tuner Presets	56
Dimensions (W x H x D)	434 x 151 x 319 mm
Amplifier Type	Discrete
Tuner Type	AM/FM
Preset Stations	56
Remote Control	Yes
Dolby Technologies	Dolby Digital Plus, Dolby Pro Logic II, Dolby TrueHD
DTS Technologies	DTS-HD Master Audio
Output Power / Channel	75 W (8 Ohms, 20 Hz - 20 kHz, 2 channels driven, THD 0.08%)
Input Impedance	47 kOhms
Audio Inputs	2 Optical, 1 Coaxial, 4 Analog
Power Output	75W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
