Denon AVR-1312 Service Manual

5
TECHNICAL SPECIFICATIONS
n
Audio Section
• Poweramplier
Rated output :
Front :
75 W + 75 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
110 W + 110 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Center :
75 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
110 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Surround :
75 W + 75 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
110 W + 110 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Output connectors : 6 – 16 Ω
• Analog
Input sensitivity/Input impedance : 200 mV/47 kΩ
Frequency response: 10 Hz – 100 kHz — 0, –3 dB (DIRECT mode)
S/N : 98 dB (IHF–A weighted, DIRECT mode)
n
Tuner section
[FM](Note: μV at 75 Ω, 0 dBf = 1 x 10
–15
W)
Receiving Range (for E3) :
[FM] 87.5 MHz – 107.9 MHz [AM]520 kHz – 1710 kHz
Receiving Range (for E2, EA, E1C) :
[FM] 57.5 MHz – 108.0 MHz [AM]522 kHz – 1611 kHz
Usable Sensitivity :
[FM]1.2 μV (12.8 dBf) [AM]18 μV
50 dB Quieting Sensitivity :
[FM]MONO 2.8 μV (20.2 dBf)
S/N (IHF-A) :
[FM]MONO 70 dB
STEREO 67 dB
Total harmonic Distortion (at 1 kHz) :
[FM]MONO 0.7 %
STEREO 1.0 %
n
General
Power supply (for E3) : AC 120 V, 60 Hz
(for E2, EA) : AC 230 V, 50 Hz / 60Hz
(for E1C) : AC 220 V, 50 Hz
Power consumption :
330 W
0.5 W (Standby)
Maximum external dimensions :
435 (W) x 162 (H) x 382 (D) mm
Weight : 9.2 kg
n
Remote Control Unit (RC-1158)
Batteries : R03/AAA Type (two batteries)
Maximum external dimensions : 50 (W) x 211 (H) x 22 (D) mm
Weight : 110 g (including batteries)

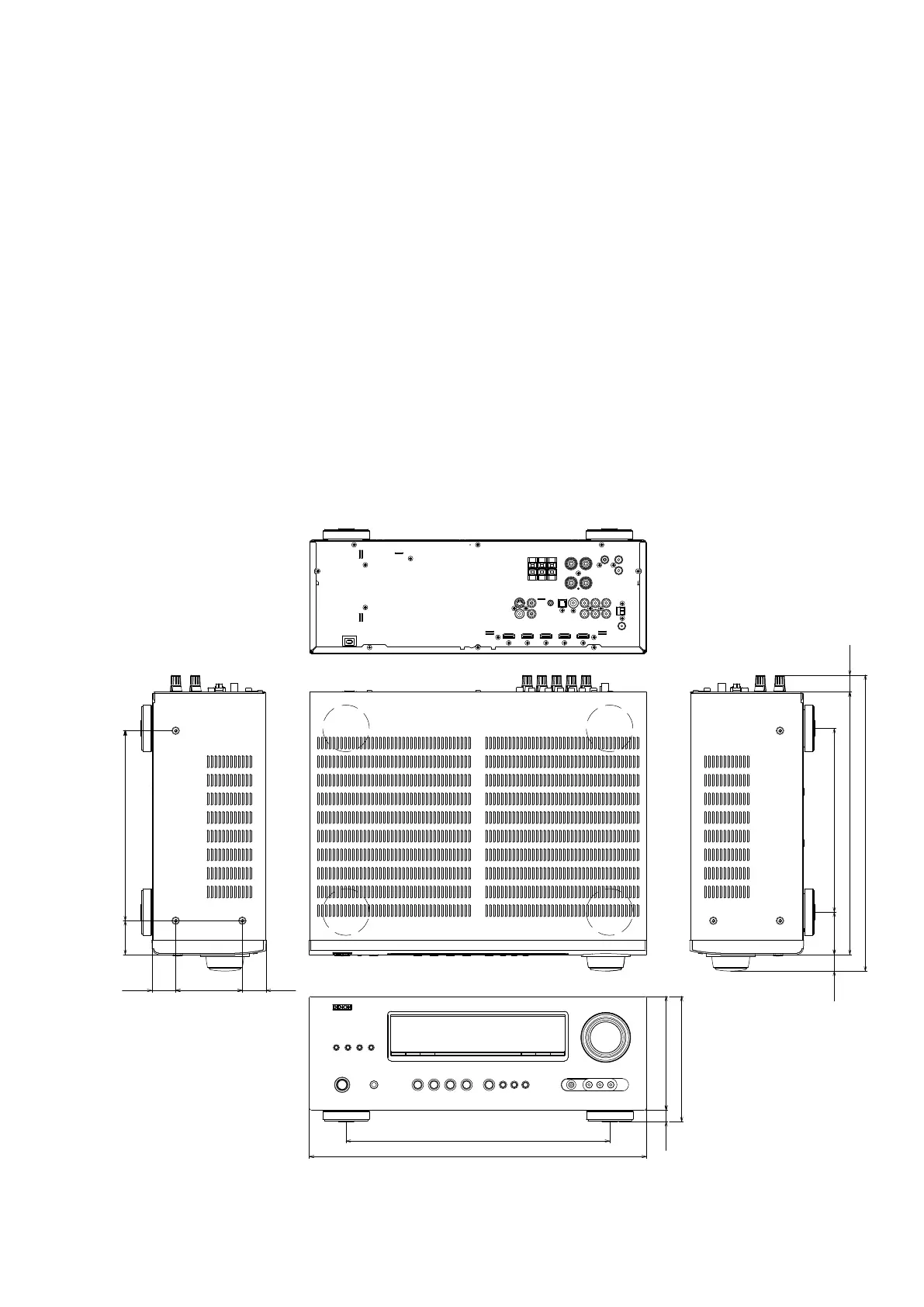

DIMENSION
245.0
43.5
30.5
340.0
435.0
15.0 147.0
162.0
21.5
54.7
236.8
338.5
382.0
22.0
86.0
30.5

Denon AVR-1312 Specifications

General

Number of Channels	5.1
HDMI Inputs	4
HDMI Outputs	1
Amplification Type	Discrete
Input Sensitivity	200 mV
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Signal-To-Noise Ratio	98 dB
Digital Optical Inputs	2
Coaxial Digital Input	1
Analog Audio Inputs	4
Headphone Jack	Yes
Tuner Presets	56
Dimensions (W x H x D)	434 x 151 x 319 mm
Amplifier Type	Discrete
Tuner Type	AM/FM
Preset Stations	56
Remote Control	Yes
Dolby Technologies	Dolby Digital Plus, Dolby Pro Logic II, Dolby TrueHD
DTS Technologies	DTS-HD Master Audio
Output Power / Channel	75 W (8 Ohms, 20 Hz - 20 kHz, 2 channels driven, THD 0.08%)
Input Impedance	47 kOhms
Audio Inputs	2 Optical, 1 Coaxial, 4 Analog
Power Output	75W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
