Denon AVR-1312 Service Manual

69

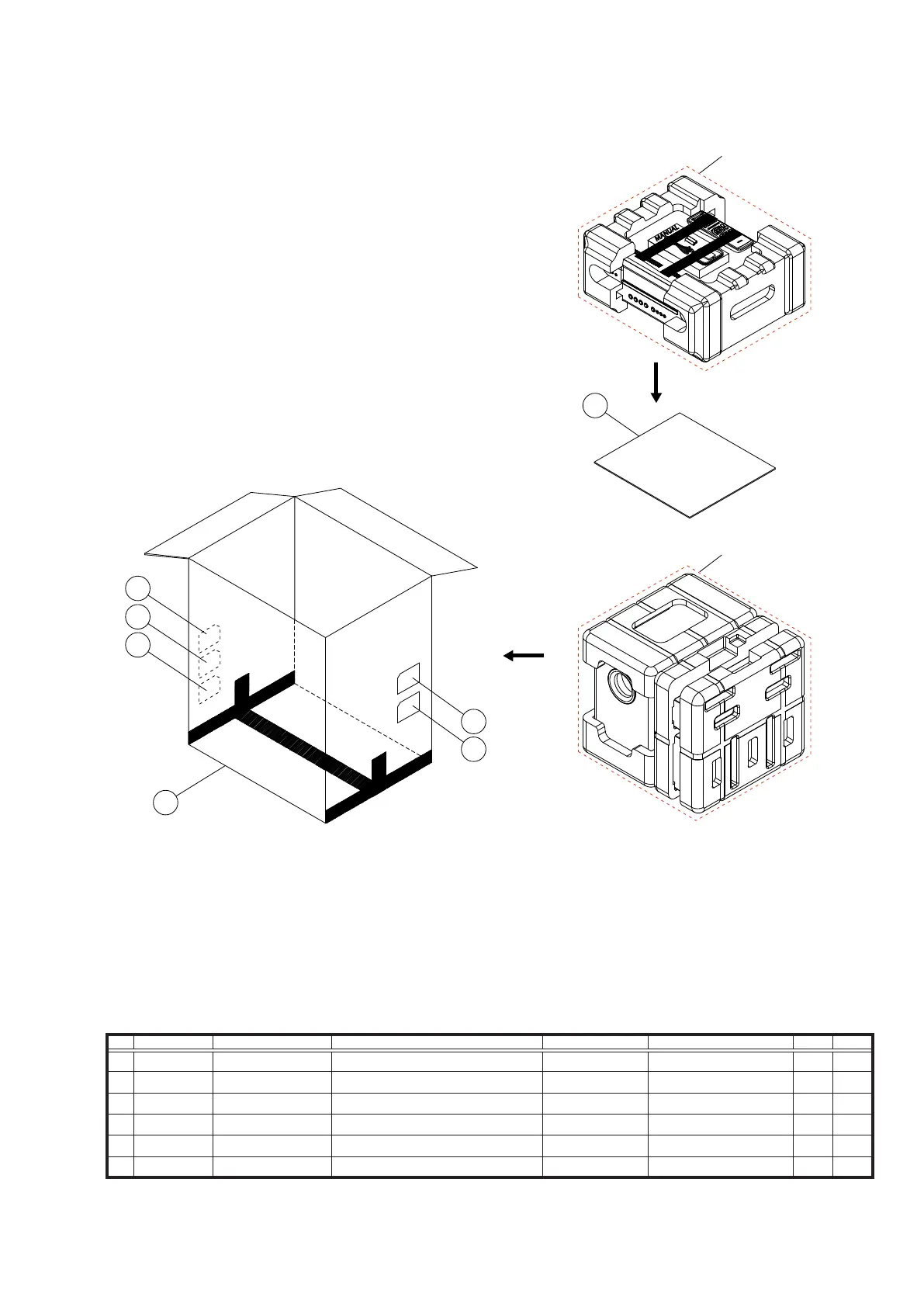

PACKING VIEW (for DHT-1312XP)
s
PARTS LIST OF PACKING & ACCESSORIES (for DHT-1312XP)
s
z
Parts indicated by "nsp" on this table cannot be supplied.
z
Parts indicated by the "
★
" mark are not illustrated in the exploded view.
z
The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions.
Note: The symbols in the column "Remarks" indicate the following destinations.
E3 : U.S.A. & Canada model E2 : Europe model
Ref.No. Part No. Part Name Remarks Q'ty New
1 943531101920D OUTCARTON BOX CPG1A957 1 *
2 943537100190D PAD BOX CPG1A958 1 *
3 nsp CONTROL LABEL DHT1312XPE3,E2 CQB1A993Z 1
4 nsp CONTROL LABEL SYS1312 CQB1A1076Z 1
5 nsp ATCM LABEL DHT1312XPE3 CQB1A1077Z 1
★
6 54111074000AD INST.MANUAL SYS1312 SYS1312 CQX1A1628Z 1 *
MANUAL
1
2
SYS-1312
(Refer to page 107,108.)
AVR-1312
(Refer to page 67,68.)
4
3
5
4
3

Denon AVR-1312 Specifications

General

Number of Channels	5.1
HDMI Inputs	4
HDMI Outputs	1
Amplification Type	Discrete
Input Sensitivity	200 mV
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Signal-To-Noise Ratio	98 dB
Digital Optical Inputs	2
Coaxial Digital Input	1
Analog Audio Inputs	4
Headphone Jack	Yes
Tuner Presets	56
Dimensions (W x H x D)	434 x 151 x 319 mm
Amplifier Type	Discrete
Tuner Type	AM/FM
Preset Stations	56
Remote Control	Yes
Dolby Technologies	Dolby Digital Plus, Dolby Pro Logic II, Dolby TrueHD
DTS Technologies	DTS-HD Master Audio
Output Power / Channel	75 W (8 Ohms, 20 Hz - 20 kHz, 2 channels driven, THD 0.08%)
Input Impedance	47 kOhms
Audio Inputs	2 Optical, 1 Coaxial, 4 Analog
Power Output	75W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
