TECHNICAL SPECIFICATIONS
DIMENSION
n
Center speaker
G
SC-C1312
H
Type:
Full-range, 1-speaker
Closed box
Drive units:
8 cm cone full range x 1
Input impedance:
6 Ω
Max. input:
60 W (IEC)
120 W (PEAK)
Frequency range:
150 Hz – 20 kHz
Dimensions:
200 (W) x 105 (H) x 150 (D) mm
(7-7/8” x 4-9/64” x 5-29/32”)
Weight:
0.8 kg (1 lbs 12 oz)
n
Front and Surround speaker
G
SC-F1312(F) (SC-F1312(R))
H
Type:
Full-range, 1-speaker
Closed box
Drive units:
8 cm cone full range x 1
Input impedance:
6 Ω
Max. input:
60 W (IEC)
120 W (PEAK)
Frequency range:
150 Hz – 20 kHz
Dimensions:
105 (W) x 200 (H) x 150 (D) mm
(4-9/64” x 7-7/8” x 5-29/32”)
Weight:
0.8 kg (1 lbs 12 oz)
150
200
130
105

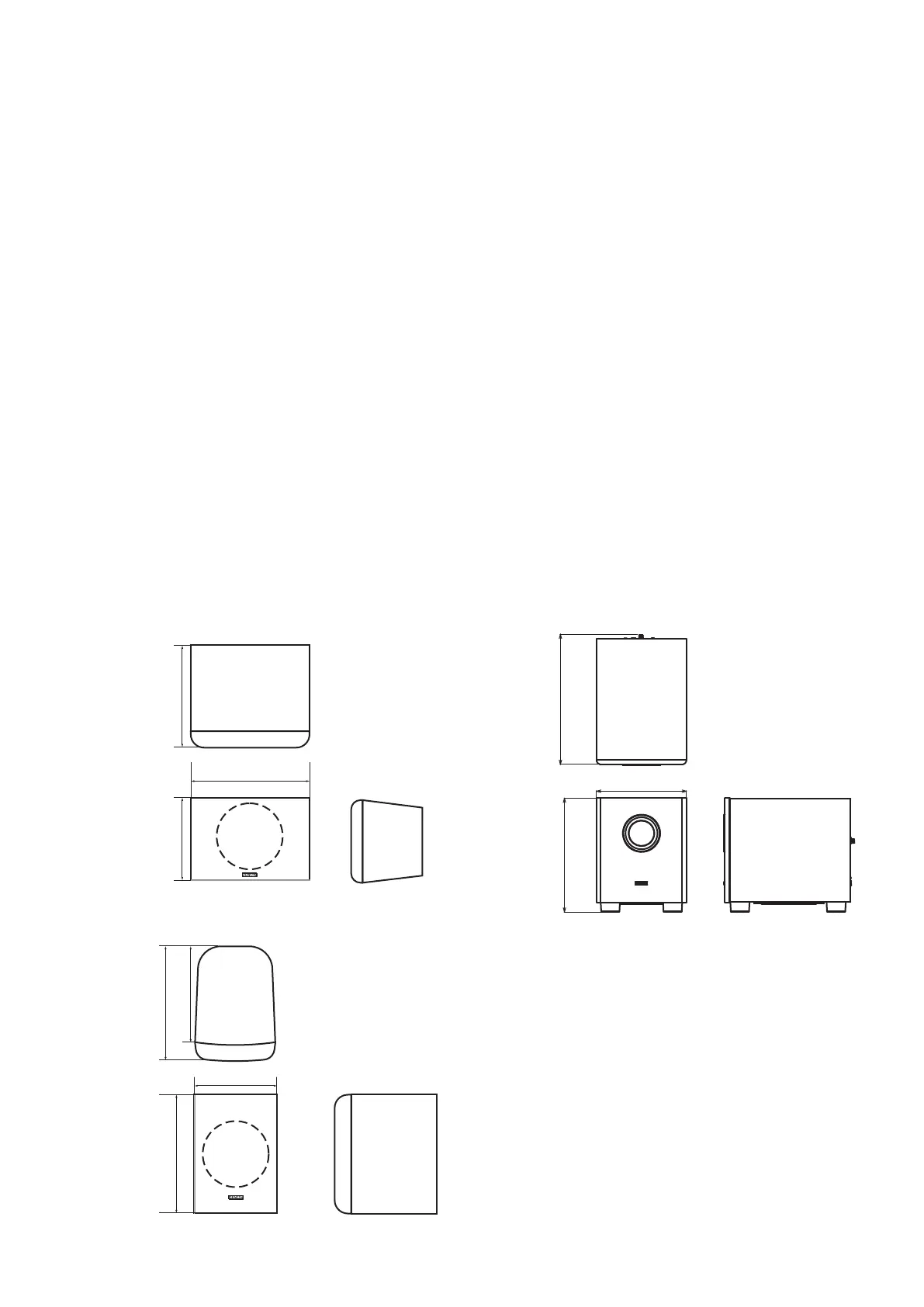

GSC-F1312(F)(SC-F1312(R))H
200
105
150
GSC-C1312H
n
Subwoofer
G
DSW-1312
H
Type:
Reex box
Built-in amplier
Drive unit:
20 cm cone woofer x 1
Frequency range:
35 Hz – 150 Hz
Dynamic power:
100 W
Input impedance:
22 kΩ
Power supply:
120 V / 60 Hz (North American)
230 V / 50 Hz (European model)
Power consumption:
65 W
MAX. 0.5 W (Standby)
Dimensions:
250 (W) x 387 (H) x 420 (D) mm
(9-27/32” x 15-15/64” x 16-17/32”)
Weight:
11 kg (24 lbs 4 oz)
SYS-1312 section
s
SPEAKER SYSTEM PACK
GDSW-1312H
420
387
250

Denon AVR-1312 Specifications

General

Number of Channels	5.1
HDMI Inputs	4
HDMI Outputs	1
Amplification Type	Discrete
Input Sensitivity	200 mV
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Signal-To-Noise Ratio	98 dB
Digital Optical Inputs	2
Coaxial Digital Input	1
Analog Audio Inputs	4
Headphone Jack	Yes
Tuner Presets	56
Dimensions (W x H x D)	434 x 151 x 319 mm
Amplifier Type	Discrete
Tuner Type	AM/FM
Preset Stations	56
Remote Control	Yes
Dolby Technologies	Dolby Digital Plus, Dolby Pro Logic II, Dolby TrueHD
DTS Technologies	DTS-HD Master Audio
Output Power / Channel	75 W (8 Ohms, 20 Hz - 20 kHz, 2 channels driven, THD 0.08%)
Input Impedance	47 kOhms
Audio Inputs	2 Optical, 1 Coaxial, 4 Analog
Power Output	75W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
