Denon AVR-1611 User Manual

15
ENGLISH
Advanced versionSimple version InformationBasic version
About ARC (Audio return channel) function
The Audio Return Channel in HDMI 1.4a enables a TV, via a single HDMI cable, to send audio data
“upstream” to this unit.
NOTE
• To enable the ARC function,set “HDMI Control” to “ON” (vpage51).
• When connecting a TV that does not support the ARC function, a separate audio cable is required. In this
case, refer to “Connecting a TV” (vpage16) for the connection method.
About Content Type
The HDMI Specification Version 1.4a enables simple, automated picture setting selection with no user
intervention.
NOTE
To enable the Content type, set “Video Mode” to “Auto” (vpage42).
Cables used for connections
Audio and video cable (sold separately)
HDMI cable
• This interface allows transfer of digital video signals and digital audio signals over a single HDMI cable.
OUT
HDMI
OUT
HDMI
OUT
HDMI
OUT
HDMI
IN
HDMI
Blu-ray Disc
player
DVD player TV
Set-top box
Game
console

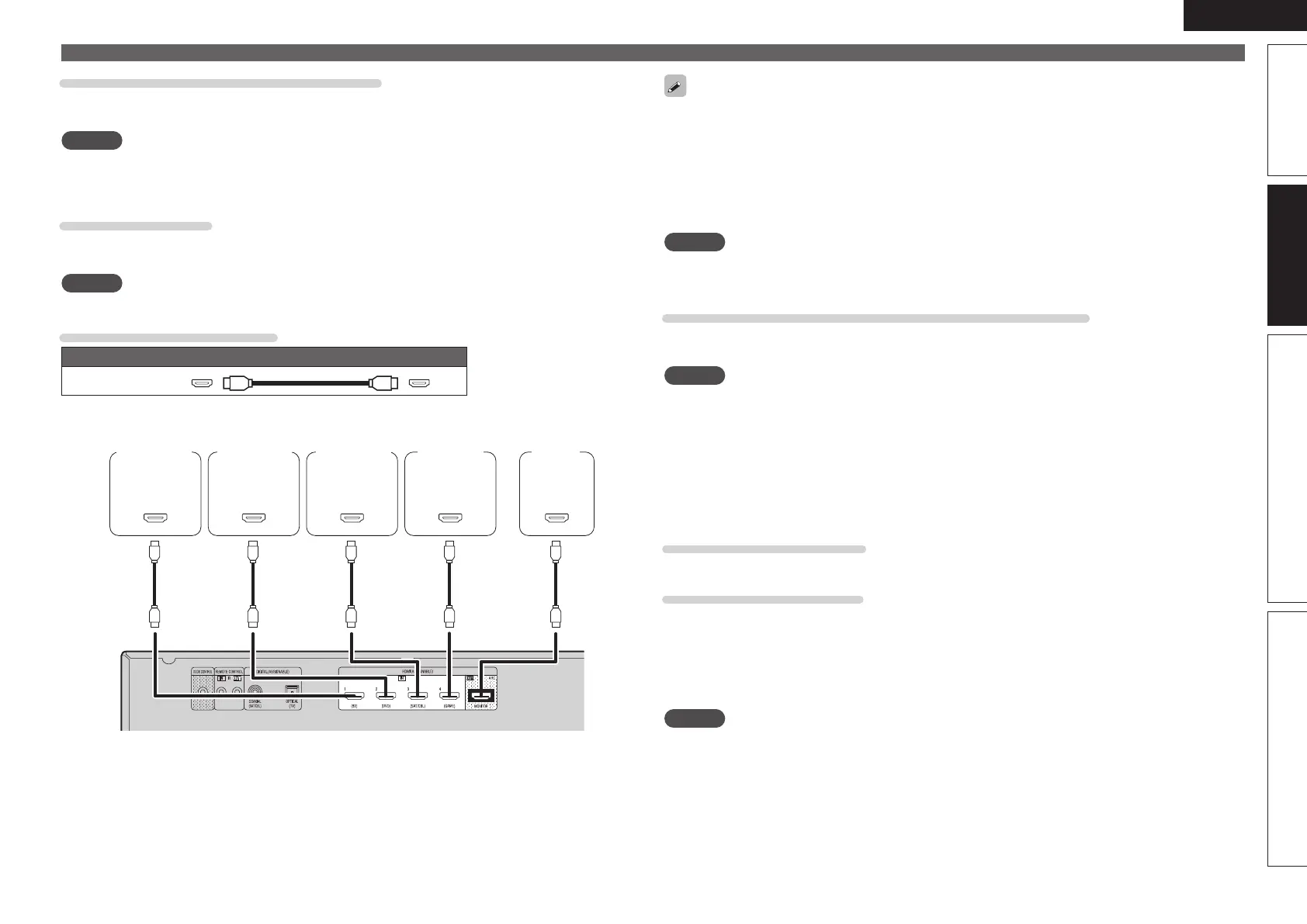

Connecting an HDMI-compatible device
• When this unit is connected to other devices with HDMI cables, connect this unit and TV also with an
HDMI cable.
• When connecting a device that supports Deep Color transmission, please use a “High Speed HDMI
cable” or “High Speed HDMI cable with Ethernet”.
• Video signals are not output if the input video signals do not match the monitor’s resolution. In this case,
switch the Blu-ray Disc/DVD player’s resolution to a resolution with which the monitor is compatible.
• When this unit and monitor are connected with an HDMI cable, if the monitor is not compatible with
HDMI audio signal playback, only the video signals are output to the monitor.
NOTE
The audio signal from the HDMI output connector (sampling frequency, number of channels, etc.) may be
limited by the HDMI audio specifications of the connected device regarding permissible inputs.
Connecting to a device equipped with a DVI-D connector
When an HDMI/DVI conversion cable (sold separately) is used, the HDMI video signals are converted to
DVI signals, allowing connection to a device equipped with a DVI-D connector.
NOTE
• No sound is output when connected to a device equipped with a DVI-D connector. Make separate audio
connections.
• Signals cannot be output to DVI-D devices that do not support HDCP.
• Depending on the combination of devices, the video signals may not be output.
n Settings related to HDMI connections
Set as necessary. For details, see the respective reference pages.
Input Assign (vpage41)
Set this to change the HDMI input connector to which the input source is assigned.
HDMI Setup (vpage51)
Make settings for HDMI video/audio output.
• Auto Lip Sync
• HDMI Audio Out
• HDMI Control
• Standby Source
• Power Off Control
NOTE
The audio signals output from the HDMI connectors are only the HDMI input signals.

Denon AVR-1611 Specifications

General

Impedance	6 Ω
Frequency range	10 - 100000 Hz
Audio output channels	5.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	98 dB
Total Harmonic Distortion (THD)	0.7 %
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Radio Data System (RDS)	Yes
Audio system	Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, DTS-HD, DTS 96/24
Output power	110 W
Dimensions (WxDxH)	434 x 381 x 171 mm
Power requirements	AC 230, 50 Hz
HDMI ports quantity	5
I/O ports	1 x Component 3 x Composite (Video) 5 x Analogue Audio (Tuner included) 1 x Composite Monitor 1 x Microphone Port 1 x Dock Control Port 1 x FM Tuner Antenna 1 x AM Tuner Antenna
Connectivity technology	Wired
Digital audio optical in	1
Product color	Black
Power consumption (standby)	0.1 W
Power consumption (typical)	360 W

Weight and Dimensions

Weight	9200 g
