Denon AVR-1611 User Manual

35
ENGLISH
Basic versionSimple version InformationAdvanced version

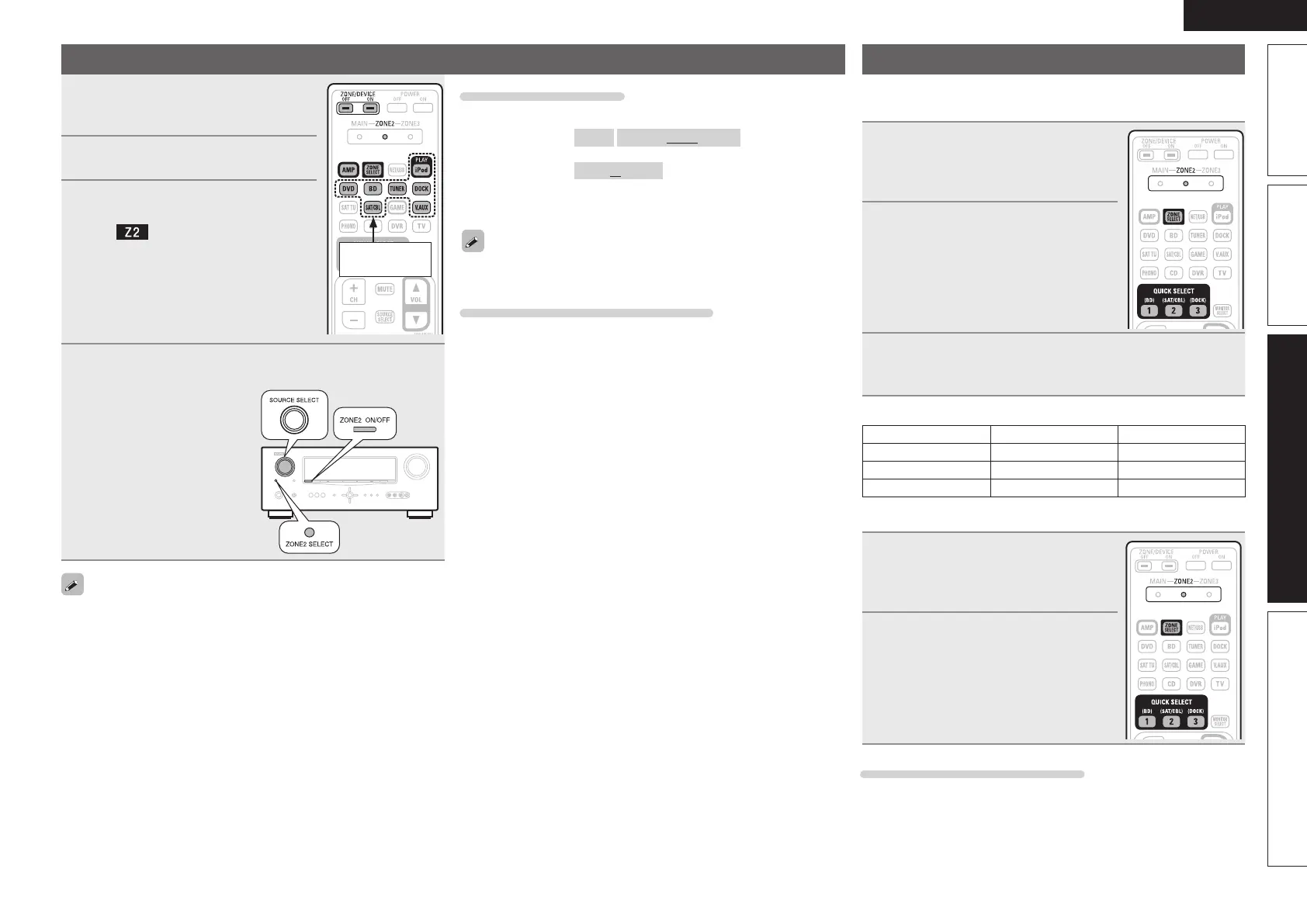

Playback
1
Switch ZONE SELECT to “ZONE2”.
The remote control unit switches to the
operating mode for ZONE2.
Input source
select buttons
2
Press AMP.
3
Press ZONE/DEVICE ON to turn
on the ZONE2 power.
The indicator on the display lights.
• Also, pressing any of input source select
button in standby mode turns on the power.
• When
ZONE/DEVICE OFF is pressed, ZONE2
turns off.
• Power in ZONE2 can be turned on or off by
pressing ZONE2 ON/OFF on the main unit.
4
Press the input source select button.
The audio signal of the selected source is output to ZONE2.
• Turn
SOURCE SELECT after
pressing ZONE2 SELECT on
the main unit to select an input
source.
When power for both MAIN ZONE and ZONE2 is set to ON, power of
the MAIN ZONE only can be turned off. Select “MAIN” in step 1 then
press ZONE/DEVICE OFF.
Adjusting the volume
Use VOL df to adjust the volume.
GAdjustable rangeH
– – – –80dB – –40dB – 18dB
(When the “Volume Display” (vpage53) setting is “Relative”)
GAdjustable rangeH
0 – 41 – 99
(When the “Volume Display” (vpage53) setting is “Absolute”)
• At the time of purchase, “Volume Limit” (vpage 53) is set to
“–10dB (71)”.
Turn MASTER VOLUME after pressing ZONE2 SELECT on the main
unit to adjust the sound volume.
Turning off the sound temporarily
Press MUTE.
The sound is reduced to the level set at “Mute Level” (vpage53) in
the menu.
• To cancel, either adjust the volume or press MUTE again.
• The setting is canceled when the zone’s power is turned off.
Quick select function
It is also possible to save three settings for ZONE2.
n Saving the settings
1
Set the items below to the settings
you want to save.
q Input source (vpage35)
w Volume (vpage35)
2
Switch ZONE SELECT to
“ZONE2”.
The remote control unit switches to the
operating mode for ZONE2.
3
Press and hold the desired QUICK SELECT button until
“Memory” appears on the display.
The current settings will be memorized.
GQuick select defaultsH
Input Source Volume
QUICK SELECT 1 BD –40dB
QUICK SELECT 2 SAT/CBL –40dB
QUICK SELECT 3 DOCK –40dB
n Recalling the settings
1
Switch ZONE SELECT to
“ZONE2”.
The remote control unit switches to the
operating mode for ZONE2.
2
Press QUICK SELECT at which the
settings you want to call out are
saved.
Naming quick select settings
See “Quick Select Name” (vpage54).

Denon AVR-1611 Specifications

General

Impedance	6 Ω
Frequency range	10 - 100000 Hz
Audio output channels	5.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	98 dB
Total Harmonic Distortion (THD)	0.7 %
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Radio Data System (RDS)	Yes
Audio system	Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, DTS-HD, DTS 96/24
Output power	110 W
Dimensions (WxDxH)	434 x 381 x 171 mm
Power requirements	AC 230, 50 Hz
HDMI ports quantity	5
I/O ports	1 x Component 3 x Composite (Video) 5 x Analogue Audio (Tuner included) 1 x Composite Monitor 1 x Microphone Port 1 x Dock Control Port 1 x FM Tuner Antenna 1 x AM Tuner Antenna
Connectivity technology	Wired
Digital audio optical in	1
Product color	Black
Power consumption (standby)	0.1 W
Power consumption (typical)	360 W

Weight and Dimensions

Weight	9200 g
