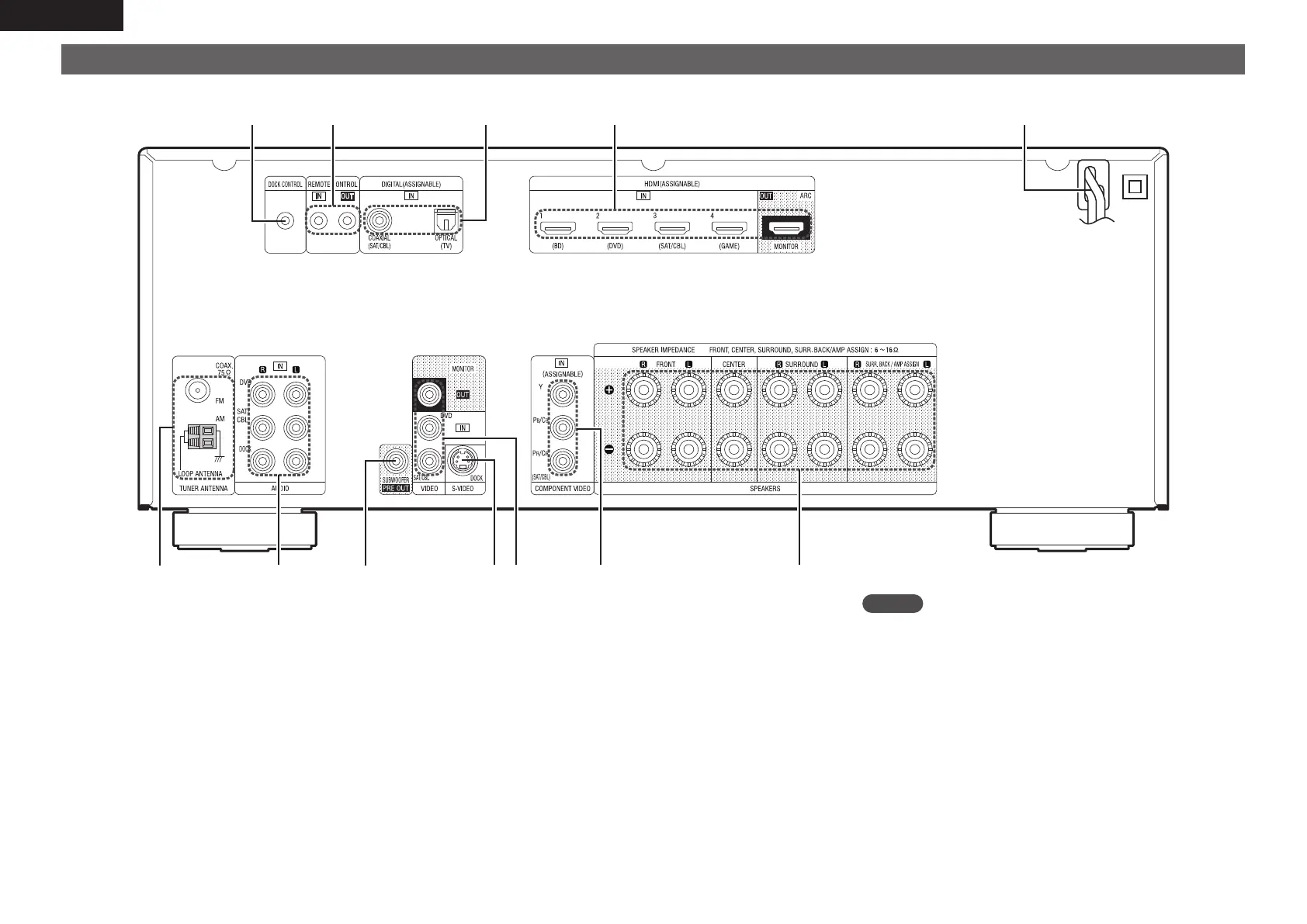

Rear panel
See the page indicated in parentheses ( ).
q w e r t y u
o
Q1 Q0Q2 i
q FM/AM antenna terminals ····················································· (18)
w Analog audio connectors ·················································(16 – 18)
e PRE OUT connector ······················································· (5, 29, 30)
r S-VIDEO connector ································································· (18)
t VIDEO connectors ····························································· (16, 17)
y COMPONENT VIDEO connectors ··········································· (17)
u Speaker terminals ························································· (5, 29, 30)
i Power cord ················································································· (5)
o HDMI connectors ····································································· (15)
Q0 Digital audio connectors ··················································· (16, 17)
Q1 REMOTE CONTROL jacks ······················································· (19)
Q2 DOCK CONTROL jack ······························································ (18)
NOTE
Do not touch the inner pins of the connectors on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.

Denon AVR-1611 Specifications

General

Impedance	6 Ω
Frequency range	10 - 100000 Hz
Audio output channels	5.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	98 dB
Total Harmonic Distortion (THD)	0.7 %
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Radio Data System (RDS)	Yes
Audio system	Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, DTS-HD, DTS 96/24
Output power	110 W
Dimensions (WxDxH)	434 x 381 x 171 mm
Power requirements	AC 230, 50 Hz
HDMI ports quantity	5
I/O ports	1 x Component 3 x Composite (Video) 5 x Analogue Audio (Tuner included) 1 x Composite Monitor 1 x Microphone Port 1 x Dock Control Port 1 x FM Tuner Antenna 1 x AM Tuner Antenna
Connectivity technology	Wired
Digital audio optical in	1
Product color	Black
Power consumption (standby)	0.1 W
Power consumption (typical)	360 W

Weight and Dimensions

Weight	9200 g
