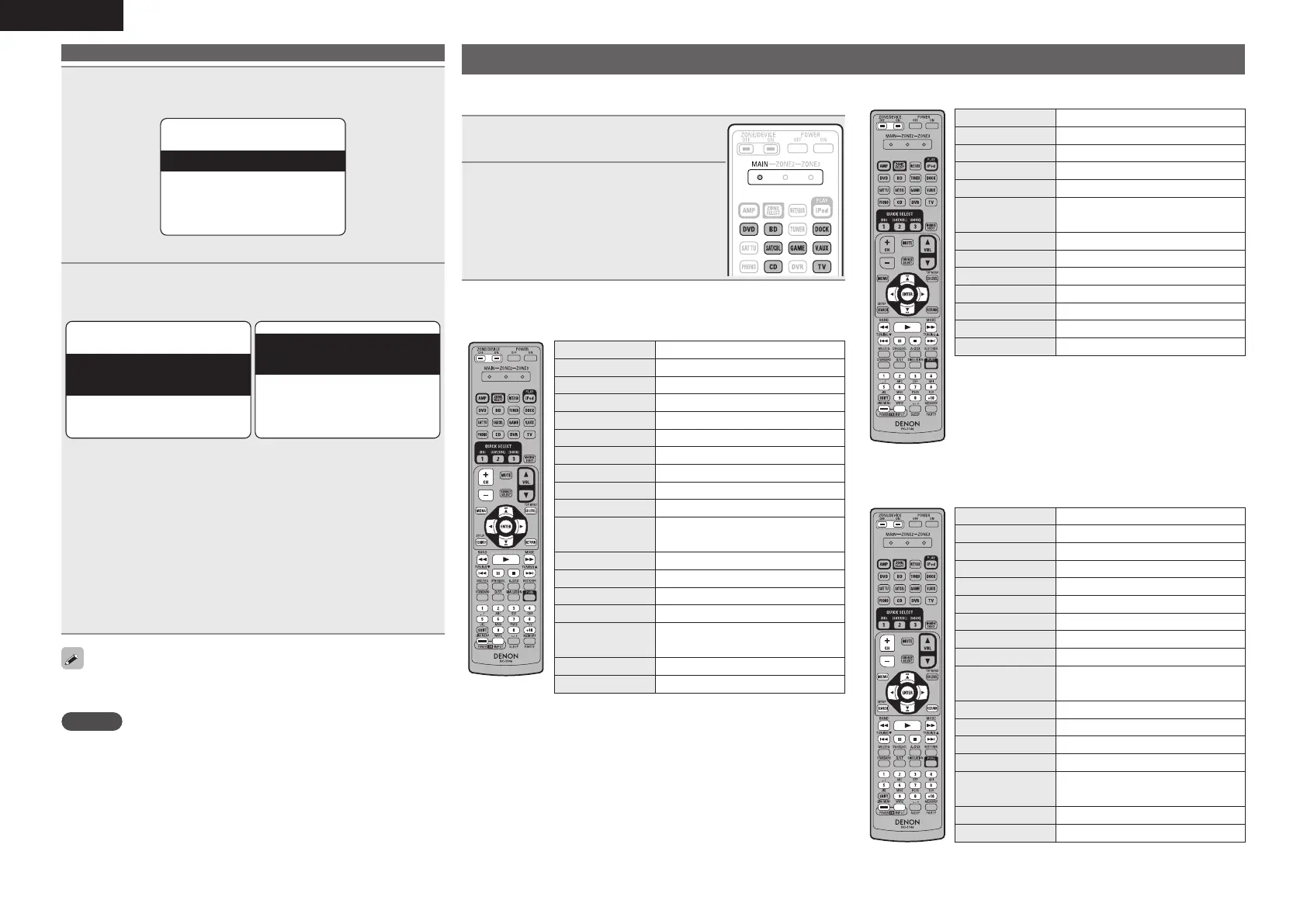

Denon AVR-1611 User Manual

58
ENGLISH
Registering preset codes
Operating components
The supplied remote control unit can control a component other than
this unit.
1
Switch the input source
(vpage 19).
2
Operate the component.
• For details, refer to the component’s
operating instructions.
n Blu-ray Disc player / HD-DVD player /
DVD player / DVD recorder operation
Operation buttons Function
ZONE/DEVICE ON
Power onz
ZONE/DEVICE OFF
Power standbyz
CH +, – Switch channels (up/down)
MENU (Popup) Menu
TOP MENU Top menu
uio p
Cursor operation
ENTER Enter setting
SETUP Setup
RETURN Return
6 7
Manual search
(fast-reverse/fast-forward)
1
Playback
8 9
Auto search (cue)
3
Pause
2
Stop
0 – 9, +10
Select title, chapter or channel
selection
TV POWER TV power on/standby (Default : SONY)
TV INPUT Switch TV input (Default : SONY)
zThis may power some devices on/standby.
n CD player / CD recorder operation
Operation buttons Function
ZONE/DEVICE ON
Power onz
ZONE/DEVICE OFF
Power standbyz
uio p
Cursor operation
ENTER Enter setting
6 7
Manual search
(fast-reverse/fast-forward)
1
Playback
8 9
Auto search (cue)
3
Pause
2
Stop
0 – 9, +10 Track selection
TV POWER TV power on/standby (Default : SONY)
TV INPUT Switch TV input (Default : SONY)
n Digital video recorder (PVR) /
video cassette recorder (VCR) operation
Operation buttons Function
ZONE/DEVICE ON
Power onz
ZONE/DEVICE OFF
Power standbyz
CH +, – Switch channels (up/down)
MENU Menu
uio p
Cursor operation
ENTER Enter setting
SETUP Setup
RETURN Return
6 7
Manual search
(fast-reverse/fast-forward)
1
Playback
8 9
Auto search (cue)
3
Pause
2
Stop
0 – 9, +10
Select title, chapter or channel
selection
TV POWER TV power on/standby (Default : SONY)
TV INPUT Switch TV input (Default : SONY)
13
The screen shown below is displayed, and registration
of the preset code is completed.
Remote Preset Codes
setup is finished.
Press [AMP]button.
And Press [Enter]button
to return MENU.
[ENT]:OK
• The menu screen is retrieved. Press AMP then ENTER.
14
Either of the screens below is displayed.
Selected code is not
matched.
Please try other codes
q w
Sorry. your remote is
This function can not
not supported.
be used for your device
Press [AMP]button.
And Press [Enter]button
to return MENU.
[ENT]:OK
• The screen is displayed for 3
seconds, then the next preset
registration screen is displayed
automatically.
GIf screen q is displayedH
The device may be operating with the preset code displayed next.
The preset registration screen is displayed. Repeat steps 9 to 12.
GIf screen w is displayedH
The device cannot be controlled with the remote control unit supplied
with this unit. Use the remote control unit supplied with the device
to be used. The menu screen is retrieved. Press
AMP then ENTER.
Some manufacturers use more than one type of remote control code.
Preset codes to change the number and verify correct operation.
NOTE
Depending on the model and year of manufacture of your equipment,
some buttons may not operate.
