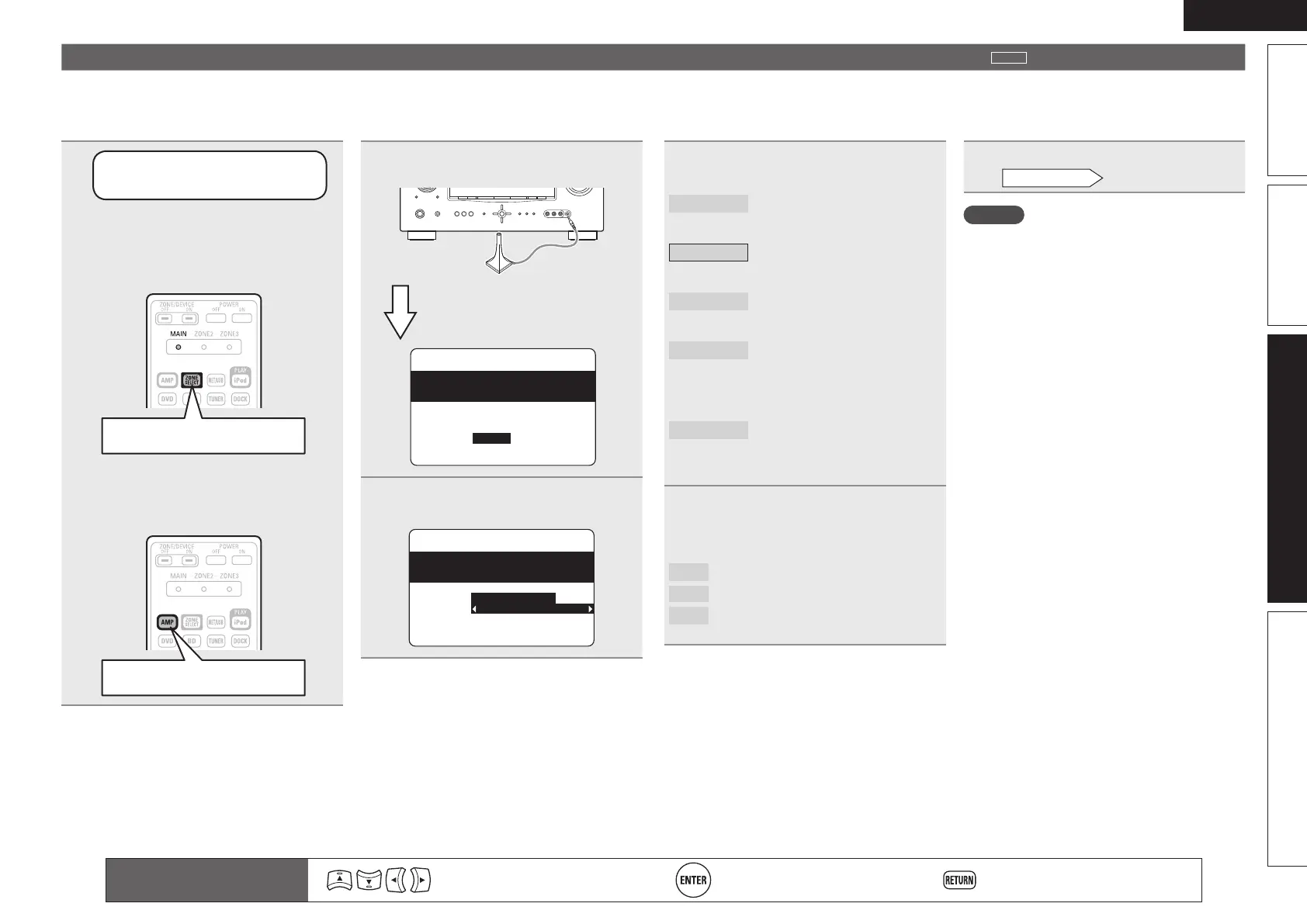

Denon AVR-1611 User Manual

31
ENGLISH
Basic versionSimple version InformationAdvanced version
1
Set up
the remote control unit
n Set up the zone mode
Press ZONE SELECT to switch the
zone mode to “MAIN”.
The “MAIN” indicator lights.
Press ZONE SELECT
n Set up the operation mode
Press AMP to set the remote control
unit to amplier operation mode.
Press AMP
2
Connect the setup microphone.
3-1.Audyssey Auto Setup
MultEQ
at ear height at
ZONE2
Amp Assign:
Start
Cancel
[ENT]:Select [RTN]:Back
Please place microphone
main listening position.
When the setup microphone is
connected, the following screen is
displayed.
3
Use ui to select “Amp Assign”.
3-1.Audyssey Auto Setup
MultEQ
at ear height at
ZONE2
Amp Assign:
Start
Cancel
[RTN]:Back
Please place microphone
main listening position.
Set up speakers
around items indicate the settings.
Here we describe how to set up speakers other than 5.1-channel speakers.
For the method of setting up 5.1-channel speakers, see “Simple version”, “Set up speakers (Audyssey
®
Auto Setup)” (vpage6).
First install and connect the speakers to this unit.
4
Use o p to select the conguration
of the connected speakers.
Normal
Set when using 7.1-channel
(Front/Center/Surround/Surround
Back/Subwoofer) speakers.
ZONE2
Set for connecting the speakers
for ZONE2 to the SURR. BACK/
AMP ASSIGN terminals.
Front Height
Set for connecting the front
height speakers to the SURR.
BACK/AMP ASSIGN terminals.
Front Bi-Amp
Set for connecting a tweeter of
a front speaker to the SURR.
BACK/AMP ASSIGN terminals
and a woofer of the front speaker
to the FRONT terminals.
Front B
Set for connecting the second set
of front speakers to the SURR.
BACK/AMP ASSIGN terminals. In
this case, go to step 5.
5
GWhen “Front B” is selected in
step 4H
q Use ui to select “Front Sp.”.
w Press o p to select a speaker.
A
Select this to use front speaker A.
B
Select this to use front speaker B.
A+B
Select this to use front speakers A and B
simultaneously.
Remote control operation
buttons
Move the cursor
(Up/Down/Left/Right)
Confirm the setting Return to previous menu
6
Proceed to page 8
“
Preparation
” step 5.
NOTE
After performing Audyssey Auto Setup, do not
change the speaker connections or subwoofer
volume. In event of a change, perform Audyssey
Auto Setup again.

Denon AVR-1611 Specifications

General

Impedance	6 Ω
Frequency range	10 - 100000 Hz
Audio output channels	5.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	98 dB
Total Harmonic Distortion (THD)	0.7 %
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Radio Data System (RDS)	Yes
Audio system	Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, DTS-HD, DTS 96/24
Output power	110 W
Dimensions (WxDxH)	434 x 381 x 171 mm
Power requirements	AC 230, 50 Hz
HDMI ports quantity	5
I/O ports	1 x Component 3 x Composite (Video) 5 x Analogue Audio (Tuner included) 1 x Composite Monitor 1 x Microphone Port 1 x Dock Control Port 1 x FM Tuner Antenna 1 x AM Tuner Antenna
Connectivity technology	Wired
Digital audio optical in	1
Product color	Black
Power consumption (standby)	0.1 W
Power consumption (typical)	360 W

Weight and Dimensions

Weight	9200 g
