Denon AVR-X1100W Service Manual

TECHNICAL SPECIFICATIONS FOR AVR-S700W
n
Audio section
• Power amplifier
Rated output
:
Front :
75W+75W（8Ω、20Hz～20kHz with 0.08％ T.H.D.）
110W+110W（6Ω、1kHz with 0.7％ T.H.D）
Center :
75W（8Ω、20Hz～20kHz with 0.05％ T.H.D.）
110W（6Ω、1 kHz with 0.7 % T.H.D.)
Surround :
75W+75W（8Ω、20 Hz – 20 kHz with 0.08% T.H.D.)
110W+110W（6Ω、1 kHz with 0.7 % T.H.D.)
Surround back:
75W+75W（8Ω、20 Hz – 20 kHz with 0.08% T.H.D.)
110W+110W（6Ω、1 kHz with 0.7 % T.H.D.)
Output connectors : 4～16Ω
n
Analog section
Input sensitivity/Input impedance : 200 mV/47 kΩ
Frequency response : 10 Hz – 100 kHz — +1, –3 dB（Direct mode）
S/N : 98 dB（IHF–A weighted, Direct mode）
n
Video section
Input/output level and impedance : 1 Vp-p, 75 Ω
Frequency response : 5 Hz – 10 MHz — 0, –3 dB
n
Tuner section
Reception frequency range : FM 87.5 MHz – 107.9 MHz
AM 520 kHz – 1710 kHz
Effective sensitivity : FM 1.2μV（12.8dBf）
AM 18 μV
50 dB sensitivity : MONO ― 2.8 μV (20.2 dBf)
S/N: MONO ― 70 dB (IHF–A weighted, Direct mode)
STEREO ― 67 dB (IHF–A weighted, Direct mode)
Distortion : MONO ― 0.7 % (1 kHz)
SRETEO ― 1.0 % (1 kHz)
n
Wireless LAN section
Network type
(wireless LAN standard): Conforming to Wi-Fi®z1
Security : WEP 64 bit, WEP 128 bit
WPA/WPA2-PSK (AES)
WPA/WPA2-PSK (TKIP)
Radio frequency : 2.4 GHz
No. of channels : 1 – 11 ch
z1 The Wi-Fi® CERTIFIED Logo and the Wi-Fi CERTIFIED On-Product
Logo are registered trademarks of the Wi-Fi Alliance.
n
Bluetooth section
Communications system : Bluetooth Version 2.1 + EDR
(Enhanced Data Rate)
Transmission power : Maximum 2.5 mW (Class 2)
Maximum communication range : Approx. 32.8 ft/10m 2 in line of sight
Frequency band : 2.4 GHz band
Modulation scheme : FHSS (Frequency-Hopping Spread Spectrum)
Supported proles : A2DP 1.2 (Advanced Audio Distribution Prole)
AVRCP 1.4 (Audio Video Remote Control Prole)
Corresponding codec : SBC, AAC
Transmission range (A2DP) : 20 Hz - 20,000 Hz
n
General
Power supply : (for E3) : AC 120 V, 60 Hz
Power consumption : 400W
Power consumption in standby mode : 0.1W
Power consumption in CEC standby mode : 0.5W
Power consumption in network standby mode : 2.7W

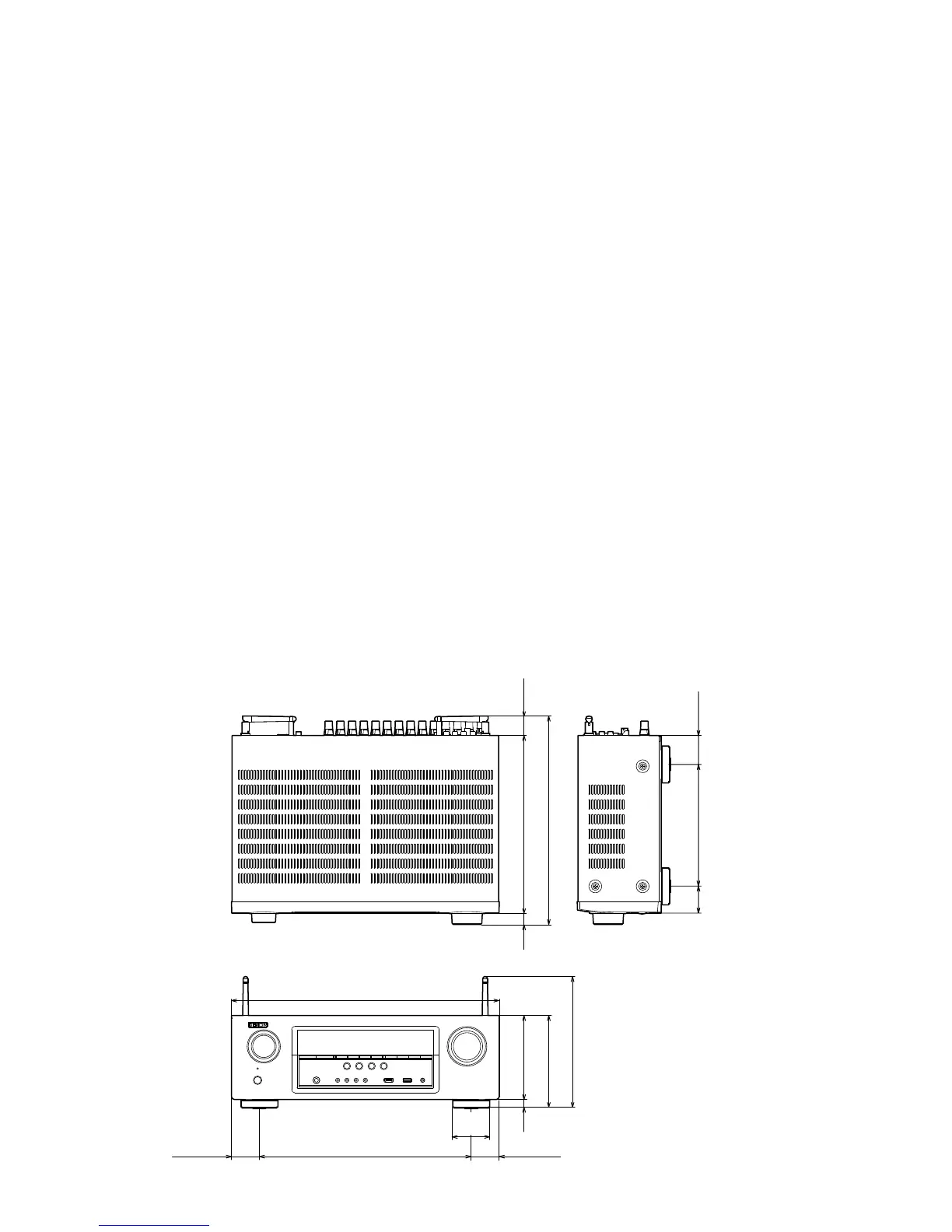

DIMENSION FOR AVR-S700W
Unit
：
Unit : in. (mm) Weight
：
18 lb 15 oz (8.6 kg)
7 3/4 (197)
1 47/64
(44)
1 27/32
(47)
17 3/32 (434)
19/32
(15)
5 23/64 (136) 5 15/16 (151)
8 15/32 (215)
13 35/64 (344)
2 23/64
(60)
1 49/64 (45) 1 49/64 (45)
11 11/32 (288) 13 11/32 (339)
3/4
(19)
1 7/32
(32)
10

Denon AVR-X1100W Specifications

General

Receiver type	Surround
Audio output channels	7.1 channels
Power output per channel (1KHz@6 Ohm)	145 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	5
Digital audio optical in	2
Ethernet LAN (RJ-45) ports	1
Headphone connectivity	6.3 mm
Connectivity technology	Wired
Speakers connectivity type	Banana connector/Binding posts
Audio formats supported	AAC, AIFF, FLAC, MP3, WAV, WMA
Ethernet LAN	Yes
AM band range	522 - 1611 kHz
Supported radio bands	AM, FM
Optical drive included	No
Display	VFL
Product color	Black
Audio decoders	Dolby Digital 5.1, Dolby Digital EX, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Digital Plus, DTS-ES, DTS-HD Master Audio
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	430 W

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	151 mm
Weight	8600 g
