Denon AVR-X1100W Service Manual

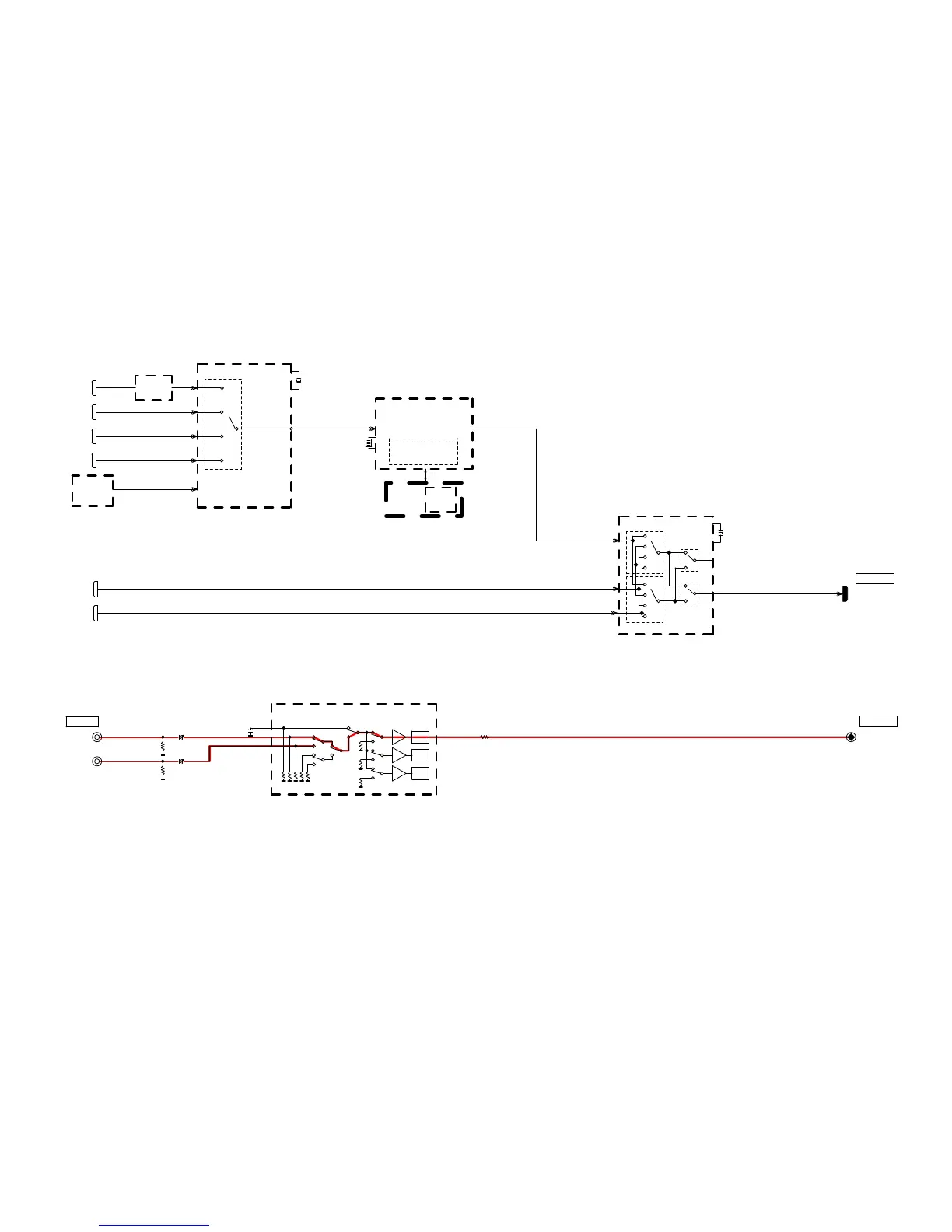

DIAGNOSTIC PATH DIAGRAM
fig.01
SUB
MAIN
6dB
75ohm
Driver
6dB
75ohm
Driver
6dB
75ohm
Driver
20K
20K
20K
20K
Media Player
CVBS IN
SAT/CBL
NJM2595
CVBS OUT
MONITOR OUT
(DVD)
(MEDIA Player)
F-HDMI IN
HDMI IN1
HDMI IN2
HDMI IN3
(AUX)
(CBL/SAT)
HDMI RX(MN864778A)
P3 RX
P2 RX
P1 RX
P0 RX
P1 TX
AD8195
Buffer
(Blu-ray)
(GAME)
HDMI IN4
HDMI IN5
HDMI TX(MN8647781)
P3 RX
P1 RX
P0 RX
P0 TX
P1 TX
ADV7623
TRANSCEIVER
28.6363MHz
X7201
S.FLASH
32M/64M
OTHER : 32M
E1 : 64M
CEA 861(V0~V7, PCLKIN)
CY920
AVR-S700W/X1100W VIDEO BLOCK
OSD Block
P1 RX
P0 RX
HDMI OUT
MONITOR OUT
27.000MHz
27.000MHz
27

Denon AVR-X1100W Specifications

General

Receiver type	Surround
Audio output channels	7.1 channels
Power output per channel (1KHz@6 Ohm)	145 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	5
Digital audio optical in	2
Ethernet LAN (RJ-45) ports	1
Headphone connectivity	6.3 mm
Connectivity technology	Wired
Speakers connectivity type	Banana connector/Binding posts
Audio formats supported	AAC, AIFF, FLAC, MP3, WAV, WMA
Ethernet LAN	Yes
AM band range	522 - 1611 kHz
Supported radio bands	AM, FM
Optical drive included	No
Display	VFL
Product color	Black
Audio decoders	Dolby Digital 5.1, Dolby Digital EX, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Digital Plus, DTS-ES, DTS-HD Master Audio
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	430 W

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	151 mm
Weight	8600 g
