Denon AVR-X1100W Service Manual

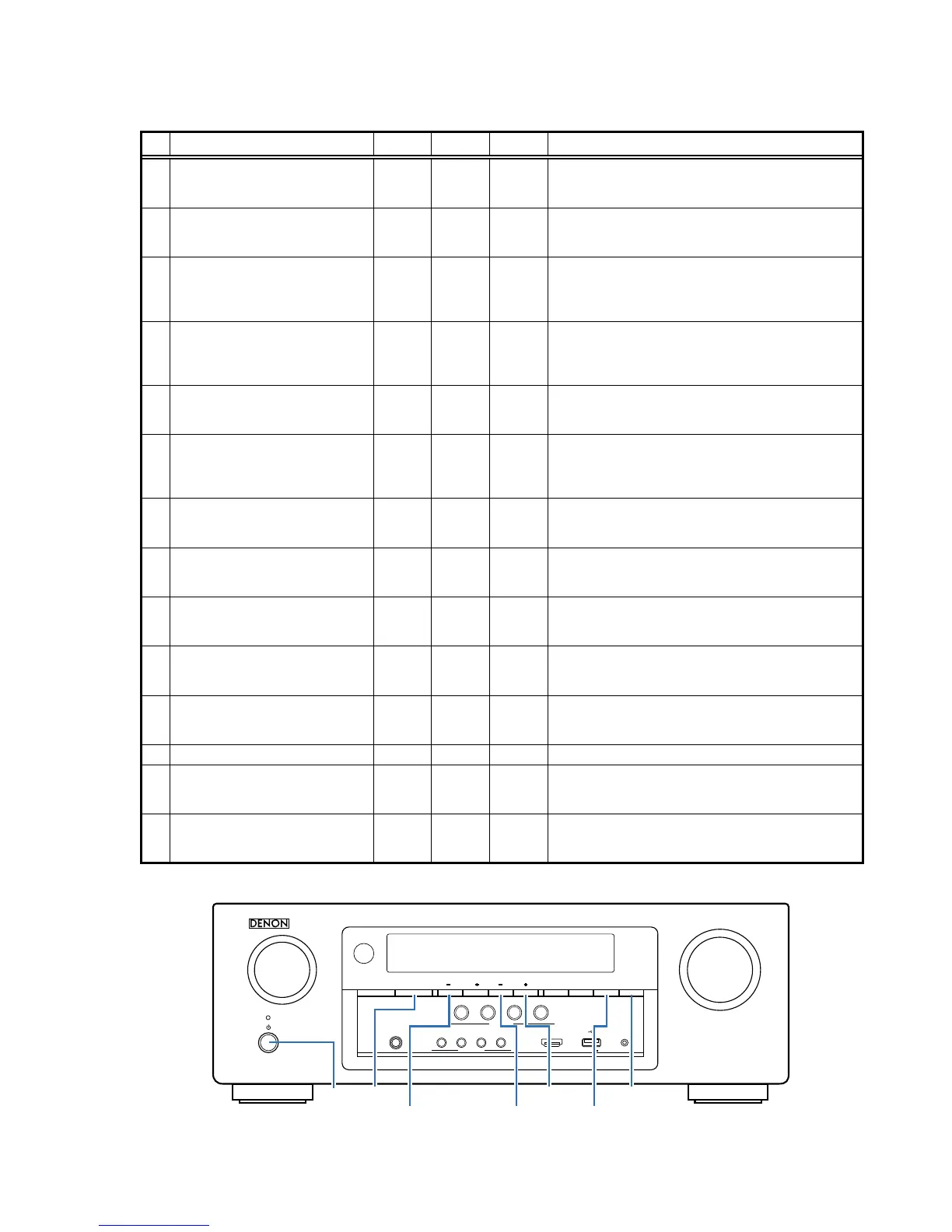

Special Mode Conguration Buttons (for AVR-S700W)
b
No. 1 - 13 : Hold down buttons A, B and C at the same time and press the power button to turn on the power.
b
No. 14
：
Press the A and B buttons simultaneously while inserting the AC plug to turn the power on.
No. Mode Button A Button B Button C Contents
1
Version Display
(u-COM / DSP Error Display)
DIMMER STATUS –
Displays the version of rmware such as the main rmware
or DSP, etc. Errors that have occurred are displayed. (See
18 page)
2 Protection History Display Mode
TUNER
PRESET
CH +
TUNE - TUNE +
Displays the protection occurrence history.
(See 45 page)
3
Check the Video/Audio pass
Mode
↑ ↑ ↑
This is a special mode for service conrmation used during
repair work to simplify the conrmation work for the Audio
channel/video channel.
(See 25 page)
4 Remote ID Setup Mode
↑ ↑ ↑
If there are multiple DENON AV receivers in the same area,
this mode stops the other AV receivers from being operated
concurrently with this device.
(See 49 page)
5 TUNER step
↑ ↑ ↑
Enables reception STEP of the ANALOG TUNER to be
changed.
(See 48 page)
6 Operation INFO
↑ ↑ ↑
Displays the total operating time of the set, number of times
the power was switched on, and number of occurrences of
each protection.
(See 47 page)
7
User Initialization mode
(Settings for the Installer Setup are
not initialized.)
TUNER
PRESET
CH -
TUNER
PRESET
CH +
-
Initializes backup data.
(Settings for the Installer Setup are not initialized.)
8
Factory Initialization mode
(Initialization includes settings for the
Installer Setup.)
TUNER
PRESET
CH +
TUNE - -
Initializes backup data.
(Initialization includes settings for the Installer Setup.)
9
Mode for preventing remote
control acceptance
ZONE2
SOURCE
TUNER
PRESET
CH +
-
Start this unit in the PANEL/REMOTE LOCK selection
mode so that PANEL LOCK and Remote Lock can be
selected as ON or OFF. (See 22 page)
10
PANEL LOCK mode
(with Volume)
↑ ↑ -
This function prevents reception of all keys/encoders
(including VOLUME) other than the power supply button on
the Front Panel.
11
PANEL LOCK mode
(without Volume)
↑ ↑ -
This function prevents reception of all keys/encoders other
than the power supply button and VOLUME encoder on the
Front Panel.
12 Panel Lock Release
↑ ↑ -
Function for Releasing the PANEL LOCK
13 Protection pass mode
ZONE2
SOURCE
TUNER
PRESET
CH +
TUNE +
Enables the power to be turned on when protection
detection is in the stopped state.
(See 50 page)
14 Forced USB All Device Write Mode
TUNE +
ZONE2
SOURCE
-
Mode used when this unit cannot be recovered.
Forcibly switches this unit to USB update mode.
(See 56 page)
MASTER VOLUM E
SOURCE SELEC T
BAND MODE DIMMER STATUS
TUNEZONE2 ON/OFF ZONE2 SOURCE
TUNER
PRESET CH
CB L/S A T
3
4
ONLINE
1
GAME
2
DVD/Blu-ray
QUICK SELECT
SETUP MICAUX - HDMI
5V / 1A
PHONES
MOVIE MUSIC GAME PURE
SOUND MODE
TUNE
－
DIMMER
STATUSZONE2
SOURCE
TUNE +
X
TUNER
PRESET CH +
TUNER
PRESET CH
－
17

Denon AVR-X1100W Specifications

General

Receiver type	Surround
Audio output channels	7.1 channels
Power output per channel (1KHz@6 Ohm)	145 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	5
Digital audio optical in	2
Ethernet LAN (RJ-45) ports	1
Headphone connectivity	6.3 mm
Connectivity technology	Wired
Speakers connectivity type	Banana connector/Binding posts
Audio formats supported	AAC, AIFF, FLAC, MP3, WAV, WMA
Ethernet LAN	Yes
AM band range	522 - 1611 kHz
Supported radio bands	AM, FM
Optical drive included	No
Display	VFL
Product color	Black
Audio decoders	Dolby Digital 5.1, Dolby Digital EX, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Digital Plus, DTS-ES, DTS-HD Master Audio
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	430 W

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	151 mm
Weight	8600 g
