Denon AVR-X1100W Service Manual

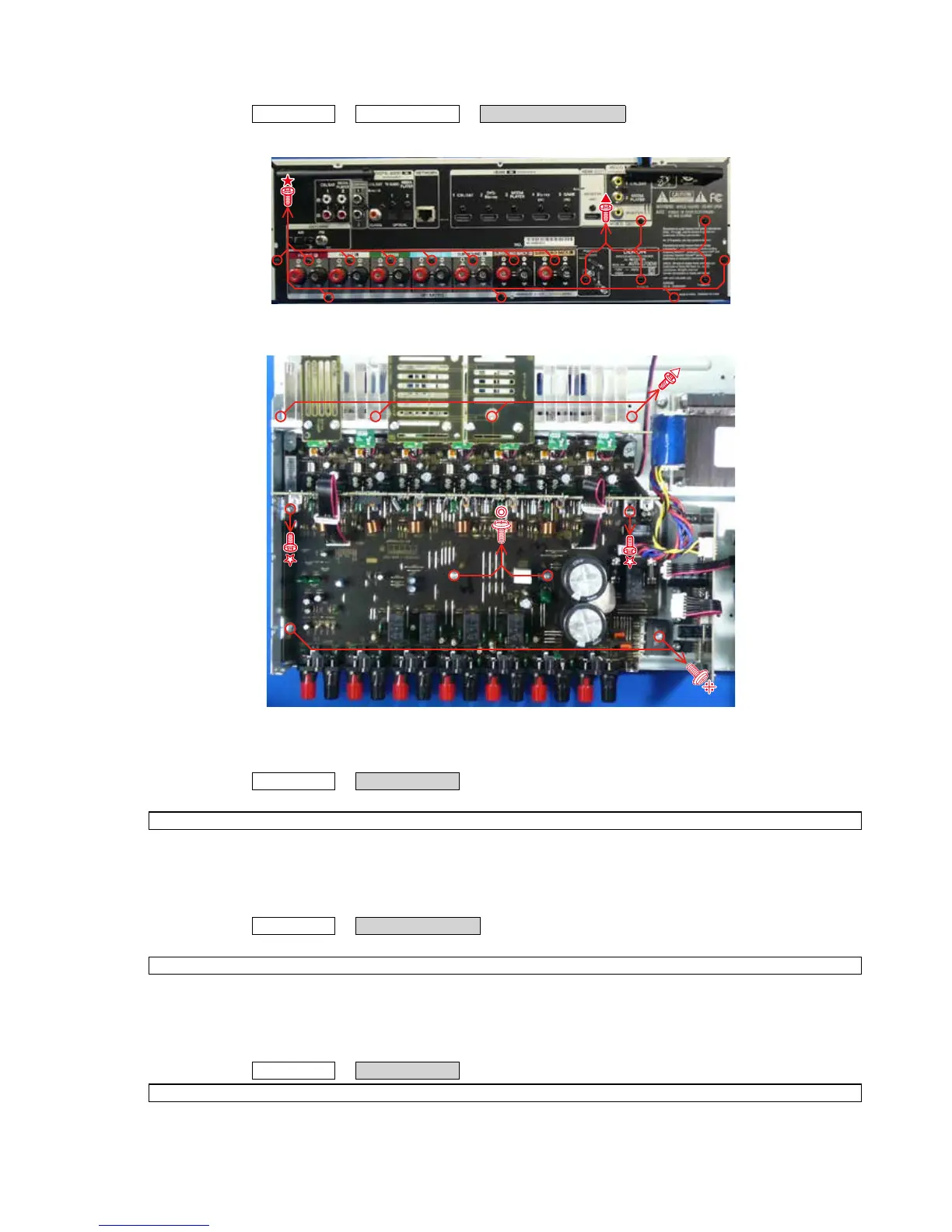

3. RADIATOR ASSY
Proceeding : TOP COVER
→
DIGITAL PCB
→
RADIATOR ASSY
(1) Remove the screws.
(2) Remove the screws.
4. SMPS PCB
Proceeding : TOP COVER
→
SMPS PCB
(1) Remove the connector wire. Remove the screws.
See "EXPLODED VIEW" for instructions on how to remove each PCB of the "
SMPS PCB
".
5. REGULATOR PCB
Proceeding : TOP COVER
→
REGULATOR PCB
(1) Remove the connector wire. Remove the screws.
See "EXPLODED VIEW" for instructions on how to remove each PCB of the "
REGULATOR PCB
".
6. TRANS POWER
Proceeding : TOP COVER
→
TRANS POWER
See "EXPLODED VIEW" for instructions on how to remove each PCB of the "
TRANS POWER
".
Front side
15

Denon AVR-X1100W Specifications

General

Receiver type	Surround
Audio output channels	7.1 channels
Power output per channel (1KHz@6 Ohm)	145 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	5
Digital audio optical in	2
Ethernet LAN (RJ-45) ports	1
Headphone connectivity	6.3 mm
Connectivity technology	Wired
Speakers connectivity type	Banana connector/Binding posts
Audio formats supported	AAC, AIFF, FLAC, MP3, WAV, WMA
Ethernet LAN	Yes
AM band range	522 - 1611 kHz
Supported radio bands	AM, FM
Optical drive included	No
Display	VFL
Product color	Black
Audio decoders	Dolby Digital 5.1, Dolby Digital EX, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Digital Plus, DTS-ES, DTS-HD Master Audio
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	430 W

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	151 mm
Weight	8600 g
