Denon AVR-X1100W Service Manual

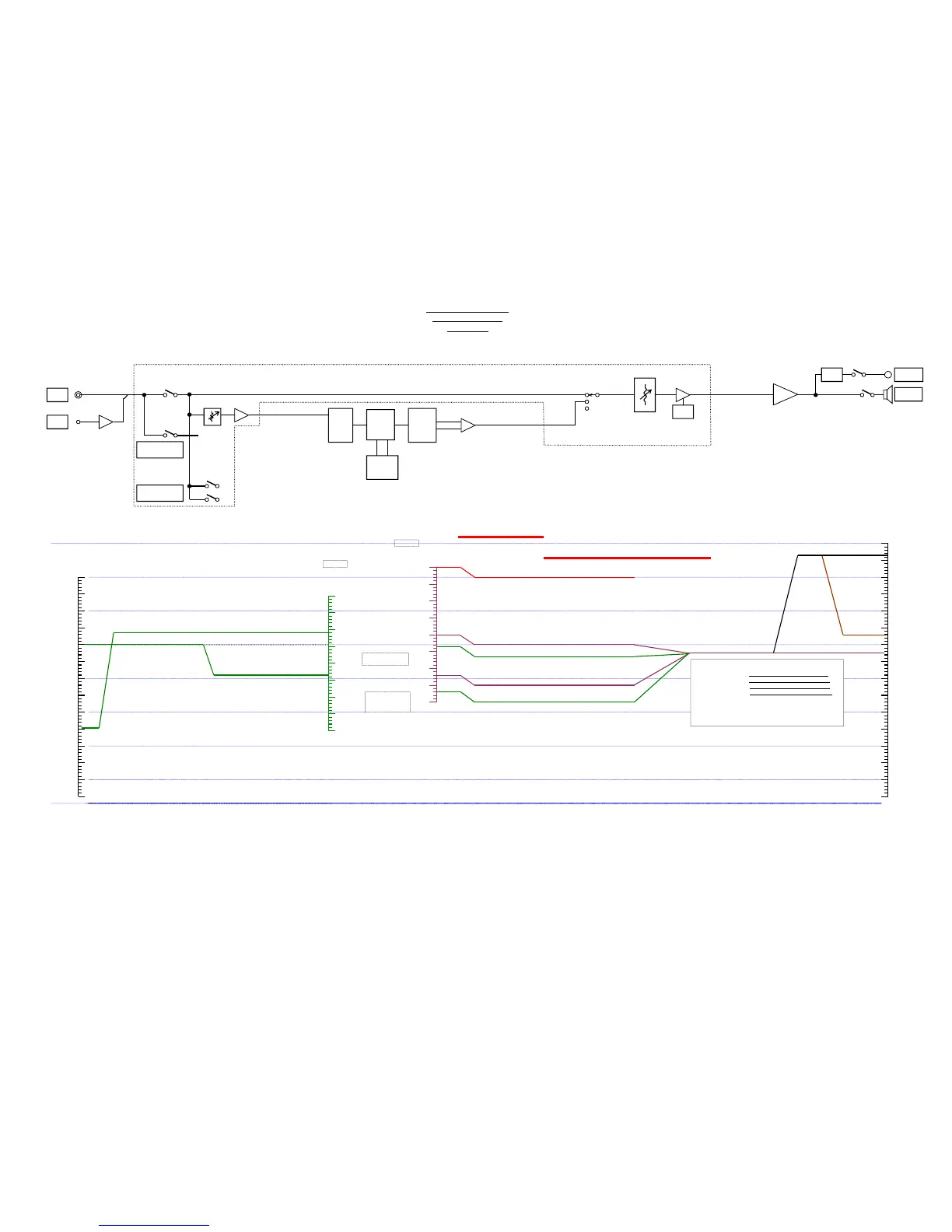

LEVEL DIAGRAM
+20dB
+10dB
0dB
-20dB
-30dB
-40dB
-10dB
+20dB
+10dB
-20dB
-30dB
-40dB
-10dB
LINE IN
-10dBFS
0dBFS
-20dBFS
-30dBFS
-40dBFS
PCM1690
PCM9211
H/POUT
AVR-S700W/X1100W
LEVEL DIAGRAM
FRONT ch
-9dB
DIFF.OUT
0dBFS=±4.0Vpp
=2.83Vrms
-10dBFS
-30dBFS
-40dBFS
200mV
+30dB
SPK OUT
POWERAMP GAIN
+29dB
FULL SCALE LEVEL=2.0Vrms
-3.01dB
SW:NO
-32dBFS(DIG.IN)
-35.5dBFS(A/D IN)
-20dBFS(DIG.IN)
-23.5dBFS(A/D IN)
＋
＋
LINE IN
H/POUT
＋
SPEAKER
OUT
DSP
ANALO
G
NJU72430A
GAIN
ADJ.
PCM1690
D/A
－
－
＋
PLD
PCM9211
A/D
-2.5dB
-26.5dBFS
PRE OUT
150mVrm
277mVrms/33Ω
4.27Vrms/8Ω
200mVrms
GAIN setting of MASTER VOL 00dB
･SW:YES (DIGITAL) -2.5dB = - 2.5dB
･SW:YES (ANALOG) -2.5dB +3.5dB = + 1.0dB
･SW:NONE (DIGITAL) -2.5dB +12dB = + 9.5dB
･SW:NONE (ANALOG) -2.5dB +12dB +3.5dB = +13.0dB
(1) (2) (3)
(1):Basic OFFSET of VOL=0dB (PREAMPGAIN:+15.5dB)
(2):OFFSET of SW NON
(3):OFFSET of the AD input
28.31dB
MIC IN
11.48mVrms
ZONE2 SEL.
REC INH.
0dBFS
-20dBFS
+1dB
+9.5dB
+13d
NJU72340 MAX.OUTPUT 3.8Vrms
AZ4580 MAX.OUTPUT 7.78Vrms
SINGLE INPUT
0dBFS=3Vpp
=1.06Vrms
ACM2 (DM-A409)Sensitivity:
-38.8dBV/Pa = 11.48mV/Pa at 94dBSPL @Operation Voltage 5.0V (94dBSPL is expected to -
11.0dBFS)
＋
MIC IN
LINE IN
NJU72430 ATT:0dB at AUTOSETUP
87

Denon AVR-X1100W Specifications

General

Receiver type	Surround
Audio output channels	7.1 channels
Power output per channel (1KHz@6 Ohm)	145 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	5
Digital audio optical in	2
Ethernet LAN (RJ-45) ports	1
Headphone connectivity	6.3 mm
Connectivity technology	Wired
Speakers connectivity type	Banana connector/Binding posts
Audio formats supported	AAC, AIFF, FLAC, MP3, WAV, WMA
Ethernet LAN	Yes
AM band range	522 - 1611 kHz
Supported radio bands	AM, FM
Optical drive included	No
Display	VFL
Product color	Black
Audio decoders	Dolby Digital 5.1, Dolby Digital EX, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Digital Plus, DTS-ES, DTS-HD Master Audio
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	430 W

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	151 mm
Weight	8600 g
