Denon AVR-X1100W Service Manual

PROCEDURE AFTER REPLACING THE MICROPROCESSOR, ETC.
The procedure after replacing the u-COM (microprocessor), ash ROM, etc. is as follows.
PCB Name Ref. No. Description
Procedure
after Replace-
ment
Remark
DIGITAL IC722 MX25L3206EM2I-12G B SOFTWARE: GUI ROM
DIGITAL IC751 R5F56108VNFP B SOFTWARE: Main
DIGITAL IC773 5M80ZT100C5N B SOFTWARE: AUDIO PLD
DIGITAL IC782 MX25L1606EM2I-12G B SOFTWARE: DSP ROM
Procedure after Replacement
A :
The software has been written. The software is not written at the time of replacement.
B :
The software has been written. The software may need to be rewritten by version updates. Check the version.
C :
The software has not been written. The software needs to be written after replacement.
See "
Firmware Update Procedure
" for information on writing the software.
D :
The software has been written. Be sure to rewrite with the latest software for your service region.
See "
Firmware Update Procedure
" for information on writing the software.
FIRMWARE UPDATE PROCEDURE
1. Updating by USB
The latest rmware can be downloaded to a USB memory for updates.
1.1. Connecting to the USB Memory
(1) Preparation
• USB format: Prepare a USB memory formatted in FAT16 or FAT32.
• Do not run the USB memory through a hub.
• Do not connect a computer to the USB port of this unit using a USB cable.
• Do not use an extension cable when connecting the USB unit.
1.2. Unzip Download File
Unzip the downloaded le on your computer.
AVR-XXXXXXX USB_AVR-XXXXXXX_XXXXXXXXXXXX-XXXX.zip
You can nd "
rmwares
" folder after unzipped.
Copy that folder to USB ash drive.
You have to put "
rmwares
" folder on root directly on USB ash drive(memory).

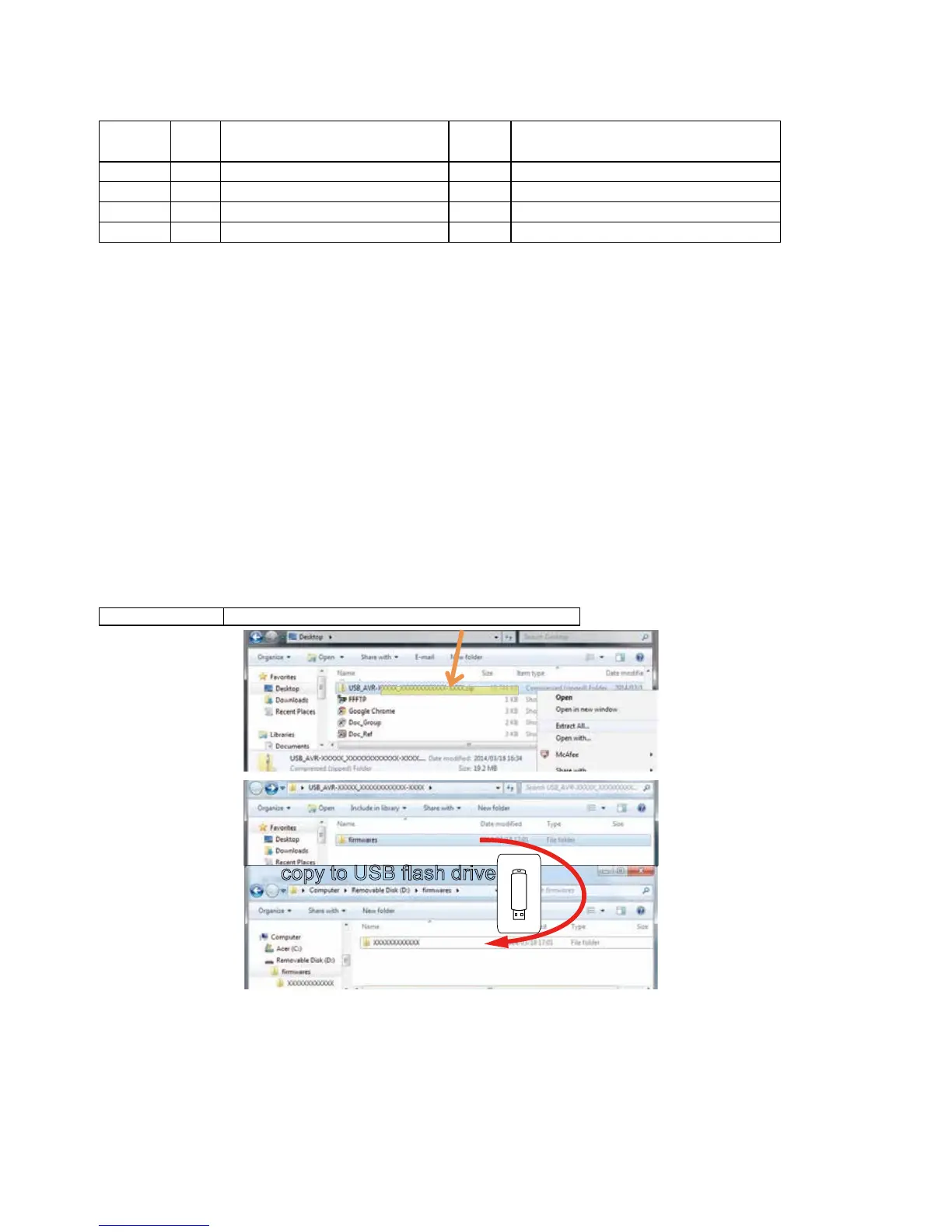

copy to USB flash drive
54

Denon AVR-X1100W Specifications

General

Receiver type	Surround
Audio output channels	7.1 channels
Power output per channel (1KHz@6 Ohm)	145 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	5
Digital audio optical in	2
Ethernet LAN (RJ-45) ports	1
Headphone connectivity	6.3 mm
Connectivity technology	Wired
Speakers connectivity type	Banana connector/Binding posts
Audio formats supported	AAC, AIFF, FLAC, MP3, WAV, WMA
Ethernet LAN	Yes
AM band range	522 - 1611 kHz
Supported radio bands	AM, FM
Optical drive included	No
Display	VFL
Product color	Black
Audio decoders	Dolby Digital 5.1, Dolby Digital EX, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Digital Plus, DTS-ES, DTS-HD Master Audio
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	430 W

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	151 mm
Weight	8600 g
