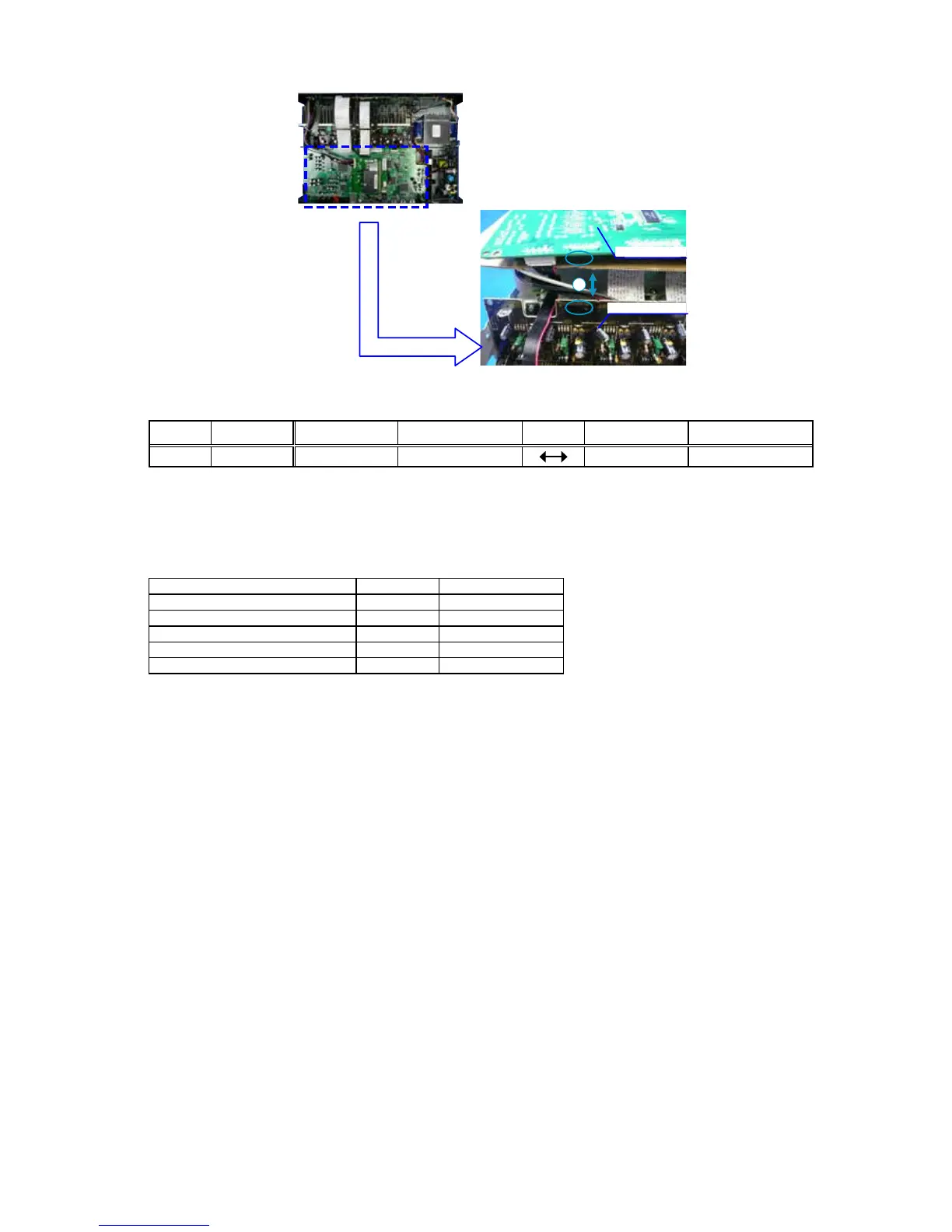

(4) Connect the expansion cables.
Connection table of Board to Board
No. Pin Ref. No. PCB Ref. No. PCB
q
15pin CN201 DIFF-AMP CN822 DIGITAL
Procedure after Replacing the WLAN MODULE.
When replaced of the WLAN MODULE(CX870-3B-D60), conîšżrm contents of the following.
(1) Part numbers differ depending on the region of the WLAN MODULE.
Be sure to follow the table below when replacing the parts.
MODULE Name Remarks Part No.
CX870 MODULE ASSY (E3) X1100E3 943189100770D
CX870 MODULE ASSY (E2/E1) E2/E1 943189100780D
CX870 MODULE ASSY (E1C) E1C 943189100790D
CX870 MODULE ASSY (JP) K 943189100800D
CX870 MODULE ASSY (S700S) S700W 943189100760D
(2) With DPMS or USB memory, update îšżrmware.
See "
Firmware Update Procedure
"(54 page)"
1.Updating by USB
" or "
2.Updating by DPMS
"
PCB DIGITAL
PCB DIFF-AMP
1
53
