Denon AVR-X1100W Service Manual

YES
YES
YES
YES
YES
YES
The circuit around Bluetooth Module (iBT-06-02S) or CX870 is faulty.
Can a voltage (5V) be conrmed between pin 1 and pin 4 of CN471
on DIGITAL PCB?
Can a voltage (3.6V) be conrmed to BN921 on Bluetooth PCB?
Can a voltage (3.3V) be conrmed to pin 4 of BN921 on Bluetooth
PCB?
Can a voltage (3.6V) be conrmed to pin 10 of BN921 on Bluetooth
PCB?
Can a waveform (32.768kHz) be conrmed to pin 4 of IC922 on
Bluetooth PCB?
Is 4pin(LDO_ON) of Bluetooth PCB BN921 "Hi"?
The circuit between the AC inlet and BN601 is faulty.
Check the SMPS PCB.
The circuit between CN741 of the DIGITAL PCB and
BN921 of the Bluetooth PCB are faulty of wire or
board.
The circuit around Q7404 or IC741 of the DIGITAL
PCB is faulty.
The circuit around IC912 of the ADAPTER PCB is
faulty.
The oscillation circuit including IC922 is faulty.
The circuit between CX870 and BN921 of the LDO_
ON are faulty.
NO
NO
NO
NO
NO
NO

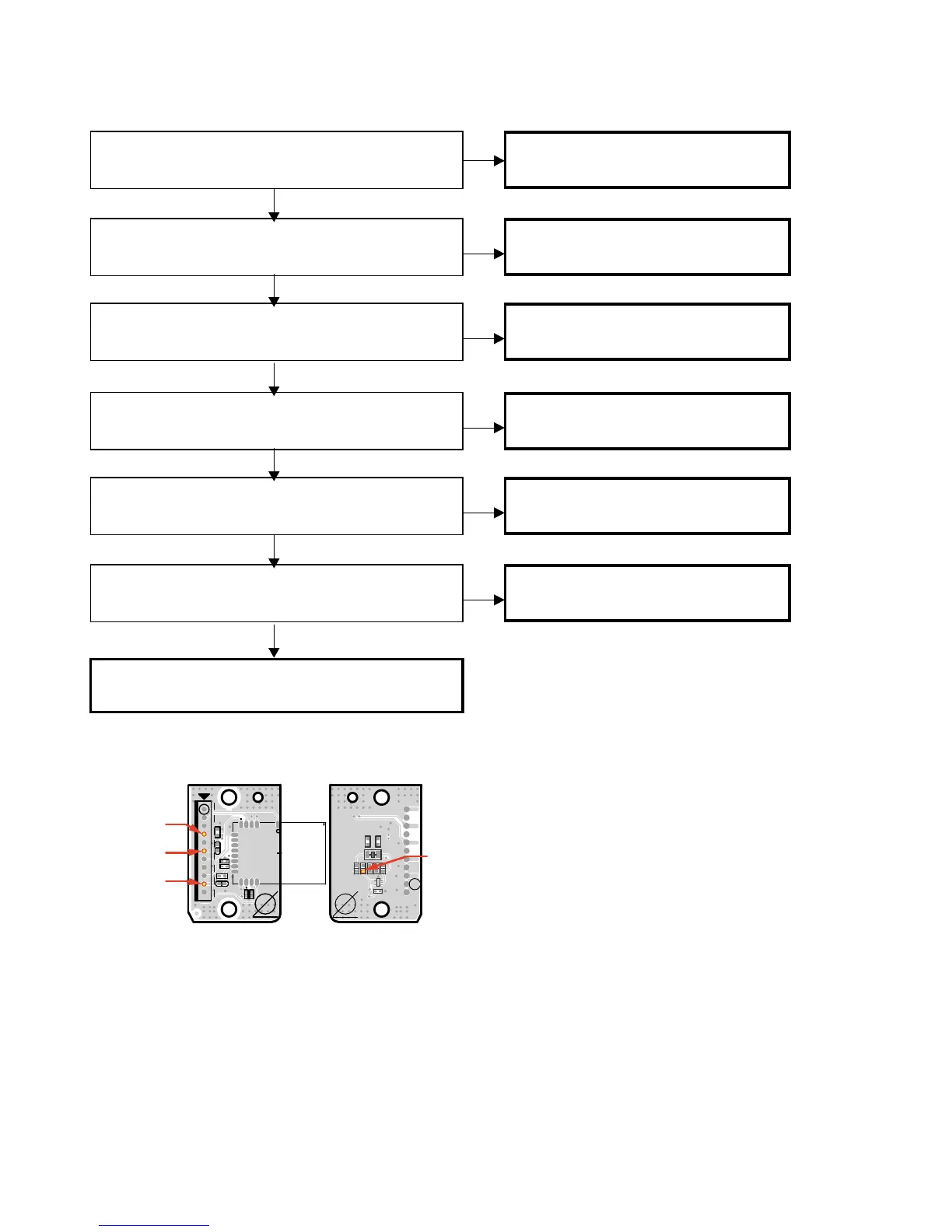

5.2. Cannot connect to the Bluetooth
Pb
R9203 R9204
L9202
L9201
BN921
IC921
C9203
C9204
C9201
C9202
LDO_ON
3.3V
3.6V
Pb
+3.6V
+3.3V
Pb
C9207
C9206
C9205
R9205
R9207
R9206
R9201
R9202
IC922
X9201
32.768KHz
Bluetooth Test Points
(A SIDE) (B SIDE)
82

Denon AVR-X1100W Specifications

General

Receiver type	Surround
Audio output channels	7.1 channels
Power output per channel (1KHz@6 Ohm)	145 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	5
Digital audio optical in	2
Ethernet LAN (RJ-45) ports	1
Headphone connectivity	6.3 mm
Connectivity technology	Wired
Speakers connectivity type	Banana connector/Binding posts
Audio formats supported	AAC, AIFF, FLAC, MP3, WAV, WMA
Ethernet LAN	Yes
AM band range	522 - 1611 kHz
Supported radio bands	AM, FM
Optical drive included	No
Display	VFL
Product color	Black
Audio decoders	Dolby Digital 5.1, Dolby Digital EX, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Digital Plus, DTS-ES, DTS-HD Master Audio
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	430 W

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	151 mm
Weight	8600 g
