Denon RCD-N7 - 3. CD MECHA ASSY

12

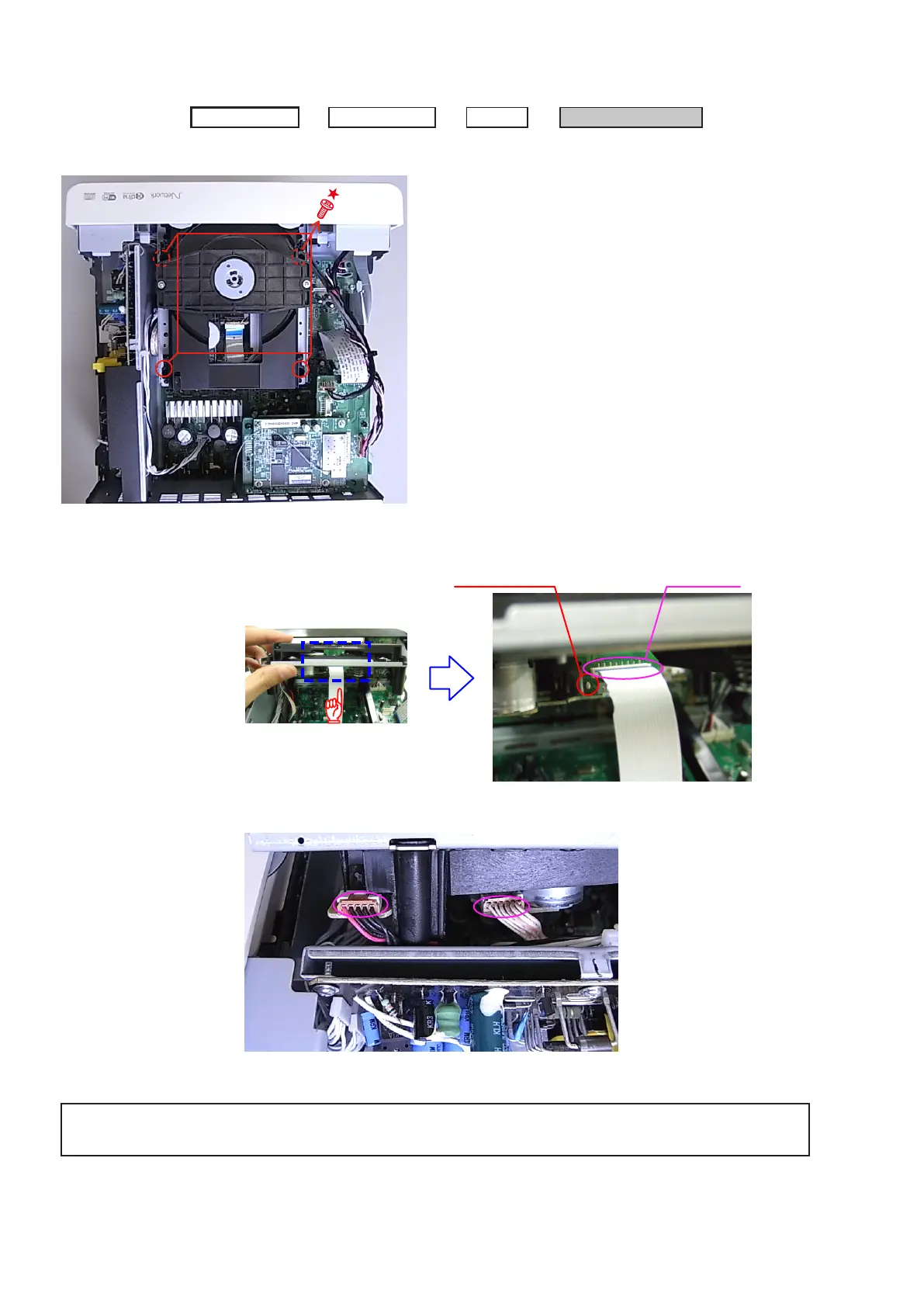

3. CD MECHA ASS'Y
(1) Removethescrews.
(2) Lasershort-circuitinPick-upofCDMECHANISMASS'Y,thendisconnecttheconnectorwiresandFFCcable.
Besuretowearagroundingband.
(3) Disconnecttheconnectorwires.
SIDE PANEL
TOP COVER
→
DOOR
→
CD MECHA ASSY
→
Proceeding :
Soldering place
Direction of photograph: A
FFC Cable
Direction of photograph: C
Pleasereferto"EXPLODEDVIEW"forthedisassemblymethodofeachPCBincludedinETHERNETPCBASSY
andDABPCBASSY,TUNERMODULE.
