When replaced of the RCD-N7 WLAN MODULE (8R1821000100S), conrm contents of the following.
(1) Replace the WLAN MODULE with the 8R1821000100S (MAC Address was written).
(2) After the RCD-N7 built, DISC using rmware CR870 (Net (IMG)) to change the E2 or E3 Version.
The le name of CR870 (Net(IMG)): M_CR603_BCI_mmddvv.BIN
: The mm is month. The dd is date. The vv is version.(Version: NA/EU/JP)
Refer to "9. Update mode (by disc)" (page 31) for the details of the Version up with disc.
q
Pressing the VOLUME
f
and CURSOR
u
buttons for simultaneously, plug the AC cord into a power outlet. To
automatically open the tray, when set is turned on.
w
The disk is put on the tray,
5
buttons are pushed, and the tray is closed. The update begins pressing the
1
/
3
ENTER button of the set.
e
To automatically open the tray, when version up is nished.
r
Disconnect the AC cord into a power outlet.
(3) MAC Address Label pasted to Bottom is pasted to Mac Address Label(GEN8341; MAC ADDRESS SUB ASSY ) of
exchanged WLAN MODULE and it substitutes it.
(4) The rmware is updated by DPMS. Refer to [ VERSION UPGRADE PROCEDURE OF FIRMWARE "2. How to
update by DPMS" ] (page 38) for the details of the Version up.
NETWORK CD RECEIVER initialization should be performed when the μcom, peripheral parts of μcom, and Digital PCB.
are replaced.
1. Turn off the power using ON/STANDBY button, unplug the power cord.
2. Plug the power cord into a power outlet while pressing VOLUME
d
and CURSOR
i
button simultaneously.
＊
Initialize.
Measuring Disc: CD/TCD-784
CD-R/TCD-R082W
CD-RW/TCD-W082W
z
Refer to "MEASURING METHOD AND WAVEFORMS".
•
All user settings will be lost and this factory setting will be recovered when this initialization mode.
So make sure to memorize your setting for restoring after the initialization.

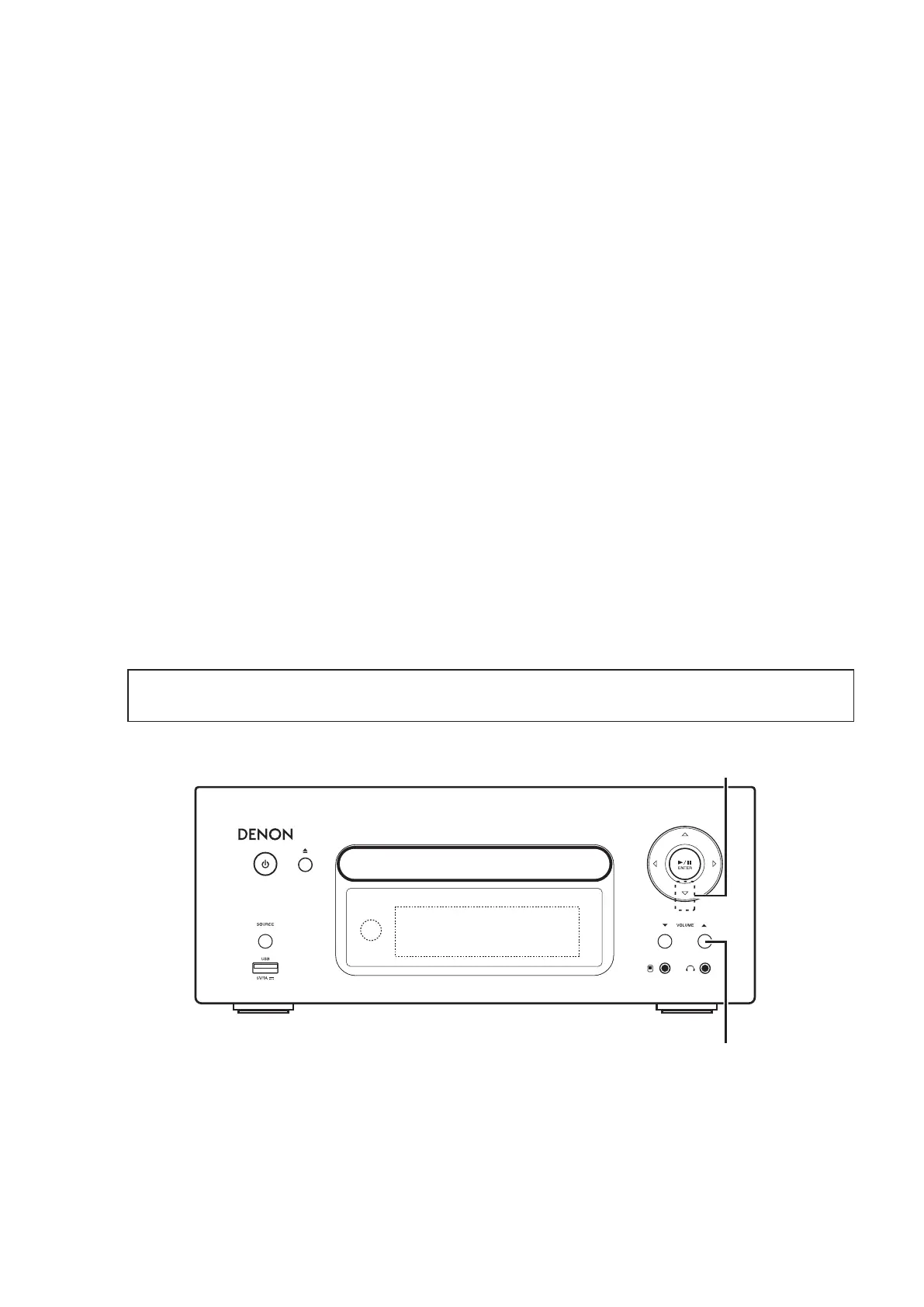

NETWORK CD RECEIVER RCD-N7
VOLUMEd
CURSORi
