Denon RCD-N7 Service Manual

29
6. Product Mode 1

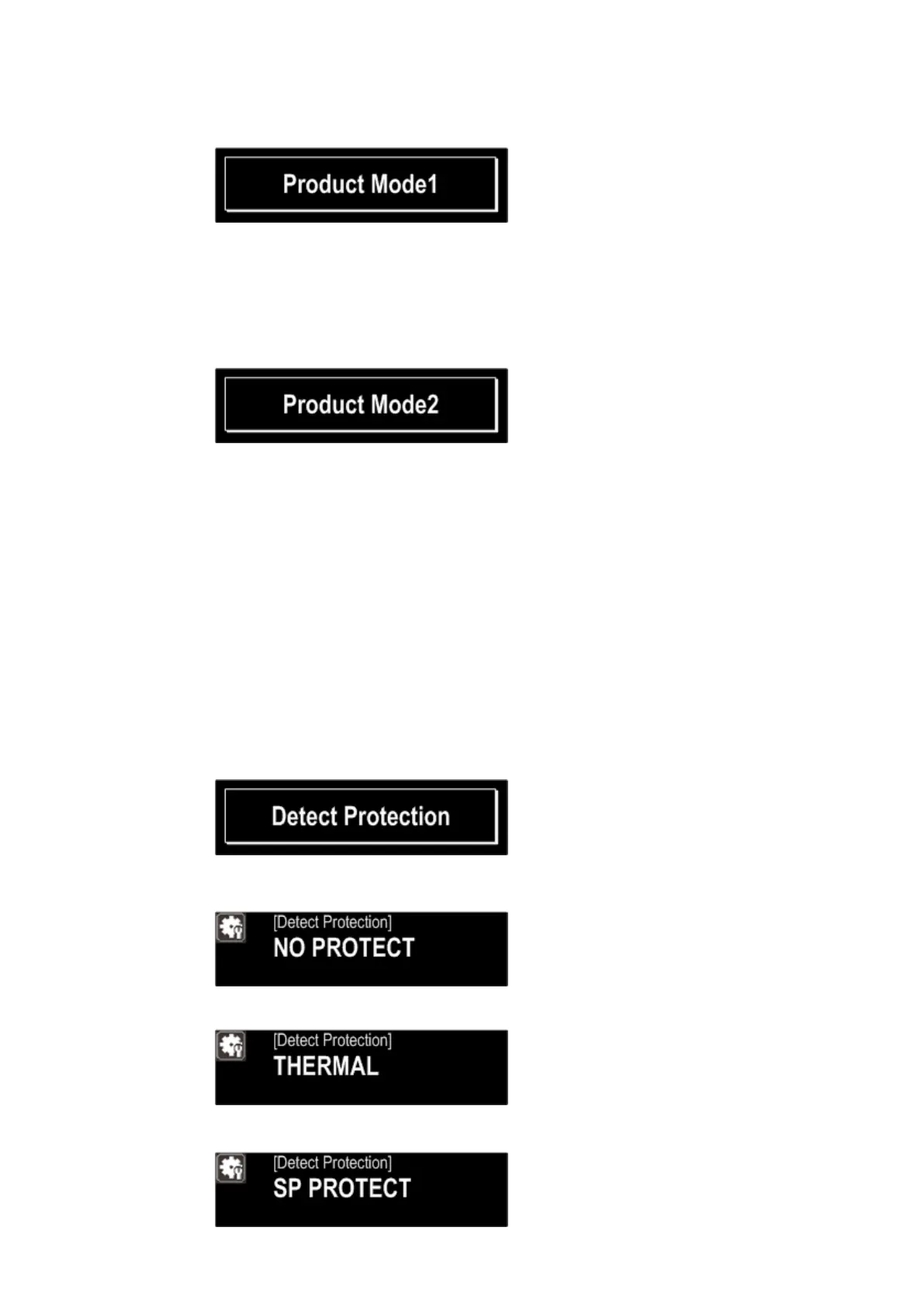

Startup display
"Product Mode1" displayed for 5 seconds.
Tested during production to perform the following settings automatically.
Tuner Preset
To exit this mode, unplug the power cord.
7. Product Mode 2
Startup display
"Product Mode2" displayed for 5 seconds.
Tested during production to perform the following settings automatically.
Sleep setting : 1 minutes
Auto Standby :1 minutes
Sleep setting and timer started.
Auto Standby to set up and will stand under the following conditions.
Auto Standby Conditions
CD : No Disc, Tray Open, Unsupported Disc or continue no operation and Stop state.
USB/iPod : No Connection or Unsupported Disc or continue no operation and Stop state.
Network : No Connection or Unsupported Disc or continue no operation and Stop state.
AUX3(OPT) : No Input(unlock)
Portable In : No Input
To exit this mode, unplug the power cord.
8. Protection history display mode
Startup display
"Detect Protection" displayed for 5 seconds.
To exit this mode, unplug the power cord.
No history found
Thermal protection
Speaker short protection

Denon RCD-N7 Specifications

General

Frequency range	5 - 20000 Hz
RMS rated power	65 W
Pre-out channels	1 SW
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	2.0 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.7 %
Dynamic power per channel (4 Ohm)	80 W
Power output per channel (20-20KHz@8 Ohm)	- W
Audio (L/R) in	2
Digital audio optical in	1
Headphone connectivity	3.5 mm
Connectivity technology	Wired & Wireless
Speakers connectivity type	Binding post
Audio formats supported	AAC, FLAC, MP3, WMA
Image formats supported	JPG
Video formats supported	AVI, WMV
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	99
Internet radio services supported	Last.fm, Napster
Optical drive type	CD player
Disc types supported	CD, CD-R, CD-RW
Display	OLED
Product color	Silver
Audio decoders	Not supported
Volume control	Rotary
Apple docking compatibility	iPhone, iPod
Number of products included	1 pc(s)
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.4 W

Weight and Dimensions

Depth	299 mm
Width	280 mm
Height	112 mm
Weight	4300 g
