6
n
•
Audio performance
S/N ratio (1 kHz) 100 dB
Dynamic range (1 kHz) 100 dB
Total harmonic distortion (1 kHz) 0.01 %
n
Rated output 2-channel driving
65 W + 65 W (4 Ω/ohms,
1 kHz, T.H.D. 0.7 %)
Dynamic power 80 W + 80 W (4 Ω/ohms)
High frequency distortion 0.1 % (Rated output: –3
dB), 4 Ω/ohms, 1 kHz
Input sensitivity/impedance
AUX1,AUX2 200 mV/32 kΩ
Portable in 110 mV/24 kΩ
Frequency response (5 W, 8 Ω)
AUX input 5 Hz to 20 kHz (±3 dB)
Total harmonic distortion (1 kHz, 5 W, 8 Ω)
AUX input 0.05 %
S/N ratio (10 W, 8 Ω, IHF-A)
AUX input 86 dB
n
•
FM tuner
Range of receivable frequencies 87.5 to 107.9 MHz(E3)
87.5 to 108.0 MHz(E2)
S/N ratio (mono) 65 dB
Sensitivity (S/N 30 dB) 9 dBµV (IHF)
•
AM tuner
Range of receivable frequencies 530 to 1710 kHz(E3)
522 to 1611 kHz(E2)
S/N ratio 40 dB
Sensitivity (S/N 20 dB) 55 dBµV/m
n
Clock method
Within 1 – 2 minutes per month
n
Network type (wireless LAN standards)
Conforming to IEEE 802.11b
Conforming to IEEE 802.11g
(Conforming to Wi-Fi
®
)z
Transfer rate
DS-SS: 11 / 5.5 / 2 / 1 Mbps (Automatic switching)
OFDM: 54 / 48 / 36 / 24 / 18 / 12 / 9 / 6 Mbps (Automatic switching)
Security
SSID (Network name)
WEP key (network key) (64/128 bits)
WPA-PSK (TKIP/AES)
WPA2-PSK (TKIP/AES)
Used frequency range
2,412 MHz – 2,462 MHz(E3)
2,412 MHz – 2,472 MHz(E2)
No. of channels
E3: Conforming to IEEE 802.11b : 11ch (DS-SS) (Of which 1 channel used)
Conforming to IEEE 802.11g : 11ch (OFDM) (Of which 1 channel used)
E2: Conforming to IEEE 802.11b : 13ch (DS-SS) (Of which 1 channel used)
Conforming to IEEE 802.11g : 13ch (OFDM) (Of which 1 channel used)
n
Power supply voltage/frequency AC 120 V, 60 Hz(E3)
AC 230 V, 50 Hz(E2)
Power consumption 65 W
Power consumption in standby mode 0.3 W(E3)/ 0.4 W(E2)
n

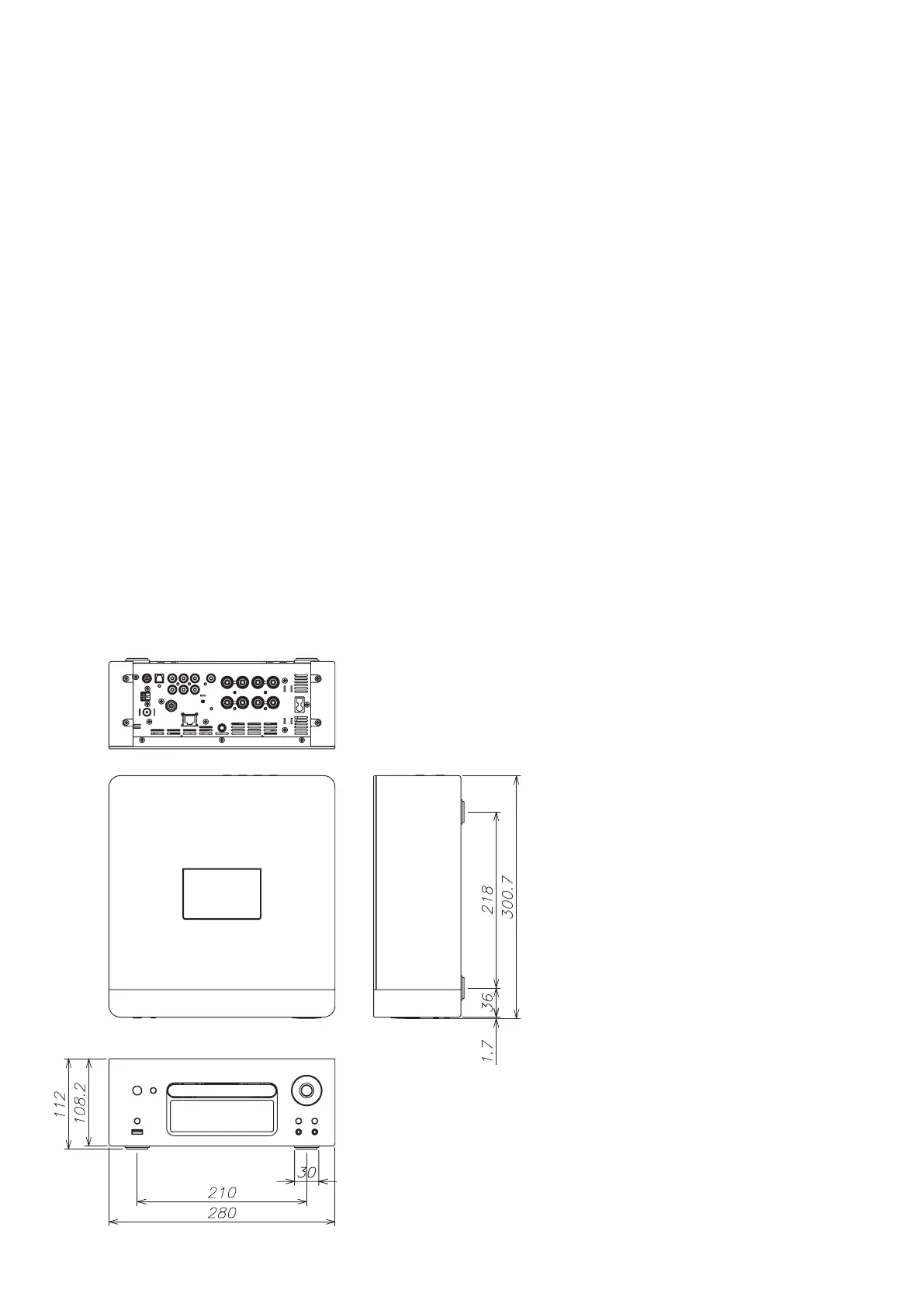

External dimensions
280 (W) x 112 (H)x 300.7 (D) mm
Weight 4.3 kg
