Denon RCD-N7 - Basic Operations; Unit Operation and Settings

17
6. SMPS PCB ASSY

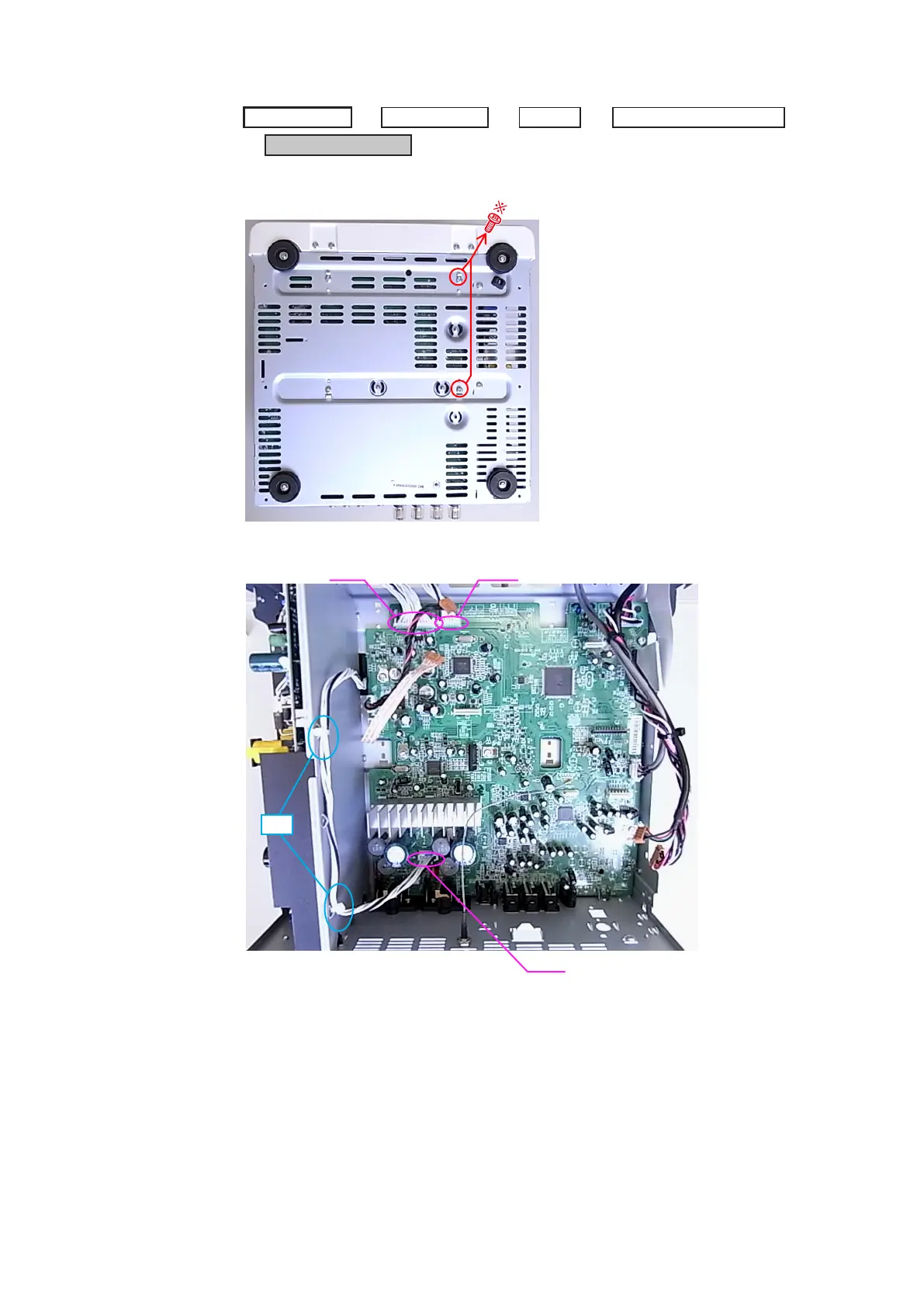

(1) Removethescrews.
(2) Cutthewireclampband,thendisconnecttheconnectorwires.
SIDE PANEL
TOP COVER
→
DOOR
→ →
FRONT PANEL ASSY
SMPC PCB ASSY
→
Proceeding :
View from bottom
CN45 CN43
CN61
cut
