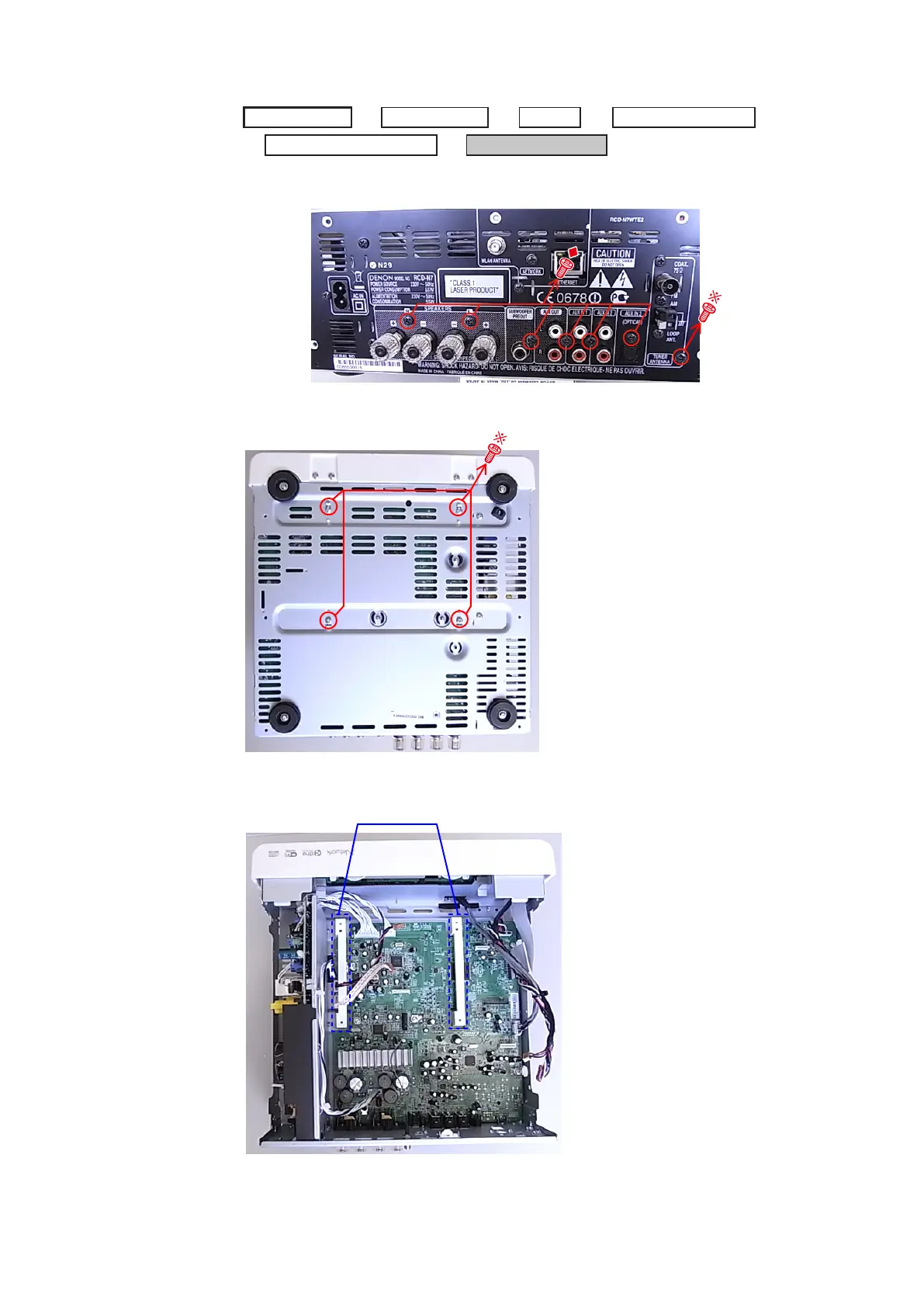

5. MAIN PCB ASSY
(1) Removethescrews.
(2) Removethescrews.
(3) RemovetheSUPPORTMECHA.
SIDE PANEL
TOP COVER
→
DOOR
→
CD MECHA ASSY
→
FRONT PANEL ASSY
→
MAIN PCB ASSY
→
Proceeding :
Direction of photograph: A
View from bottom
SUPPORT MECHA
