Denon RCD-N7 Service Manual

20
SPECIAL MODE
Special mode setting
Plug AC cord into power outlet while pressing buttons A and B.
Each button continue to press until the lit of ON/STANDBY.
No. Mode Button A Button B Contents
1
Initialization mode
(Factory Reset)
VOLUME UP
CURSOR
DOWN
Initializing. Factory Reset
2
Initialization mode
( User Reset)
VOLUME UP
VOLUME
DOWN
Initializing. (Contents User's Guide is published)
3 Version display CURSOR UP
-
Version Display
4 CD test mode
ON/
STANDBY
OPEN/
CLOSE
Servo adjustment, Leaser current, ON time
5 Heat Run mode
ON/
STANDBY
SOURCE Heat run
6 Product mode 1 VOLUME UP
CURSOR
RIGHT
Factory use.
7 Prodcut mode 2 VOLUME UP
CURSOR
LEFT
Factory use.
8 Protection history mode
CURSOR
RIGHT
VOLUME
DOWN
Protection history view and reset
9 Hidden serial number mode - - Factory use.
10 Update mode (by disc)
VOLUME
DOWN
CURSOR UP Development/Fuctory use. The details cannot be disclosed.
11 DPMS update mode SOURCE
OPEN/
CLOSE
DPMS Up date Mode
12 Update mode (by RS232C) PLAY/ PAUSE
CURSOR
LEFT
Development/Fuctory use. The details cannot be disclosed.
13 MAC Address rewrite mode PLAY/ PAUSE
CURSOR
DOWN
Development/Fuctory use. The details cannot be disclosed.
14 Update mode (display µ-com) PLAY/ PAUSE
CURSOR
RIGHT
Development/Fuctory use. The details cannot be disclosed.
15 Access to development server mode PLAY/ PAUSE
CURSOR
DOWN
Development/Fuctory use. The details cannot be disclosed.

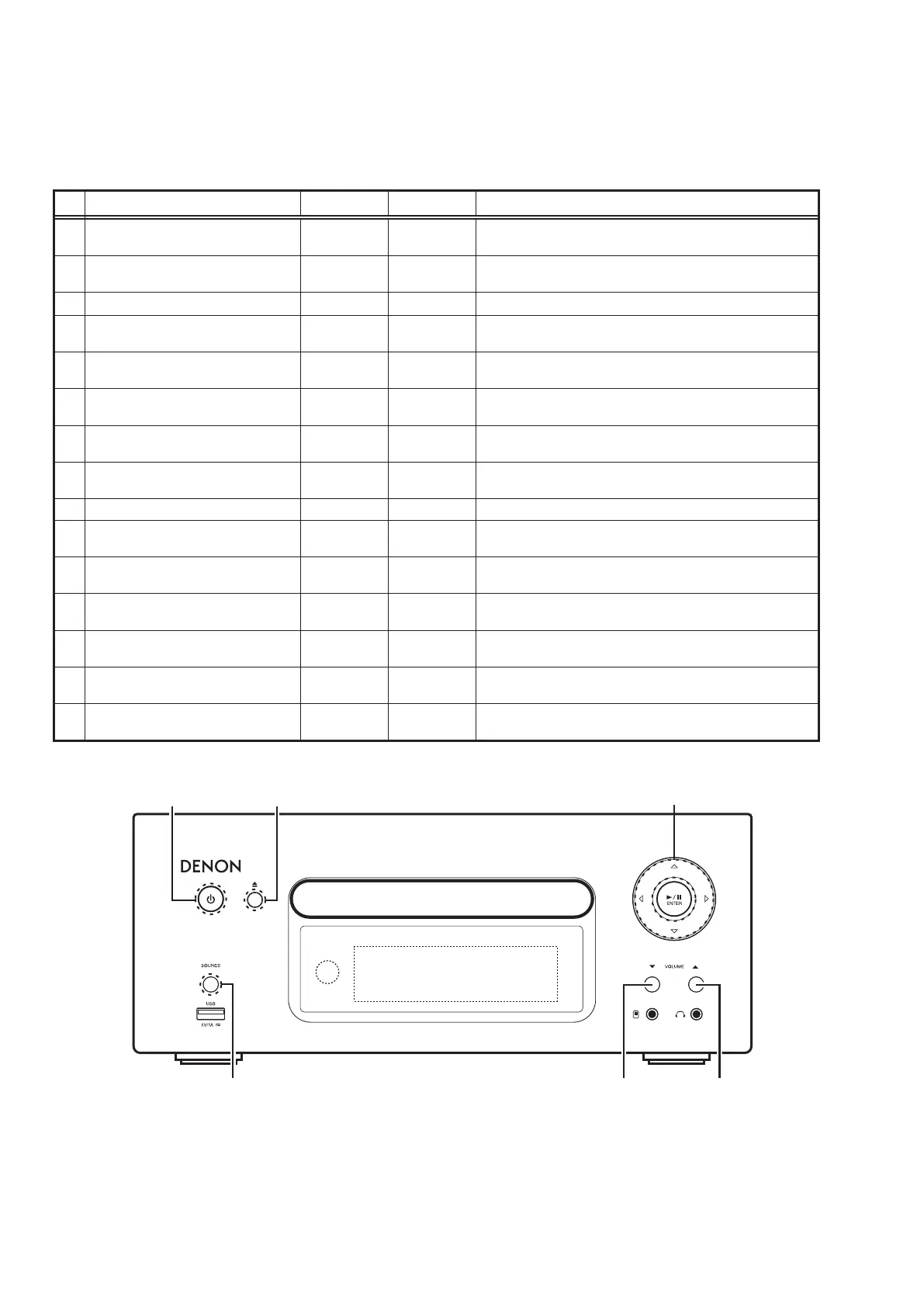

NETWORK CD RECEIVER RCD-N7
SOURCE
ON/STANDBY
5
VOLUME f
VOLUMEd
CURSOR
uiop

Denon RCD-N7 Specifications

General

Frequency range	5 - 20000 Hz
RMS rated power	65 W
Pre-out channels	1 SW
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	2.0 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.7 %
Dynamic power per channel (4 Ohm)	80 W
Power output per channel (20-20KHz@8 Ohm)	- W
Audio (L/R) in	2
Digital audio optical in	1
Headphone connectivity	3.5 mm
Connectivity technology	Wired & Wireless
Speakers connectivity type	Binding post
Audio formats supported	AAC, FLAC, MP3, WMA
Image formats supported	JPG
Video formats supported	AVI, WMV
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	99
Internet radio services supported	Last.fm, Napster
Optical drive type	CD player
Disc types supported	CD, CD-R, CD-RW
Display	OLED
Product color	Silver
Audio decoders	Not supported
Volume control	Rotary
Apple docking compatibility	iPhone, iPod
Number of products included	1 pc(s)
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.4 W

Weight and Dimensions

Depth	299 mm
Width	280 mm
Height	112 mm
Weight	4300 g
