Denon RCD-N7 Service Manual

30

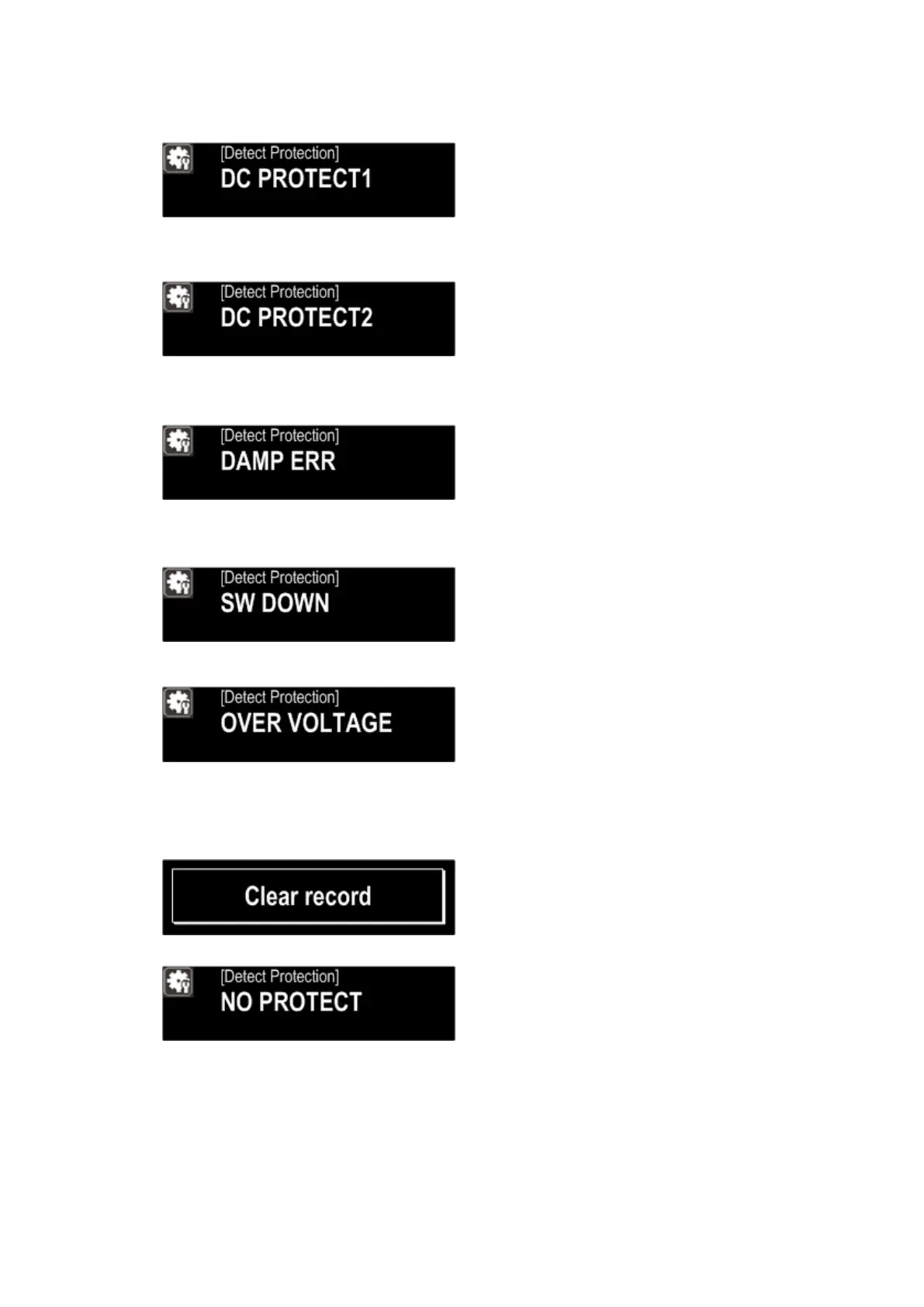

Potential difference across the terminal detects that the speaker was more than DC9V
DC protect 1
Overvoltage of +B/-B
DC protect 2
Short of '+B/-B
Over current
Over-current detection digital amplier
SubWoofer DC protect
Over voltage
Supply voltage is detected beyond the provisions
Protection history is reset.
When the Cursor
u
button is pressed for over 5 seconds while the protection history is displayed, the count value is
reset.
After the reset is complete, the display “No Protection“.
Protection history is not cleared, even when the set is reset (Factory/User).

Denon RCD-N7 Specifications

General

Frequency range	5 - 20000 Hz
RMS rated power	65 W
Pre-out channels	1 SW
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	2.0 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.7 %
Dynamic power per channel (4 Ohm)	80 W
Power output per channel (20-20KHz@8 Ohm)	- W
Audio (L/R) in	2
Digital audio optical in	1
Headphone connectivity	3.5 mm
Connectivity technology	Wired & Wireless
Speakers connectivity type	Binding post
Audio formats supported	AAC, FLAC, MP3, WMA
Image formats supported	JPG
Video formats supported	AVI, WMV
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	99
Internet radio services supported	Last.fm, Napster
Optical drive type	CD player
Disc types supported	CD, CD-R, CD-RW
Display	OLED
Product color	Silver
Audio decoders	Not supported
Volume control	Rotary
Apple docking compatibility	iPhone, iPod
Number of products included	1 pc(s)
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.4 W

Weight and Dimensions

Depth	299 mm
Width	280 mm
Height	112 mm
Weight	4300 g
