59 / 84

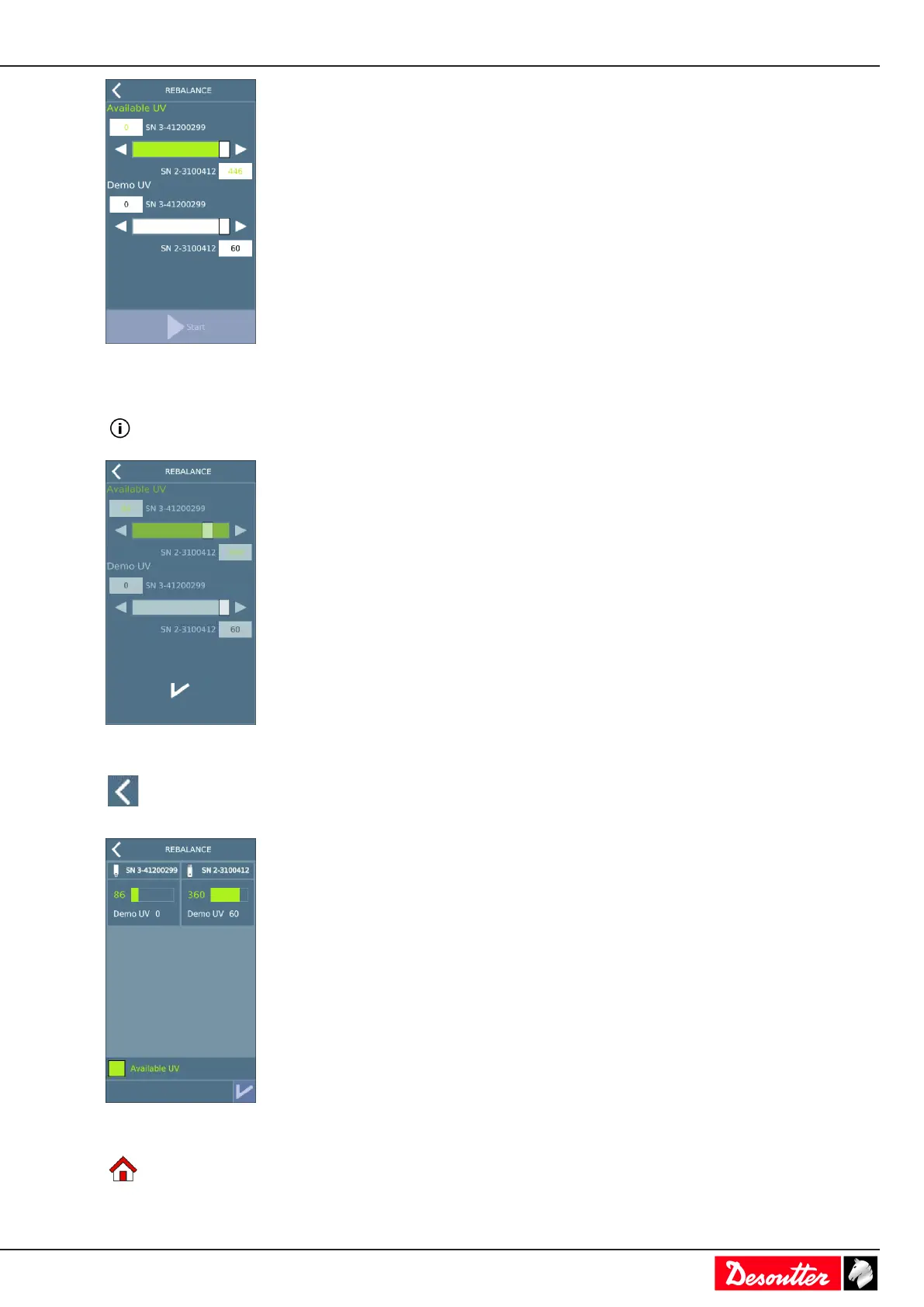

Tap the box "0" of the RIM or slide the cursor to fill in the box with UV.
Press the button "Start".
Reminder
86 UV are needed to activate one tightening unit.
The white tick indicates the transfer is done.
Tap this icon to quit.
See that 86 UV are available in the RIM.
Tap this button on the front panel to display the start screen.
58
60
